15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch

15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch
15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch

Large Image :  15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000/FCC, CE, ROHS
Model Number: DX156
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 3000K pcs per month

15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch

Description
Product: 15.6-Inch Portable Monitor Resolution: 1920*1080 Dots
Display Area: 344mm * 194mm Panel Type: IPS
Input Interface:: USB,HD, VGA, Refresh Rate: 60Hz
Brightness:: 400cd/m² Net Weight:: 1450g
Packing Size:: 400mm * 310mm *110mm Touch Type: Capacitive Touch Screen
Touch Interface: USB
Highlight:

15.6-Inch Capacitive Touchscreen Display

,

Industrial Metal Touchscreen Display

,

Full HD Capacitive Touch Display

15.6-inch Metal Touchscreen Display - Full HD 1920×1080 IPS Panel, 10-Point Capacitive Touch, Industrial-Grade Durability

Product Highlights - Key Features

I. Hardware & Display Performance
Ultra-HD Visuals: 1920×1080 IPS panel with 16.7M colors delivers sharp, true-to-life imagery—ideal for industrial monitoring and commercial displays. 800:1 contrast, 400 cd/m² brightness, and 178° wide viewing angle ensure clarity in bright or multi-user scenarios.
Responsive Touch: 10-point capacitive touch (5ms response) enables intuitive finger operation, perfect for high-frequency interactions like industrial control or self-service terminals.



II. Structural & Industrial Design
Robust Metal Build: Rugged metal housing resists wear and impact, suited for industrial, outdoor, or high-traffic commercial use. Compact (363×226×36mm, 1.45kg) balances portability and strength.

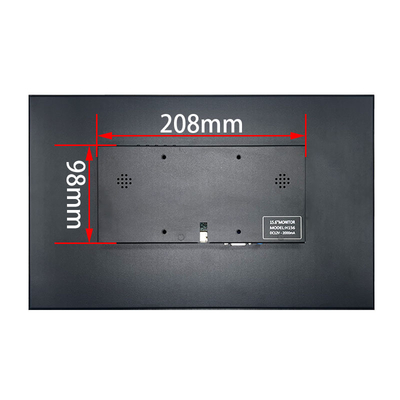

Flexible Installation: Supports wall-mount (75×75mm) and desktop setups for easy integration into diverse environments.
Extreme Environment Reliability: Operates stably in -10°C~60°C temperatures and ≤80% humidity, reliable for workshops, outdoor kiosks, or humid spaces.



III. Interface & Compatibility

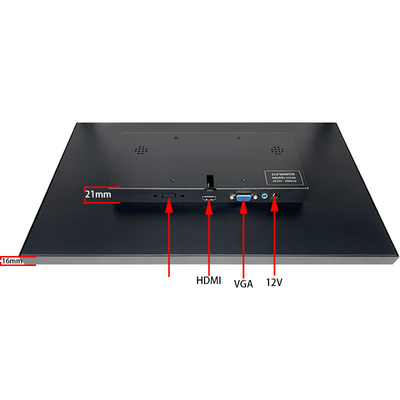

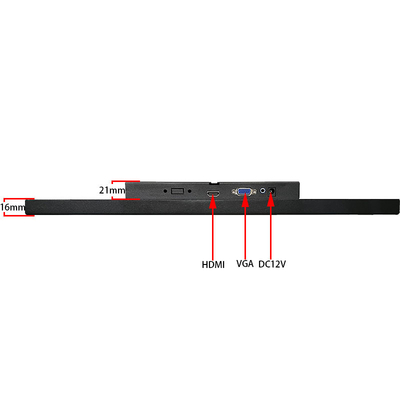

Comprehensive Connectivity: HDMI, VGA (video input), USB 2.0 (touch), and DC 12V 1A ports ensure broad device compatibility; optional interfaces allow custom expansion.
Multi-Industry Adaptability: Excels in industrial control, commercial displays (kiosks/advertising), and home use (secondary screens). Energy-efficient (10W) with long-lasting LED backlighting, merging performance and cost-effectiveness.

Product Parameters

Parameter Details
Screen Specification 15.6 inches
Backlight Type LED Backlight
Screen Aspect Ratio 16:9
Resolution 1920*1080
Input Power DC 12V 1A
Touchscreen Capacitive 10-point Touch
Operating Temperature -10℃ to 60℃
Operating Humidity ≤80%
Product Certification None
Installation Method Wall-mounted, Desktop
Reference System No system
Response Time 5ms
Contrast Ratio 800:1
Display Brightness 400 (cd/m²)

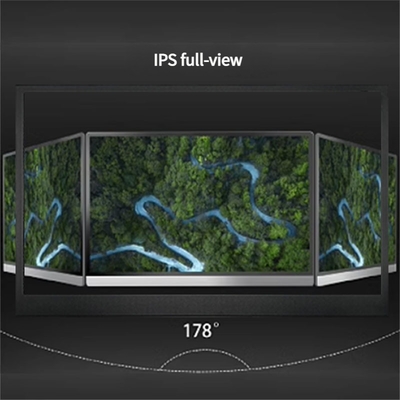

Viewing Angle 178°/178°
Panel Type IPS
Display Colors 16.7M
Touch Method Finger
Touch Interface USB Interface
Monitor Input VGA, HDMI
Applicable Industries Industrial, Commercial, Household
Overall Power Consumption 10W


Unit: mm

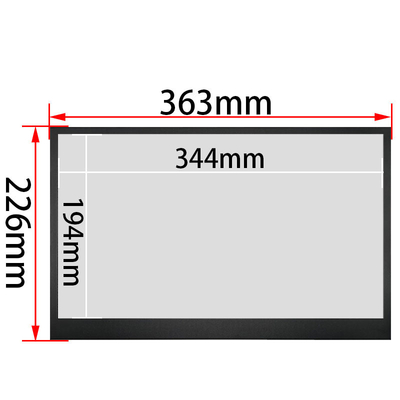

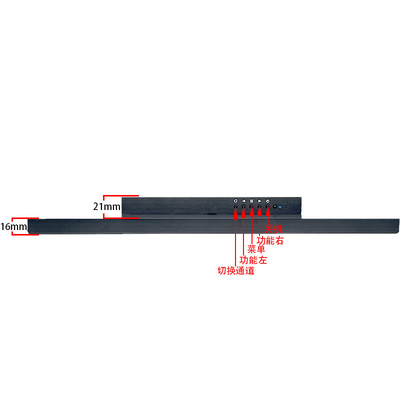

Mechanical Outline Drawing
 15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 015.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 115.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 215.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 315.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 4

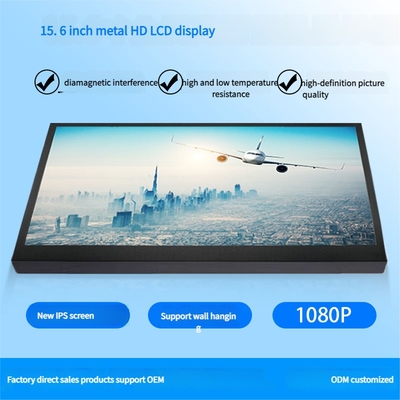

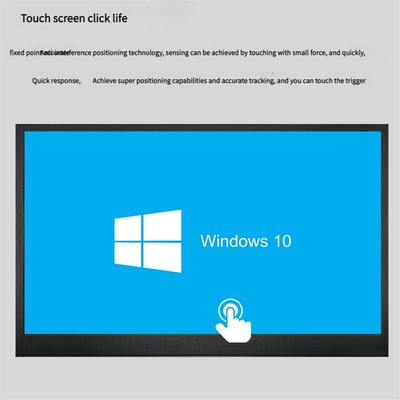

Product Details

15.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 515.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 615.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 715.6-Inch Industrial-Grade Metal Touchscreen Display Full HD 1920x1080 IPS Panel with 10-Point Capacitive Touch 8


Use Cases

Industrial control and automation scenarios

  • Workshop equipment monitoring: Due to its industrial applicability and an operating temperature range of -10°C to 60°C, it can adapt to the complex environment of factory workshops. Workers can use the monitor to view real - time operating parameters and status information of production equipment. The 10 - point capacitive touch function enables them to conveniently operate and control the equipment, and adjust the operating status of the equipment in a timely manner, thereby improving production efficiency and quality.
  • Automated production line operation: Its wall - mounted and desktop installation methods make it easy to deploy at different positions on the production line. By connecting to the control system through VGA, HDMI and other interfaces, operators can use finger touch to program, debug and monitor the production line to ensure the stable operation of the production line.

Commercial display and interactive scenarios

  • Mall guidance and display: In shopping malls and shopping centers, it can be used as a product display and guidance device. With a resolution of 1920 * 1080, a display brightness of 400 (cd/m²) and a viewing angle of 178°/178°, it can clearly display product information, promotional videos and other content to attract customers' attention. The 10 - point capacitive touch function allows customers to independently query product details, store locations, etc., providing a good interactive experience.
  • Restaurant ordering system: It is suitable for use as an ordering device in restaurants. Merchants can display the menu on the monitor in an intuitive and vivid form. Customers can select dishes, add remarks, etc. by touch, improving the ordering efficiency and reducing the workload of waiters.

Home entertainment and office scenarios

  • Home theater: At home, it can be used as a display device for a small home theater. The HDMI interface makes it easy to connect to TV boxes, game consoles and other devices. The 16:9 screen ratio and high resolution can present an excellent visual effect, bringing an immersive viewing and gaming experience to users.
  • Daily office work: It can be used as a computer monitor to meet daily office needs. The 10 - point capacitive touch function facilitates users to operate documents, draw by touch, etc., improving the convenience and efficiency of office work. Especially for users who need to frequently perform graphic processing, handwritten annotations and other tasks, it can better play its advantages.

Package Contents

  • 1x 15.6-inch Touch Portable Monitor
  • 1x USB-C to USB-C Cable (for power/video)
  • 1x HDMI to HDMI Cable
  • 1x Power Adapter (12V/1A)
  • 1x User Manual
