The SFTO1560BD-7246A3N is a high-performance 15.6-inch Full HD (FHD) high-brightness TFT display module designed for industrial, outdoor, and rugged environments. Key features include:
1. Ultra-Bright Display for Any Lighting Condition
1000 nit brightness: Ensures clear visibility under direct sunlight or extreme outdoor lighting.
FHD 1920x1080 resolution: Delivers sharp, accurate RGB vertical stripe pixel alignment with 16.7M color depth (6bit + FRC) for precision applications.
2. Industrial-Grade Durability
Wide operating temperature: Functions reliably from -20°C to +70°C, ideal for harsh environments like factories, vehicles, or outdoor equipment.
Anti-glare & scratch-resistant surface: 3H hard coating reduces glare and resists scratches, enhancing outdoor readability.
Rigorous testing: Passes 240-hour high-temperature/humidity (60°C, 90%RH) and thermal shock (100 cycles between -30°C and +80°C) tests for long-term reliability.
3. Flexible Interface & Dimming Control
30-pin eDP interface: Simplifies integration with embedded systems.
PWM backlight dimming: Adjustable frequency (190Hz–2kHz) for optimal brightness control in varying light conditions.
LED driver optimization: Built-in converter with up to 31V output voltage and multi-channel current balancing extends backlight lifespan.
4. Versatile Applications
Industrial automation: PLCs, control panels, medical monitors.
Outdoor digital signage: Bus stops, retail POS displays, kiosks.
Automotive systems: GPS navigation, vehicle infotainment, surveillance screens.
Specialized environments: Military, aviation, port equipment.
5. Compliance & Efficiency
RoHS compliant: Lead-free materials meet EU environmental standards.
Low power consumption: Typical power draw of 0.891W balances energy efficiency and performance.
Request a Sample: Contact our EU/US support team at sales2@saef.com.cn for standard CTP solutions (suitable for outdoor use, industrial grade) and customization options.
Specifications
| Item |
Specification |
Unit |
| Screen Size |
15.6” diagonal |
|
| Driver Element |
a-si TFT active matrix |
- |
| Pixel Number |
1920 x R.G.B. x 1080 |
pixel |
| Pixel Pitch |
0.17925 (H) x 0.17925 (V) |
mm |
| Pixel Arrangement |
RGB vertical stripe |
- |
| Display Colors |
16.7 m |
color |
| Transmissive Mode |
Normally Black |
- |
| Surface Treatment |
Hard coating (3H), Anti-Glare |
- |
| Power Consumption |
Cell 0.891W(Max.) |
- |
|
Operating Temperature
|
-20°C to +70°C |
°C |
|
Storage Temperature
|
-30°C to +80°C |
°C |
External Dimensions
Interface Pin Definition
| Pin |
Symbol |
Description |
| 1 |
NC |
No Connection (Reserved for LCD test) |
| 2 |
H_GND |
High Speed Ground |
| 3 |
ML1- |
Complement Signal-Lane 1 |
| 4 |
ML1+ |
True Signal-Main Lane 1 |
| 5 |
H_GND |
High Speed Ground |
| 6 |
ML0- |
Complement Signal-Lane 0 |
| 7 |
ML0+ |
True Signal-Main Lane 0 |
| 8 |
H_GND |
High Speed Ground |
| 9 |
AUX+ |
True Signal-Auxiliary Channel |
| 10 |
AUX- |
Complement Signal-Auxiliary Channel |
| 11 |
H_GND |
High Speed Ground |
| 12 |
VCCS |
Power Supply +3.3V(typical) |
| 13 |
VCCS |
Power Supply +3.3V(typical) |
| 14 |
NC |
No Connection (Reserved for LCD test) |
| 15 |
GND |
Ground |
| 16 |
GND |
Ground |
| 17 |
HPD |
Hot Plug Detect |
| 18 |
BL_GND |
BL Ground |
| 19 |
BL_GND |
BL Ground |
| 20 |
BL_GND |
BL Ground |
| 21 |
BL_GND |
BL Ground |
| 22 |
LED_EN |
BL_Enable Signal of LED Converter |
| 23 |
LED_PWM |
PWM Dimming Control Signal of LED Converter |
| 24 |
NC |
No Connection (Reserved for LCD test) |
| 25 |
NC |
No Connection (Reserved for LCD test) |
| 26 |
LED_VCCS |
BL Power |
| 27 |
LED_VCCS |
BL Power |
| 28 |
LED_VCCS |
BL Power |
| 29 |
LED_VCCS |
BL Power |
| 30 |
NC |
No Connection (Reserved for LCD test) |

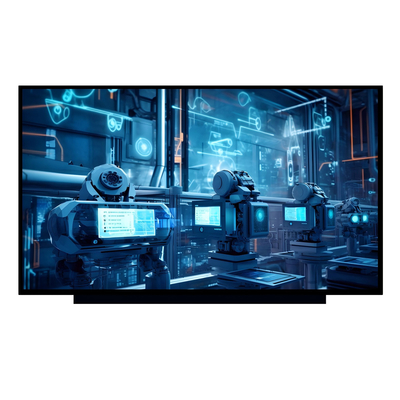

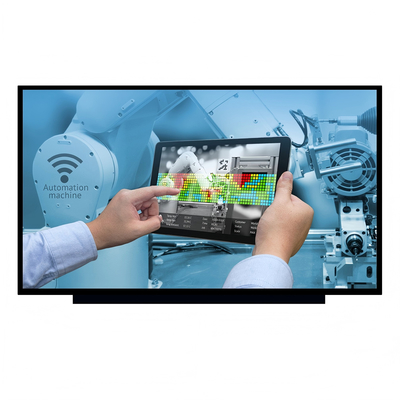

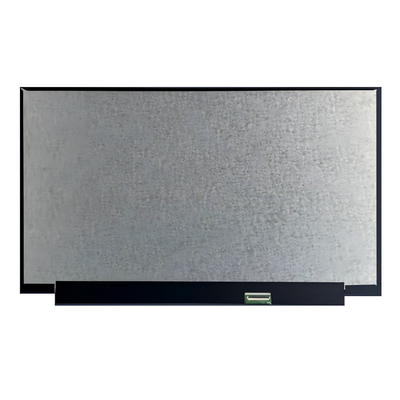

Product Image
