Product Details:
|
| Product: | 2.2 Inch TFT Display | Resolution: | 200x480 Dots |
|---|---|---|---|
| Touch Screen: | Without | Viewing Direction: | IPS All Viewing Angles |
| Interface: | MIPI | Pin Number: | 20 Pins |
| Connection: | ZIF | Surface Luminance: | 570 Cd/m2 |
| Driver IC: | ST7797 | Operating Temp。: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 200x480 IPS TFT LCD Display Module,Slim IPS TFT LCD Display Module,2.2-Inch TFT LCD Display |
||
Mechanical Drawing
![]()
Interface Pin Definition
|
Pin No. |
Symbol |
I/O |
Description |
| 1 | GND | P | Ground |
| 2 | TP_VDD | P | CTP Analog power supply |
| 3 | TP_SCL | I | I2C Serial Clock |
| 4 | TP_SDA | I | I2C Serial Data |
| 5 | TP_RST | I | CTP RERSET TERMINAL ACITVE ” L ” |
| 6 | TP_INT | O | External interrupt INT to the host, It is active low when finger touching on the screen |
| 7 | NC | - | - |
| 8 | GND | P | Ground |
| 9 | MIPI-D1N | I | Differential data signals of MIPI interface |
| 10 | MIPI-D1P | I | Differential data signals of MIPI interface |
| 11 | GND | P | Ground |
| 12 | MIPI-CN | I | Differential clock signals of MIPI interface |
| 13 | MIPI-CP | I | Differential clock signals of MIPI interface |
| 14 | GND | P | Ground |
| 15 | VCI | P | Power supply to the internal Analog |
| 16 | IOVCC | P | Power supply to the internal I/O. |
| 17 | RESET | I | Reset signal pin |
| 18 | GND | P | Ground |
| 19 | LEDK | P | Power supply Cathode input for backlight |
| 20 | LEDA | P | Power supply Anode input for backlight |
Absolute Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
| Operating temperature | Top | -20 | 70 | °C |
| Storage temperature | Tst | -30 | 80 | °C |
| Humidity | RH | / | 90%(Max60.C) | RH |
| Power Voltage | VCI | -0.3 | 4.6 | V |
DC Characteristics
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
| Supply voltage for logic | VCI | 2.65 | 2.8 | 3.3 | V |
| I/O power supply | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input Current | Idd |
- |
TBD | TBD | mA |
| Input voltage‘H’level | VIH | 0.7*IOVCC |
- |
IOVCC | V |
| Input voltage‘L’level | VIL | 0 |
- |
0.3*IOVCC | V |
| Output voltage‘H’level | VOH | 0.8*IOVCC |
- |
IOVCC | V |
| Output voltage‘L’level | VOL | 0 |
- |
0.2*IOVCC | V |
Backlight Characteristics
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
Condition |
| Forward voltage | Vf | 2.9 | 3.1 | 3.3 | V | If= 80mA |
| BL Luminance | Lv | - | - | - | cd/m2 | |
| Backlight uniformity | No less than 80% | |||||
| Number of LED LED |
- |
4 | Piece | |||
| Connection mode | S/P/M | In parallel |
- |
|||
Optical Characteristics
| Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
|
LCM Surface Luminance |
Lv | -- | 470 | 570 | -- | cd/m2 | |
| Contrast Ratio | CR | -- | 900 | 1000 | -- | -- | |
| Response time | Tr+Tf | -- | -- | 35 | 40 | msec | |
| Color gamut | S(%) | -- | -- | -- | % | ||
|
Viewing angle |
Ver.+Hor |
CR≧10 |
-- | 160 | -- |
deg |
|

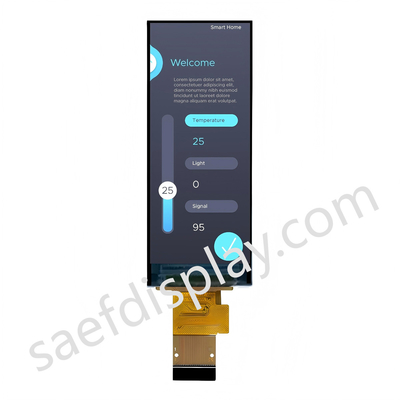

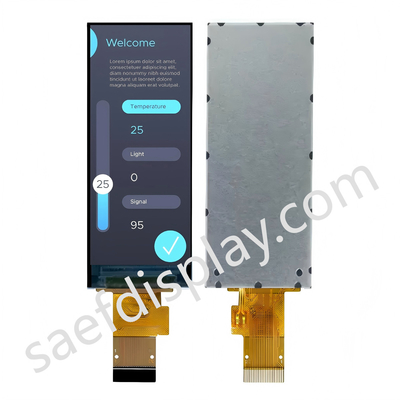

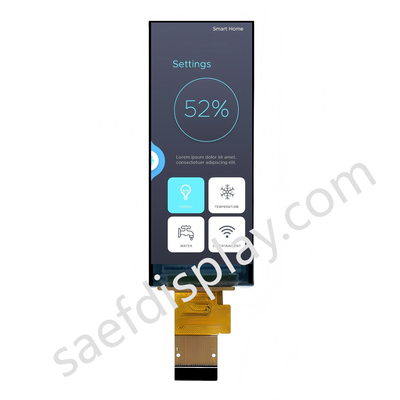

Product Image
![]()
![]()
