Product Details:
|
Product: | 2.88" Inch VGA MIPI TFT LCD | Resolution: | 480x640 Pixels |
---|---|---|---|
Viewing Direction: | IPS All Viewing Angles | Touch Screen: | W/O Touch, Resistance And PCAP Touch Optional |
Cover Lens: | Customizable | Surface Luminance: | 450 Cd/m2 ( Customizable) |
Interface: | 2 Lane MIPI | Pin Number: | 21 Pins |
Outline Dimension: | 46.2 X 64.98 X 1.61 Mm | Connection: | Plugging / ZIF ( Customizable) |
Driver IC: | JD9161Z | Operating Temp.: | -20℃ To +70℃ |
Life Time: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | 2.88" IPS Display Module,VGA IPS Display Module,480x640 LCD 21 Pins |
2.88" Inch 480x640 VGA TFT LCD With 2 Lane MIPI Interface 21 Pins For Medical Equipment Front Screen
VGA 2.88" LCD, 2.88 inch MIPI TFT LCD Description
SAEF TECHNOLOGY SF-TO288AS-8983A-N TFT LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.88” contains 480(RGB)X640 dots resolution (480 horizontal by 640 vertical pixels array) and it can display up to 16.7M colors.
SF-TO288AS-8983A-N supports 2 lane interface. the supply voltage (VCC) of driving LCD panel is from is 2.4V to 3.3V. Typical value is 2.8V. It can be used in embedded systems, automation, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image. SF-TC300D-8974A-CT is a IPS-LCD type TFT with brightness 450 cd/m2 (typical value). the brightness can be custom designed to 1500 nits for some application does not need high brightness. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Product: | 2.88" Inch VGA MIPI TFT LCD | Resolution: | 480x640 Pixels |
---|---|---|---|
Viewing Direction: | IPS All Viewing Angles | Touch Screen: | W/O Touch, Resistance And PCAP Touch Optional |
Cover Lens: | Customizable | Surface Luminance: | 450 Cd/m2 ( Customizable) |
Interface: | 2 Lane MIPI | Pin Number: | 21 Pins |
Outline Dimension: | 46.2 X 64.98 X 1.61 mm | Connection: | Plugging / ZIF ( Customizable) |
Driver IC: | JD9161Z | Operating Temp.: | -20℃ To +70℃ |
Life Time: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
VGA 2.88" LCD, 2.88 inch MIPI TFT LCD Drawing

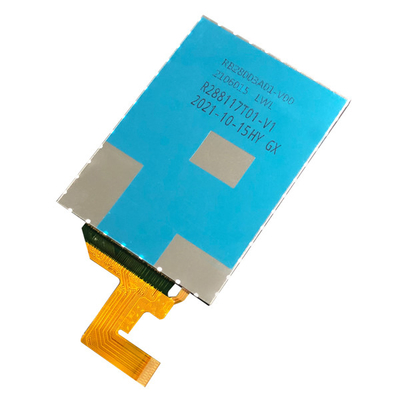

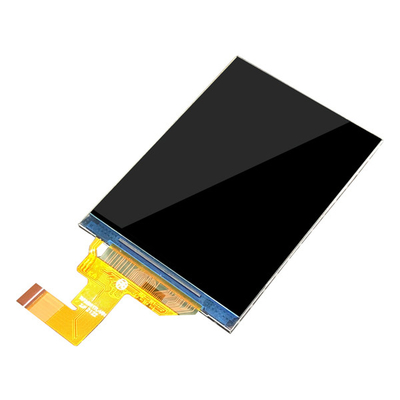

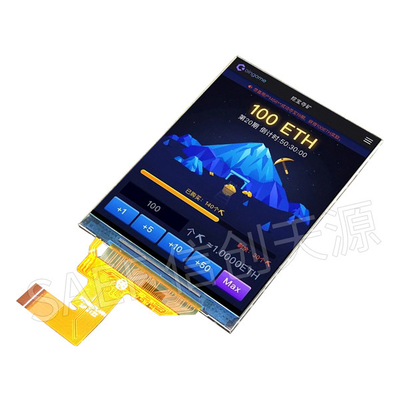

VGA 2.88" LCD, 2.88 inch MIPI TFT LCD Real Product Image
FACTORY AND FACILITIES
Search keyword: tft 2.88", 2.88 tft lcd, 2.88" tft lcd, 2.88 inch tft lcd, tft lcd 2.88, 2.88 tft display, 2.88" tft display, 2.88 inch tft display, tft display 2.88 inch, tft display 2.88", 2.88 inch tft lcd display, 2.88" tft screen, 2.88 inch tft screen, tft screen 2.88 inch, tft screen 2.88", 2.88 inch tft lcd screen, VGA MIPI TFT LCD, MIPI 2.88 inch, 2.88 inch IPS, 2.88 inch VGA LCD
