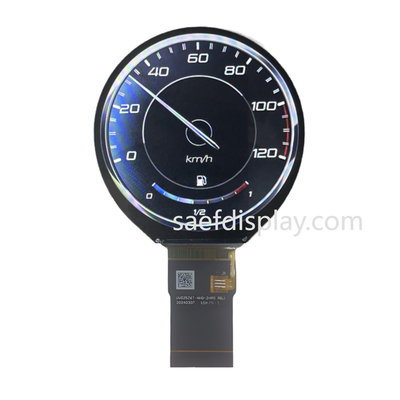

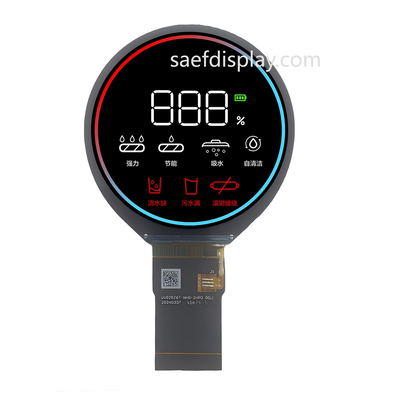

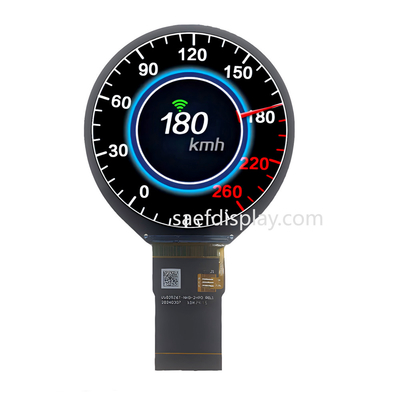

Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen

Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen
Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen

Large Image :  Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO248XC-7204AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen

Description
Product: 2.48 Inch Circular TFT Display Resolution: 480 (RGB) X 480 Dots
Surface Luminance: 500 Cd/m2 (nits) Touch Screen: Available / Optional
Viewing Direction: IPS Full Viewing Angle Driver IC: ST7701S
Pin Number: 40 Pins Connection: ZIF
Interface: 3SPI+18RGB LED Lifetime: 40,000 Hours
Top:: -20°C To +70°C Compliance: REACH & RoHS Compliant
Highlight:

Round 2.8 Inch Tft Display

,

Automotive Grade Circular LCD Screen

,

2.8 inch Circular LCD Screen

Datasheet Download

SFTO248XC-7204AN Specification.pdf





Product Introduction: 2.8-Inch Automotive Grade Circular TFT Display SFTO248XC-7204AN

Overview

Introducing our state-of-the-art 2.8-inch automotive grade TFT display SFTO248XC-7204AN, specifically designed for versatility and durability in vehicle applications. The circular LCD screen features a high-resolution 480x480 pixel display, providing crystal-clear graphics and vibrant colors. With its advanced SPI+RGB interface, this display is engineered for seamless integration into automotive systems.

Key Features

  • Display Type: 2.8-Inch TFT (Thin-Film Transistor) LCD
  • Resolution: 480 x 480 pixels
  • Shape: Circular design suitable for various dashboard and infotainment applications
  • Interface: Supports SPI (Serial Peripheral Interface) and RGB (Red, Green, Blue) communication for easy connectivity
  • Operating Voltage: Compatible with standard automotive voltage ranges, ensuring stability and reliability
  • Automotive Grade: Designed to meet stringent automotive standards for temperature, humidity, and vibration, ensuring performance in harsh environments
  • Brightness: High brightness levels for excellent visibility in direct sunlight
  • Viewing Angle: Wide viewing angles allowing for clear visibility from different perspectives
  • Touchscreen Capability: Optional touch functionality available for interactive applications

Applications

  • Infotainment Systems: Ideal for displaying navigation maps, music controls, and other multimedia content.
  • Dashboard Displays: Can be utilized for speedometers, fuel gauges, and other critical vehicle information.
  • Aftermarket Upgrades: Perfect for custom automotive projects and upgrades, providing a modern interface for classic vehicles.
  • Marine and Off-road Vehicles: Suitable for rugged environments thanks to its durable design and automotive-grade specifications.

Technical Specifications

  • Dimensions: (Exact dimensions of the display)
  • Weight: (Weight specifications)
  • Operating Temperature: -20°C to 70°C, ensuring performance in extreme conditions
  • Storage Temperature: -30°C to 80°C
  • Backlight Type: LED backlight for enhanced brightness and contrast, surface brightness can be 1000 nits.
  • Power Consumption: Low power requirements to minimize energy draw from vehicle systems

Benefits

  • Enhanced User Experience: High-quality visuals improve user engagement and interaction with vehicle systems.
  • Durable and Reliable: Built to withstand the rigors of automotive applications, ensuring long lifespan and performance.
  • Easy Integration: Compatible interfaces and robust design facilitate simple integration into existing systems.
  • Customizable Options: Flexible design allows for various configurations to meet specific customer requirements.

Conclusion

Our 2.8-inch automotive grade circular TFT display SFTO248XC-7204AN is a cutting-edge solution for modern automotive needs, offering exceptional quality, performance, and durability. Whether for new vehicle manufacturing or aftermarket upgrades, this display is designed to elevate the driving experience with advanced technology and superior visuals.



For more information about this product or to place an order, please contact us today!



Features

Feature Specifications







Display Spec.

LCD type 2.48 inch
Resolution (H*V) 480(RGB)×480
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Viewing Direction ALL
Gray Scale Inversion Direction -







Mechanical

Characteristics

Outline Dimensions (W x H x T) (mm) 65.87*69.04* 1.85
Active Area(mm) 62.93*62.93
CTP View Area(mm) /
With /Without Touch screen Without
Connector Type 0.5 pitch 40pin
Backlight Type LED
Weight (g) TBD



Electrical

Characteristics

Display Interface 3SPI+18RGB
Number of color 262K
Display Driver IC ST7701S






Mechanical Drawing

Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen 0

Pin Assignment



1 LED A LED ANODE
2 LED K LED CATHODE
3 LED K LED CATHODE
4 GND Ground
5 VCI Power supply
6 RESET Reset Signal ,Active Low
7 NC NC
8 NC NC
9 SDA SPI Data signal
10 SCK SPI Clock signal
11 CS SPI Chip select signal
12 PCLK RGB dot clock signal
13 DE RGB data enable signal
14 VSYNC RGB frame synchronizing signal
15 HSYNC RGB line synchronizing signal
16~33 DB0~DB17 RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB)
34 GND Ground
35 TP_INT Touch Interrupt
36 TP_SDA Touch IIC Data signal
37 TP_SCL Touch IIC Clock signal
38 TP_RESET Touch Reset Signal
39 TP_VCI Touch Power supply
40 GND Ground





Absolute Maximum Ratings



Item Symbol Value Unit
Power supply voltage for logic VDD 0.3~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C





Electrical Characteristics



Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 2.5 2.8 3.3 V -
Supply current IDD - - 50 mA VDD=2.8V,Ta=25.C
Input voltage VIH 0.8VDD - VDD V



-

VIL 0 - 0.2VDD V
Input leakage current IIL -1.0 - 1.0 μA VIN=VDD or VSS





Driving Backlight



Item Symbol Min Typ Max Unit
Forward Current IF -- 20 -- mA
Forward Voltage VF - 19.2 - V
Connection mode   -- 6S --
LED number /   6   pcs
LED Lifetime   40000 50000





Optical Characteristics



Item Symbol Condition Min Typ Max Unit

View Angles

θT





CR≥10

80 85 -

Degree

θ B 80 85 -
θ L 80 85 -
θ R 80 85 -
Contrast Ratio CR θ=0° 800 1000

-

-

Response Time TON 25℃

-

30 35

ms

TOFF
Uniformity U

-

67 72

-

%
NTSC

-

-

-

70

-

%
Luminance L

-

500

-

cd/m2





Product Image
Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen 1Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen 2Automotive Grade 2.8 Inch Tft Display SPI+RGB Interface 480*480 Round Circular LCD Screen 3
