2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits
2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits

Large Image :  2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC240H-8269B-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits

Description
Product: 2.4 Inch IPS TFT Display Touch Screen: Resistive Touchscreen
Resolution: 240*320 Viewing Direction: All Viewing Angles
Interface: MCU (Customizable) Pin Number: 25 Pins (Customizable)
Connection: Plug-in (Customizable) Surface Luminance: 800 Cd/m2 (Customizable)
Driver IC: ST7789V LED Lifetime: 40,000 Hours
Operating Temp.: -20°C To +70°C Compliance: REACH & RoHS Compliant
Highlight:

2.4 Inch TFT LCD Display

,

240X320 Resistive Touchscreen Module

,

800nits IPS TFT LCD Display

SF-TC240H-8269B-T SPECIFICATION (2019-12-12) _20...

Description

SAEF TECHNOLOGY SF-TC240H-8269B-T is a IPS type TFT LCD display with a diagonal size of 2.4 inches. Its display resolution is 240x320 QVGA, and due to the use of IPS technology, the product has an 80 degree viewing angle from any direction. The external dimensions of this product are 60.26 * 42.72 * 3mm, using ST7789V driver IC and MCU interface. The working temperature range of this product is -20 ° C to+70 ° C, which can meet the requirements of the vast majority of product applications. This product is equipped with a resistive touch screen (RTP), which is more convenient to use and provides a very good user experience.



Feature



Type:
2.4 Inch TFT IPS LCD
Display Size:
60.26 * 42.72 * 3mm
Place of Origin:
Guangdong, China
Brand Name:
SAEF display
Brightness:
800 nits
resolution ratio:
240X320
interface type:
MCU
Operating Voltage:
2.8V
Viewing Angle:
All Viewing Angles
Backlight:
four LED lights
Controller IC:
ST7789
Operating Temperature:
-20°C-+70°C
Storage Temperature:
-30°C-+80°C




Application
This 2.4” TFT LCD module is widely used in remote control, medical handheld device, small measuring instrument, analyzers, smart watch, wearable devices, etc.


Drawing

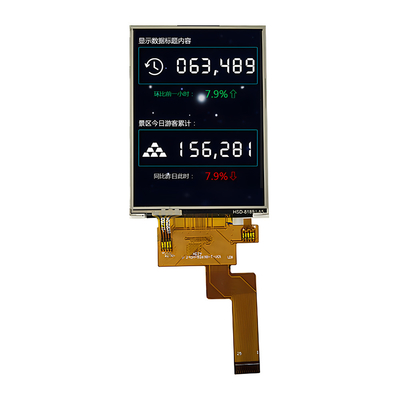

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 0

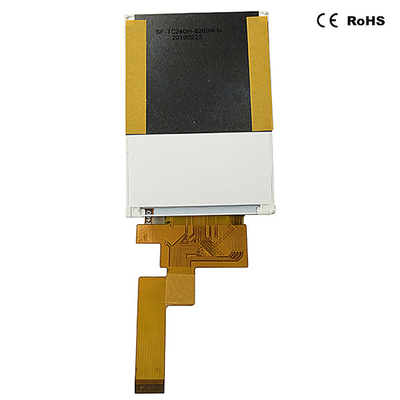

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 1
PIN Description


NO. PIN NAME I/O Description
1 LED_K O LED Cathode
2 LED_A O LED Anode
3 GND I Ground
4 VCC I Power Supply 2.8V Voltage
5 IOVCC I Power Supply 2.8V/1.8V Voltage
6 FMARK O Tear effect output pin
7 /CS I Input pin for chip selection signal
8 RESET I LCM Reset input signal
9 RS I Register select signal
10 /WR I Write strobe signal input pin
11 /RD I Read strobe signal input pin
12 GND I Ground
13-20 DB7-DB0 I/O Display Data I/O
21 GND I Ground
22 XR O Touch Panel Pin
23 YD O Touch Panel Pin
24 XL O Touch Panel Pin
25 YU O Touch Panel Pin


Maximun Absolute Limit


Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C


LED Backlight specifications


Item Symbol MIN TYP MAX UNIT

Test
Condition

Supply Voltage Vf 3.0 3.2 3.4 V If=80mA
Supply Current If - 80 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd -   - mW -
Luminous Intensity for LCM


-

- 800 - Cd/m2 If=80mA
Uniformity for LCM - 80 - - If=80 mA
Backlight Color White


Resistive Touchscreen Specifications


Item Symbol Min. Type. Max. unit Remark
TransParency - - 82 - % JIS K-7105
Haze - - 1 - % JIS K-7105
Hardness Of Surface - - 3 - H 150gf 45°
FPC Peeling Strength - 5   - N Upward 90°
FPC Bending - - 3 - cycle R=1.0, 90°
Input Force - -   50 gf -
Rated Voltage V touch     7 V DC
X-axis Resistance Rx 300   900   FPC PIN
X-axis Resistance Ry 200   500
Linearity - - ±1.5 ±2.0 % -
Chattering - - - 20 ms -
Insulation Resistance Ri 10 - - -
Notes Life - 100,000 - - Times -
Input Life - 1,000,000 - - Times -


Optical Characteristics


No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃ - 15 - Ms
2 Transmittance (With PL) T(%) - - 7.1 - -
3 Contrast Rate Cr

θ=0,
Normal viewing angle

- 250 - -
4

Viewing
Angle


Hor. θR CR>10 - 80 - Deg
θL - 80 -
Ver. Θ+ - 80 -
Θ- - 80 -


Product Photo

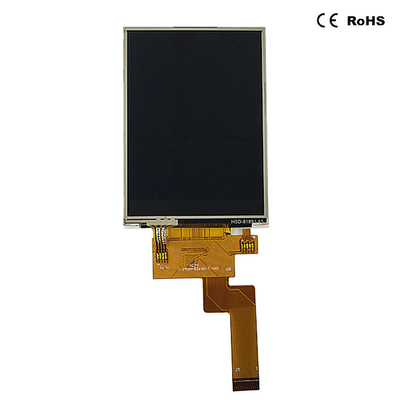

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 22.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 3

2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 4
2.4 Inch TFT LCD Display Resistive Touchscreen Module 240X320 Color IPS LCD 800nits 5
