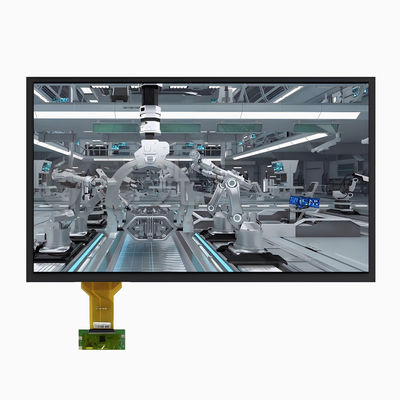

13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial

13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial
13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial 13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial 13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial

Large Image :  13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1330SM-7208A3CT2
Document: SFTO1330SM-7208A3CT2 Datash...et.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD 85 - 95 / Piece (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 4-8 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3,000,000 Pieces per Month

13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial

Description
Product: TFT LCD Display Screen Size: 13.3 Inch (Diagonal)
Resolution: 1920 (H) X 1080 (V) Full HD Brightness: 1000 Cd/m² (nits), High Brightness
Interface: 2-lane EDP (Embedded DisplayPort) 1.2 Touchscreen (CTP): Projected Capacitive (PCAP), Glass-Glass
Operating Temperature: -20°C To +70°C (Wide Temp) Viewing Angle: 85°/85°/85°/85° (All Directions)
Color Gamut: 72% NTSC (Typical) Panel Type: TFT LCD, Normally Black, IPS
Key Application: Industrial HMI, Medical Devices, POS Compliance: REACH, RoHS, Halogen-Free
Highlight:

13.3 Inch FHD TFT LCD

,

1000 nits PCAP Touchscreen

,

eDP PCAP Touchscreen

13.3-inch FHD Industrial TFT LCD Module | 1000 nits, eDP 1.2, PCAP Touchscreen

SFTO1330SM-7208A3CT2: A High-Performance, 13.3-Inch FHD TFT LCD Module Engineered for Demanding Industrial & Interactive Applications


Saef Technology Limited presents the SFTO1330SM-7208A3CT2, a premium 13.3-inch TFT LCD module combining Full HD (1920x1080) clarity, exceptional 1000-nit brightness, and a robust projected capacitive (PCAP) touchscreen. Designed from the ground up for reliability, this module features a modern 2-lane eDP 1.2 interface and operates seamlessly across a -20°C to +70°C temperature range. It is the definitive display solution for engineers in the USA and Europe developing advanced Human-Machine Interfaces (HMI), medical diagnostic equipment, industrial control panels, and public interactive terminals where visual performance, durability, and seamless integration are non-negotiable.

Addressing Critical Requirements for Professional-Grade Designs:

  • Superior Readability in Harsh & High-Ambient Light: With a peak brightness of 1000 nits and an anti-glare (6H hardness) surface treatment, this display ensures crisp, glare-free visuals even under bright factory lighting or indirect sunlight, solving a common challenge in industrial and outdoor-adjacent settings.

  • Simplified High-Speed System Integration: The integrated eDP (Embedded DisplayPort) interface offers a streamlined, low-latency digital connection, reducing EMI concerns and simplifying PCB layout compared to legacy LVDS. This modern interface is increasingly preferred in new designs for its reliability and compatibility with modern SBCs and embedded processors.

  • Ruggedized Construction for Demanding Environments: Beyond the wide operating temperature, the module undergoes rigorous 240-hour reliability tests (high temp/humidity, thermal cycling, vibration) and features ±8kV air discharge ESD protection. The chemically strengthened glass cover lens (≥6H hardness) on the PCAP touchscreen resists scratches and impacts.

  • High-Fidelity Touch Interaction: The Projected Capacitive (PCAP) touchscreen supports multi-touch gestures (configurable), offers excellent optical clarity with ≥85% light transmission, and functions reliably even with surface moisture (fog/light water). It supports I²C, USB, or UART interfaces and flexible 3.3V or 5V operation.

  • Reliable, Long-Lasting Illumination: The high-efficiency LED backlight system is driven by a dedicated constant-current board, offering a typical lifetime of 50,000 hours and wide-range PWM dimming (100Hz-1.6KHz) for optimal power management and ambient light adaptation.

Ideal for Your Next-Generation Product in:

  • Industrial Automation & HMI (Germany/US Focus): For control systems, PLC interfaces, and test bench equipment requiring sunlight-readable, reliable touch interaction.

  • Medical & Healthcare Devices: Suitable for patient monitoring, diagnostic imaging displays, and surgical equipment where high brightness, clarity, and robust touch input are critical.

  • Point-of-Sale & Interactive Kiosks: Perfect for retail POS, self-service terminals, and digital signage where vibrant visuals and durable, user-friendly touch are essential.

Saef Technology: Your Partner, Not Just a Supplier

  1. No-Cost Customization for Prototyping: Need a different touchscreen configuration (e.g., different controller, interface) or a non-touch version? We offer flexible, low-minimum customization options to match your exact prototype specifications, accelerating your development cycle.

  2. Complete Ecosystem Support: This module can be paired with our optional A/D Driver Board (converts HDMI to eDP) or our integrated LED Driver/Inverter Board, providing a complete display subsystem and reducing your engineering overhead.

  3. Uncompromising Compliance for Global Markets: The product is fully compliant with EU RoHS (2011/65/EU & 2015/863), REACH, and is Halogen-Free, ensuring smooth market entry into Germany, the European Union, and North America.

Technical Assurance & Call to Action

  • Quality & Warranty: Manufactured under an ISO9001:2015 certified system and backed by a comprehensive 1-year warranty.

  • Designed for Experts: We provide full documentation: datasheet, mechanical drawings (DXF), interface pinouts, power sequence guidelines, and timing specifications to enable precise integration.

  • Request a Sample for Evaluation: We invite engineers, product designers, and procurement specialists to evaluate the SFTO1330SM-7208A3CT2. Contact our technical sales team today to request a sample, discuss your custom requirements, or obtain a detailed project quote. Partner with Saef for a display solution that delivers unparalleled value through performance, reliability, and expert support.





Mechanical Dimensions

13.3 Inch FHD TFT LCD 1000 nits eDP 1.2 PCAP Touchscreen Industrial 0





Absolute Maximum Ratings



Parameter Symbol Min. Max. Unit
Operating Temperature TOP +20 +70
Storage Temperature TST -30 +80
Operating Ambient Humidity Hop - 90 %RH
Storage Humidity Hst - 90 %RH
Heat Release Requirement Trls 15





TFT LCD Module Electrical Characteristics



Parameter

Symbol Ratings



Unit

MIN TYP MAX
Power Supply Input Voltage VDD 3.0 3.3 3.6 V
Power Supply Current IDD - - - mA

LED Driver Power Supply Voltage

HVDD 2.7   24 V

LED Driver Power Supply Current

IHVDD   20

-

mA
LED Power Consumption PLED   2.7   W
Positive-going Input Threshold Voltage VIT+     +100 mV
Negative-going Input Threshold Voltage VIT- -100     mV
Differential input common mode voltage Vcom   TBD   V





Back-light Unit Characteristics



Parameter Symbol Min. Typ. Max. Unit
Supply voltage VBL 5 12.0 37 V

Power supply Current for Back light

ILED 6

-

25 mA
Power supply for Back light PLED 0.18 - 5.55 W
Modulated light signal voltage VPWM H 1.2 - 5.0 V
VPWM L 0 - 0.6 V
Brightness Control Duty Ratio Duty 1 - 100 %
Brightness Control frequency fPWM 100 - 1,600 KHz
LED-BL ON/OFF High voltage VCNTH 1.2   5.0 V
LED-BL ON/OFF low voltage VCNTL 0 - 0.6 V
LED lifetime - 40,000 50,000 - h





Interfac Pin Definition



Pin No. Symbol I/O Function
1 CABC_ EN / NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P Backlight ground
19 LED-2 P Backlight ground
20 LED-3 P Backlight ground
21 LED-4 P Backlight ground
22 BL_ ENABLE I Backlight on/off
23 BL_PWM_DIM I System PWM
24 SCL/NC - Reserved for LCD manufacturer’s use
25 SDA/NC - Reserved for LCD manufacturer’s use
26 BL_PWR P Backlight power
27 BL_PWR P Backlight power
28 BL_PWR P Backlight power
29 BL_PWR P Backlight power
30 NC - Reserved for LCD manufacturer’s use





CTP Specification



Category Parameter Specification

General

Structure Cover Glass + DITO Glass
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness

≥6H (Pencil Hardness)

Light Transmission Rate ≥85%
Operation Temperature -20℃ ~ +70℃, ≤85% RH
Storage Temperature -30℃ ~ +80℃, ≤85% RH

Electrical

Interface IIC / USB / UART
Touch IC IL12511
Power Supply Voltage (VDD)

3.3V or 5V (Selectable)

Host Resistance

(SDA/SCL)

Configurable on Main-board

Environmental Operating Conditions Functional in fog/surface water

Surface

Properties

Surface Ink Anti-UV
Surface Treatment Anti-Glare (Haze: 10%)
LCD-TP Lamination OCA (Optically Clear Adhesive)
Compliance Material Standards RoHS & Halogen-Free Compliant
