Product Details:
|
| Keywords: | 7" Inch TFT | Touch Screen: | CTP(Capacitive Touch Screen) |
|---|---|---|---|
| Resolution: | 1024x600 Dots | Cover Glass Dimension: | Can Be Customized |
| LCM Interface: | MIPI | Surface Luminance: | 300 Cd/m2 |
| LED Lifetime: | 40,000 Hours | Pins: | 30 Pins |
| Viewing Direction: | All Viewing Angle(80/80/80/80) | CTP Interface: | I2C |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | MIPI 7 Inch TFT LCD Touch Screen,IPS 7 Inch TFT LCD Touch Screen,CTP 7 inch touch tft lcd |
||
TFT LCD Module 7" inch 1024x600 MIPI interface IPS with CTP Product Drawing Product Introduction
Product Quick Details:
1. LCD Size: 7” inch TFT
2. Resolution: 1024x600
3. Viewing Angle: Free
4. Outline Dimension: 164x97x2.6mm
5. LCM Interface Type: MIPI
6. CTP Interface Type: I2C
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
SAEF Technology SF-TO700B-8857A-CT is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of QVGA 1024x600 pixels. It is with Capacitive Touch Screen(CTP), and the cover glass is customizable.
This LCD module is has outline dimension of 164*97*2.6 mm, and AA size of 154.21x85.92 mm. This 7" TFT LCD is with PCAP(Capacitive Touch Screen). SF-TO700B-8857A-CT LCM interface is with MIPI interface, 30 pins. The CTP interface is I2C. SF-TO700B-8857A-CT is with 300cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from –20℃ to +70℃.
This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.
| Keywords: | 7" Inch TFT | Touch Screen: | CTP(Capacitive Touch Screen) |
|---|---|---|---|
| Resolution: | 1024x600 Dots | Cover Glass Dimension: | Can Be Customized |
| LCM Interface: | MIPI | Surface Luminance: | 300 Cd/m2 |
| LED Lifetime: | 40,000 Hours | Pins: | 30 Pins |
| Viewing Direction: | All Viewing Angle(80/80/80/80) | CTP Interface: | I2C |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Quality assurance
1.For every piece, we have 3 times 100% test to ensure good quality.
2.The QA manager has been in the LCD industry for more than 14 years. The key manufacturing and QA operators have been in the LCD industry for more than 7-8 years. Our team are all very professional and experienced in the LCD filed to ensure quality for customers.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
TFT LCD Module 7" inch 1024x600 MIPI interface IPS with CTP Product Drawing
| Pin No. | Symbol | Function |
| 1 | VLED+ | LED Anode |
| 2 | VLED+ | LED Anode |
| 3 | VGH | Positive power for TFT |
| 4 | VGL | Negative power for TFT |
| 5 | UPDN | Gate up or down scan control. UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default) UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver |
| 6 | SHLR | Source right or left sequence control. SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data. SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default) |
| 7 | VLED- | LED Cathode |
| 8 | VLED- | LED Cathode |
| 9 | AVDD | Power for Analog Circuit |
| 10 | GND | Ground |
| 11 | D3P | MIPI data input. |
| 12 | D3N | MIPI data input. |
| 13 | GND | Ground |
| 14 | D2P | MIPI data input. |
| 15 | D2N | MIPI data input. |
| 16 | GND | Ground |
| 17 | CLKP | MIPI clock input |
| 18 | CLKN | MIPI clock input |
| 19 | GND | Ground |
| 20 | D1P | MIPI data input. |
| 21 | D1N | MIPI data input. |
| 22 | GND | Ground |
| 23 | D0P | MIPI data input. |
| 24 | D0N | MIPI data input. |
| 25 | GND | Ground |
| 26 | STBYB | Standby mode. STBYB = ”H“,normal operation(default) STBYB = ”L”, timing controller, source driver will turn off, all output are GND. |
| 27 | RESET | Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability. |
| 28 | VDD(1.8V) | Digital circuit |
| 29 | VDD(1.8V) | Digital circuit |
| 30 | VCOMIN | Common voltage |

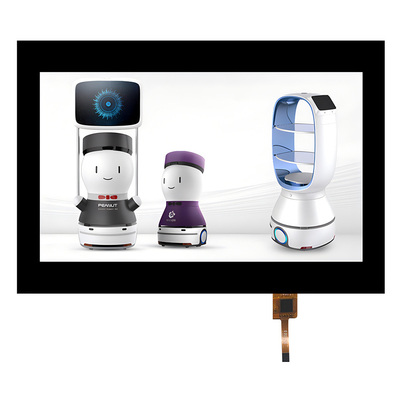

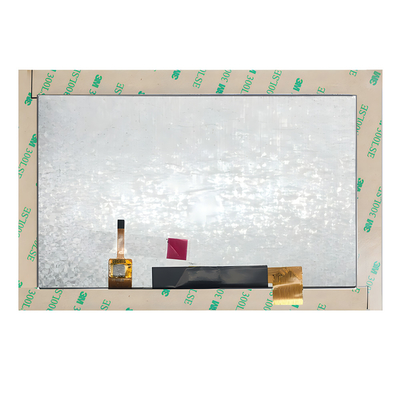

TFT LCD Module 7" inch 1024x600 MIPI interface IPS with CTP Product Image
SIMILAR PRODUCTS
|
SIZE |
DETAIL |
OUR P/N |
|
7 inch |
800x480 Landscape type, with control board |
SF-TC700I-9239C-T |
|
7 inch |
1024x600 Landscape type, with or without CTP, RGB interface |
SF-TC700B-8619A-N/CT |
|
7 inch |
1024x600 Landscape type, with or without CTP, MIPI interface |
SF-TO700B-8857A-N/CT |
|
7 inch |
1024x600 Landscape type, with or without CTP, RGB interface |
SF-TO700B-8834A-CT |
