3.1-inch IPS TFT LCD with Capacitive Touch Panel | 480×800 MIPI DSI Display Module | ST7701 Driver

Description

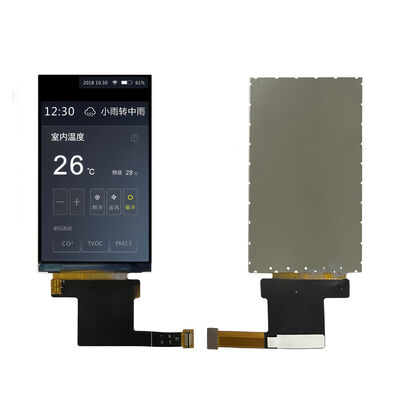

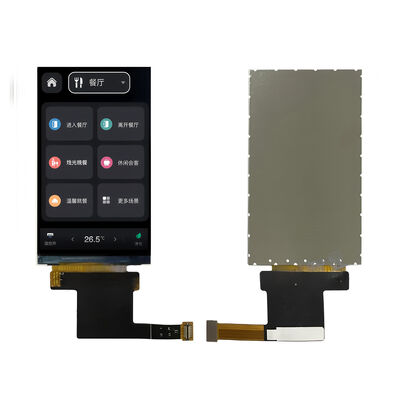

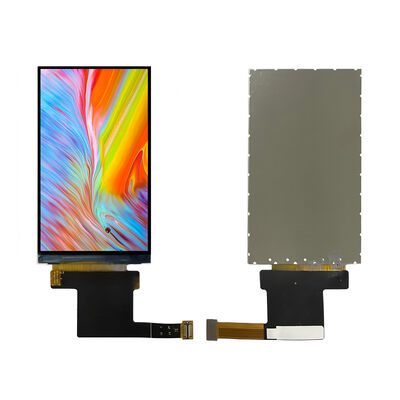

Product: 3.1" IPS TFT LCD Resolution: 480 × 800 Pixels (302 PPI)
Viewing Direction: All-direction, 80° Horizontal & Vertical Touch Technology: PCAT, Multi-touch Support
Interface: MIPI DSI (2 Data Lanes), I²C For Touch Driver IC: ST7701 + CST3530 Touch Controller
Brightness: 450 Cd/m² Typical Contrast Ratio: 1000:1
Operating Temp.: -20℃ To +70℃ Compliance: RoHS, REACH, Halogen-Free
Highlight:

3.1-inch IPS TFT LCD

,

TFT LCD with Capacitive Touch Panel

,

480×800 TFT LCD Display Module



Designed for Demanding Applications: Precision, Performance, and Reliability



Saef Technology Limited introduces the SFTO310HZ-7423A-CT, a high-performance 3.1-inch TFT LCD module engineered for professionals who demand exceptional optical clarity, rugged reliability, and seamless integration. This IPS display delivers 480×800 resolution with 302 PPI, ensuring sharp, vibrant visuals ideal for handheld devices, industrial HMIs, medical instruments, and portable test equipment.



Key Technical Highlights for Design Engineers:

  • Superior Optical Performance: With 450 cd/m² luminance and 1000:1 contrast ratio, this module ensures readability in both dim and brightly lit environments. The IPS technology guarantees consistent color and clarity across wide viewing angles (80°+).

  • Robust Touch Integration: Featuring a projected capacitive touch panel with multi-touch support and I²C interface, it offers smooth, responsive interaction. The cover glass is chemically strengthened with ≥6H hardness for scratch resistance.

  • Industrial-Grade Durability: Operating temperature range of -20°C to +70°C and storage up to -30°C to +80°C makes it suitable for harsh environments. The module complies with RoHS, REACH, and halogen-free standards.

  • Flexible Interface & Power: MIPI DSI interface reduces EMI and simplifies board layout. Wide power supply range (VDD: 2.4V–3.3V, IOVDD: 1.65V–3.3V) supports various system architectures.



Why Choose Saef for Your Display Solution?

We understand that every project has unique requirements. That’s why we offer free semi-customization on touch panel integration, FPC design, optical bonding, and mechanical adaptations. Whether you need a different touch controller, modified outline, or specific optical enhancements, our engineering team collaborates with you to deliver a display that fits your exact specifications.



Ideal For:

  • Handheld terminals & portable scanners

  • Industrial control panels & IoT devices

  • Medical monitoring equipment

  • Automotive dash displays & infotainment

  • Test & measurement instruments



Call to Action for High-Value Inquiries:
Need a tailored display solution? Our engineering team is ready to support your design. Request a custom quote or an evaluation sample today.





General Specification



Features Details Unit
Display Size(Diagonal) 3.1 inch
LCD type α-Si TFT -
Display Mode IPS / Transmissive / Normally Black -
Resolution 480RGB x 800 -
Active Area 40.32(H)×67.2(V) mm
Module Outline 43.48(H) x 74.72(V) x 1.72(T) mm
Display Colors 16.7M -
Interface MIPI -
Driver IC ST7701 -
TP Viewing Area 40.72(H)×67.6(V) mm
TP Outline(assembly) 50.04(H) x 88.74(V) x 1.01(T) mm
Luminance on surface 450 cd/m²
View Direction All Best image
Contrast ratio 1000:1
Color gamut 71.5%
PPI 302 -
Window effect Normal -
Cover plate surface effect without AF/AG -
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g





CTP Specification



Category Parameter Specification

General

Structure Cover Glass + ITO Sensor Film (G+F+F)
Outline dimension 50.04(H) x 88.74(V) x 1.01 (T) mm
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥85%
Operation Temperature -20℃ ~ +70℃, ≤90% RH
Storage Temperature -30℃ ~ +80℃, ≤90% RH

Electrical

Interface I2C
Touch IC CST328
Power Supply Voltage (VDD) 2.8V ~ 3.3V
Host Resistance (SDA/SCL) Configurable on Main-board
Touch Point Multi-touch
Environmental Operating Conditions Customizable

Surface

Properties

Surface Ink Black
Surface Treatment Clear type,
LCD-TP Lamination OCA Bonding
Compliance Material Standards RoHS, REACH & Halogen-Free Compliant





Mechanical Outline Dimensions

3.1-inch IPS TFT LCD with Capacitive Touch Panel | 480×800 MIPI DSI Display Module | ST7701 Driver 0

3.1-inch IPS TFT LCD with Capacitive Touch Panel | 480×800 MIPI DSI Display Module | ST7701 Driver 1

Interface Pin Definition



NO SYMBOL FUNCTION
1 GND Power Ground
2 CLKP CLKP
3 CLKN CLKN
4 GND Power Ground
5 D0P MIPI DSI differential data pair. (Data lane 0 positive polarity)
6 D0N MIPI DSI differential data pair. (Data lane 0 negative polarity)
7 GND Power Ground
8 D1P MIPI DSI differential data pair. (Data lane 1 positive polarity)
9 D1N MIPI DSI differential data pair. (Data lane 1 negative polarity)
10 GND Power Ground
11 NC OPEN
12 NC OPEN
13 GND Power Ground
14 NC OPEN
15 NC OPEN
16 LEDA LED Anode
17 LEDK LED Cathode
18 VCC Power Supply for Analog, VDD=2.4V~3.3V.
19 IOVCC Power Supply for I/O system. VDDIO=1.65V~3.3V
20 NC OPEN
21 NC OPEN
22 GND Power Ground
23 GND Power Ground
24 CTP INT Touch panel interrupt output.If not used, please open it.
25 CTP RST Touch panel rese.If not used, please open it.
26 CTP SDA Touch panel I2C data.If not used, please open it.
27 CTP SCL Touch panel I2C clock..If not used, please open it.
28 LCM RST This signal low will reset the device and must be applied to properly initialize the chip. Signal is low active
29 TE Tearing effect output pin to synchronize MCU to frame writing. This pin is low when it is not activated. If not used, please open it.
30 ID(GND) Power Ground





Absolute Maximum Ratings



Item  Symbol Min. Max. Unit



Supply Voltage

Power supply VDD -0.3 +4.6 V
Analog - - - V
IO IOVDD -0.3- +4.6 V
Input Voltage Vi 0.3 IOVDD+0.3 V
Storage temperature T stg -30 +80 ºC
Operating temperature T op -20 +70 ºC
Storage humidity

H

stg

10 Note 1 %RH
Operating humidity H op 10 Note 1 %RH





Electrical Specification



Item  Symbol Min. Typ.  Max. Unit



Supply Voltage

Powersupply VDD 2.4 2.8 3.3 V
Analog VCI 2.4 2.8 3.3 V
IO IOVDD 1.65 1.8/2.8 3.3 V
Logic Low input voltage  VIL -0.3IOVDD - 0.3IOVDD V
Logic High input voltage  VIH 0.7IOVDD - IOVDD V
Logic Low output voltage  VOL - - 0.2IOVDD V
Logic High output voltage  VOH 0.8IOVDD - - V

Current Consumption

Normal display Ivdd

-

20

-

mA
Standby mode Ivdd

-

30

-

uA
Frame Frequency  fFR - 60 - Hz
