Product Details:
|
| Product: | 0.96 Inch OLED Display | Resolution: | 128x64 Pixels |
|---|---|---|---|
| Structure: | COG + PCB | Interface: | I2C / IIC |
| Touch Screen: | Can Be Customized | Viewing Direction: | All Viewing Angles (85/85/85/85) |
| Outline Dim.: | 24.7 × 27 × 3.6 Mm | Connection: | Metal Pins |
| Pin Number: | 4 Pins ( 7 Pins Optional ) | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 0.96-inch OLED display module I2C interface,industrial grade OLED display module,high brightness OLED display white blue |
||

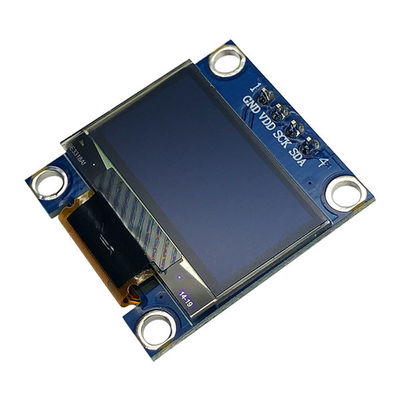

Saef Technology Limited introduces a high-performance 0.96-inch OLED display module, designed for engineers and developers who demand clarity, efficiency, and reliability in ultra-compact designs. Ideal for wearable devices, medical monitors, handheld instruments, IoT sensors, and industrial HMIs, this OLED panel delivers sharp monochrome visuals with extremely low power consumption—all through a simple I2C interface.

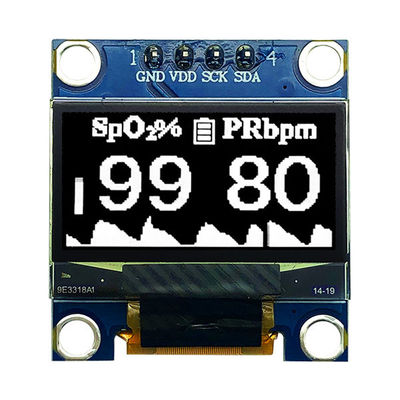

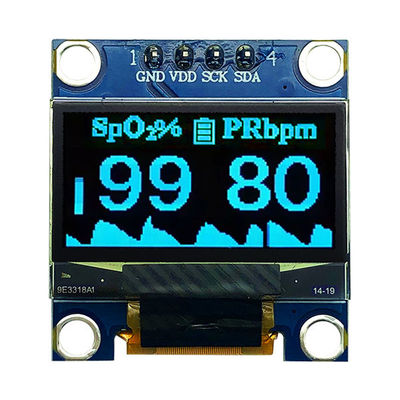

128 × 64 resolution with optional white or blue emission ensures high contrast and excellent readability in both indoor and outdoor lighting.

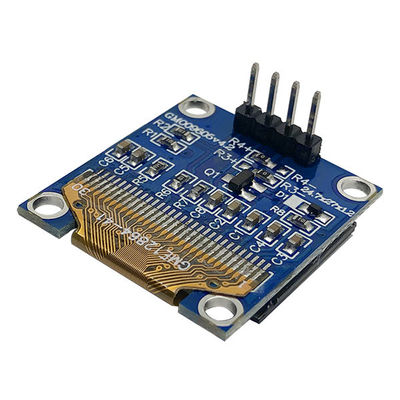

Tiny PCB footprint of 24.7mm × 27.0mm × 2.7mm fits into space-constrained designs without sacrificing display quality.
Only two wires (SCL, SDA) needed for communication, reducing pin count and simplifying integration with MCUs like STM32, ESP32, Arduino, and Raspberry Pi.
Rated for -40°C to +80°C, making it suitable for harsh environments—from frozen logistics to heated industrial settings.
High Brightness with Internal DC/DC
Up to 180 cd/m² brightness enabled by integrated charge pump, ensuring visibility even under direct sunlight.
Rated for 30,000 hours at 80 cd/m², with extensive reliability testing including thermal shock, humidity, and extended temperature cycles.
We offer free semi-customization—add resistive or capacitive touch, modify pinouts, adjust firmware, or tailor mechanical outlines to your exact needs.
Saef’s 0.96-inch OLED module is built with the system designer in mind:
Integrated DC/DC converter eliminates the need for external high-voltage supply
SSD1315 driver IC with full command set for easy control and low power management
Complete initialization code provided in C for fast prototyping
Detailed mechanical drawings & pin definitions ensure error-free PCB layout and assembly
Whether you’re developing a smartwatch, a portable medical device, a sensor display, or a compact control panel—this module delivers reliable performance with minimal design overhead.
Technical Expertise: Our engineering team supports schematic review, firmware debugging, and customization requests.
Rapid Prototyping: Samples ship within 5–7 business days with full documentation.
Market Ready: Compliant with ROHS, REACH, and CE directives for smooth entry into European and North American markets.
Quality Assured: Each unit undergoes AQL inspection per MIL-STD-105E Level II, with 0.65% AQL for major defects.
Wearable Health & Fitness Trackers
Portable Medical & Diagnostic Equipment
Handheld Test & Measurement Tools
Industrial Sensor & HMI Displays
IoT Edge Devices & Smart Home Controllers
Automotive Auxiliary Displays & Dash Clusters
Ready to Design with Confidence?
Contact our technical sales team for datasheets, sample code, or a free design consultation. Let us help you integrate a display that’s as reliable and precise as your vision.
Mechanical Dimensions
![]()
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Supply Voltage for Display | VCC | 0 | 16.5 | V |
| Supply Voltage for DC/DC | VBAT | -0.3 | 4.5 | V |
| Operating Temperature | TOP | -40 | 85 | .C |
| Storage Temperature | TSTG | -40 | 85 | .C |
| Life Time (110 cd/m2) | 10/000 | - | hour | |
| Life Time (80 cd/m2) | 30/000 | - | hour | |
| Life Time (60 cd/m2) | 50/000 | - | hour |
Optics Characteristics
| Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
|
Brightness (VCC Supplied Externally) |
Lbr | Note 5 | 90 | - | - | cd/m2 |
|
Brightness (VC Generated by Internal DC/DC) |
Lbr | Note 6 | 80 | 110 | - | cd/m2 |
| C.I.E. (White) |
(x) (y) |
C.I.E. 1931 |
0.25 0.27 |
0.29 0.31 |
0.33 0.35 |
|
| Dark Room Contrast | CR | - | 2000:1 | - | ||
| Viewing Angle | - | Free | - | degree |
DC Characteristics
|
Characteristics |
Symbol | Conditions | Min | Typ | Max | Unit |
| Supply Voltage for Logic | VDD | - | 3.3 | - | V | |
|
Supply Voltage for Display (Supplied Externally) |
VCC |
Note 5 (Internal DC/DC Disable) |
8.5 | 9.0 | 9.5 | V |
| Supply Voltage for DC/DC | VBAT | Internal DC/DC Enable | - | 3.3 | - | V |
| Supply Voltage for Display Generated by Internal DC/DC | VCC |
Note 6 (Internal DC/DC Enable) |
7.0 | - | 7.5 | V |
| High Level Input | VIH | IOUT = 100μA/ 3.3MHz | 0.8×VDD | - | VDD | V |
| Low Level Input | VIL | IOUT = 100μA/ 3.3MHz | 0 | - | 0.2×VDD | V |
| High Level Output | VOH | IOUT = 100μA/ 3.3MHz | 0.9×VDD | - | VDD | V |
| Low Level Output | VOL | IOUT = 100μA/ 3.3MHz | 0 | - | 0.1×VDD | V |
| Operating Current for VDD | IDD | - | 160 | 220 | μA | |
|
Operating Current for VCC (VCC Supplied Externally) |
ICC |
Note 7 |
- |
9 |
15 |
mA |
| Operating Current for VBAT (VCC Generated by Internal DC/DC) |
IBAT |
Note 8 |
- |
27.0 |
32.0 |
mA |
| Sleep Mode Current for VDD | IDD/ SLEEP | - | - | 10 | μA | |
|
Sleep Mode Current for VCC
|
ICC/ SLEEP | - | - | 10 | μA |
