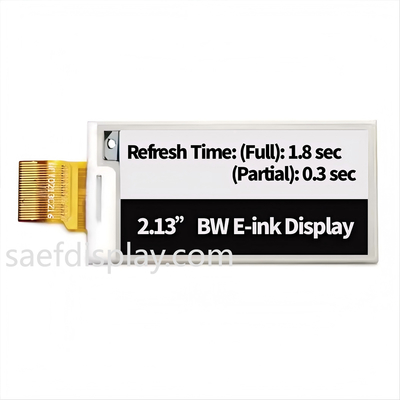

2.13" E Ink Display Module - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct

2.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct
2.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct 2.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct

Large Image :  2.13" E Ink Display Module - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFE213RJBW-7307A
Document: SFE213RJBW-7307A Datasheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD$1.86 – $2.2 / unit (FOB Shenzhen, based on order quantity)
Packaging Details: Export-ready carton box
Delivery Time: 1–5 weeks after order confirmation
Payment Terms: T/T, PayPal, T/T 50% deposit, 50% before shipment
Supply Ability: 30,000,000 units / month

2.13" E Ink Display Module - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct

Description
Technology: Electrophoretic E-ink (Bi-stable) Screen Size: 2.13 Inch (54.1 Mm Diagonal)
Special Features:: Integrated Frontlight Resolution: 122 (H) × 250 (V) Pixels | 130 DPI
Interface: Configurable SPI (3-w/4-w Via BS1 Pin) Refresh Time: Full Update: 1.8 Sec; Partial Update: 0.3 Sec
Active Area: 23.7 × 48.55 (mm) Color: Monochrome (Black/White)
Power Supply: 10.5 MW (Typ.) Viewing Angle: 180° (Ultra-wide)
Optical: Reflectivity: 35% (Typ.) Operating Temp: 0°C To +50°C
Storage Temp.: -25°C To +60°C Compliance: REACH & RoHS Compliant & Halogen Free
Customization:: CTP Optional Via I²C, OCA Lamination Support Reliability: Validated For 240 Hrs At 90% RH, ±8kV ESD, UV Exposure
Highlight:

2.13 inch E Ink display module

,

ultra-low power e-paper display

,

industrial-grade SPI e-paper module

Industrial-Grade E Ink Display for Harsh Environments


The SFE213RJBW-7307A is a 2.13-inch monochrome electrophoretic display (EPD) engineered for demanding industrial applications, including Electronic Shelf Labels (ESL), portable medical devices, and IoT edge systems. With an ultra-low deep sleep current (<1μA) and configurable SPI interfaces (4-wire or 3-wire), this module enables years of battery life while minimizing MCU resource overhead.



Precision Engineering for Factory Integration

  • Reliability: Validated under IEC 60068-2 standards for thermal shock (-25°C ↔ +70°C), humidity (90% RH), and vibration.

  • Supply Chain Stability: Manufactured in ISO 9001/14001-certified facilities in Shenzhen, China, with traceable component sourcing (Taiyo Yuden inductors, OnSemi diodes).

  • Design Support: Includes reference circuits (Page 19), LUT waveforms, and AC timing diagrams (Page 13) for rapid PCB integration.



Technical Differentiation vs. Generic Displays

  1. Partial Refresh (0.3s): 6× faster than full refresh (1.8s) for dynamic ESL price updates.

  2. On-Chip Power Management: Integrated boosters/regulators for VCOM, VGH, VGL – no external PMIC required.

  3. ESD Hardened: IEC61000-4-2 compliant (4kV contact/8kV air) for factory handling robustness.



Ideal for US/German Engineering Teams

  • Automated ESL Systems: SPI daisy-chaining support for large-scale deployments.

  • Medical/Logistics Tools: Wide temperature range (-25°C to +60°C storage) for cold-chain compliance.

  • Longevity Focused: 50,000+ update cycles with bi-stable zero-power image retention.



Ordering & Compliance

  • MOQ: 1,000 units (custom volumes available).

  • Lead Time: 4–6 weeks (air freight to EU/US).

  • Documentation: Full REACH/RoHS test reports, IPC-compliant packaging (480pcs/box).



▶ Download Datasheet in this page.
▶ Request CTP Samples: Custom touch solutions with 20-day lead time.





Mechanical Dimensions

2.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct 0





Mechanical Specifications



Parameter Specifications Unit Remark
Screen Size 2.13 Inch
Display Resolution 122(H)×250(V) Pixel Dpi:130
Active Area 23.7×48.55 mm
Pixel Pitch 0. 1943×0.1942 mm
Pixel Configuration Retangle
Outline Dimension 29.2(H)×59.2 (V) ×0.9(D) mm
Weight TBD g





 Absolute Maximum Ratings



Parameter Symbol Rating Unit
Logic supply voltage VCI -0.3 to +6.0 V
Logic Input voltage VIN -0.3 to VCI +0.3 V
Logic Output voltage VOUT -0.3 to VCI +0.3 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+60 ºC
Optimal Storage Temp TSTGo 23±2 ºC
Opt ma Storage Hum ty HSTGo 55±10 RH





Panel DC Characteristics



Parameter

Symbol Condition Min.

Typ.

Max.

Unit
Single ground GND

-

-

0

-

V
IO Supply Voltage VDDIO

-

2.3 3.3 3.6 V
Digital/Analog supply voltage

VDD

-

2.3 3.3 3.6

V

High level input voltage

Vih

-

0.7VDDIO

-

VDDIO

V

Low level input voltage Vil

-

0

-

0.3VDDIO

V

High level output voltage Voh IOH = 400uA VDDIO-0.4

-

-

V

Low level output voltage Vol IOL = -400uA 0

-

0.4

V

OTP program power VPP

-

7.5 7.75 8.0 V
VCOM output voltage VCOM   -4.0

-

-0.1 V
Positive Gate voltage VGH   + 17

-

+20 V
Negative Gate voltage VGL   -20

-

-17 V
  Positive Source voltage VDH   +2.4 +15 + 15 V
  Positive Source voltage VSHR   +2.4 +5 + 15 V
  Negative Source output voltage

VDL



-15

-15

-2.4

V




Optical Specifications



Symbol

Parameter

Conditions Values Units
      Min . Typ. Max
R White Reflectivity White 30 35 - %
CR Contrast Ratio - 8 15 -
T update_ RS Update time 25℃ - 0.3-1.8 - sec





Input /Output Pin Assignment



No Name I/O Description
1 NC   Do not connect with other NC pins
2 GDR O N- Channel MOSFET Gate Drive Control
3 RESE P Current Sense Input for the Control Loop
4 NC   Do not connect with other NC pins
5 VDHR P Positive source voltage
6 TSCL O I 2 C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS I Bus Interface selection pin
9 BUSY_N O Busy state output pin
10 RST_N I Reset signal input. Active Low .
11 DC I Data /Command control pin
12 CSB I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P IO voltage supply
16 VDD P Digital/Analog power
17 GND P Digital ground
18 VDDD P 1.8V voltage input &output
19 VPP P Power Supply for OTP Programming
20 VDH P Positive source voltage
21 VGH P Positive gate voltage
22 VDL P Negative source voltage
23 VGL P Negative gate voltage
24 VCOM O VCOM driving voltage



Product Image

2.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct 12.13" E Ink Display Module  - 122×250 SPI, Ultra-Low Power, ESL Industrial-Grade e-Paper | Factory Direct 2
