Product Details:
|
Display Size: | 1.09-inch Circular | Resolution: | 240×240 Pixels |
---|---|---|---|
Interface: | SPI 4-Wire (SCL/SDA/CS/RS) | Color Depth: | 262K Colors |
Driver IC: | GC9A01 (Embedded GRAM) | Viewing Angle: | 85° All Directions |
Surface Luminance: | 400 Cd/m² | Operating Temp.: | -20°C To +70°C |
Storage Temp.: | -30°C To +80°C | Operating Voltage: | Logic: 1.65-3.3V (IOVCC) |
Response Time: | 30ms (Tr+Tf Typical) | Compliance: | REACH, RoHS & Halogen Free |
Ultra-Compact Round TFT for Wearables & IoT Devices
The SFTO109JY-7337AN is a 1.09-inch circular TFT LCD module engineered for space-constrained applications like smartwatches, medical sensors, and industrial IoT interfaces. With 240×240 resolution and 262K colors driven by the GC9A01 controller, it delivers crisp graphics while consuming ultra-low power (μA-range sleep mode).
Key Technical Advantages
Simplified integration with ARM Cortex-M, ESP32, and Raspberry Pi Pico MCUs – leverages embedded GRAM to reduce host processor load.
Critical Specifications for Embedded Design
Compliance & Quality Assurance
For Design Engineers: Download SPI timing diagrams, Arduino initialization code, and optical test reports in the full datasheet. Compatible with STM32 HAL libraries.
Mechanical Outline Dimensions
General Specification
Items | Specification | Unit |
Drive element | a-Si TFT | - |
LCM outline size | 30.59 (H) x 32.98 (V) | mm |
Active area | 27.79 (H) x 27.79 (V) | mm |
Number of pixels | 240(H)X240(V) | pixels |
Pixel arrangement | RGB Vertical stripe | - |
Pixel Pitch | 0.1158x 0.1158 | mm |
Display color | 262k | color |
Viewing direction | ALL | - |
Controller / Driver | GC9A01 | - |
Data interface | SPI 4W | - |
Backlight | 2 White LED | - |
Weight | TBD | g |
Absolute Maximum Ratings
Characteristics | Symbol | Min. | Typ | Max. |
Uni t |
Supply Voltage |
IOVCC | -0.3 | - | 4.6 | V |
VCI | -0.3 | - | 4.6 | V | |
TFT Gate On voltage | VGH | -0.3 | - | 27 | V |
TFT Gate Off voltage | VGL | -0.3 | - | 27 | V |
Backlight Forward Current | IF | - | 40 | mA | |
Operating Temperature | TOPR | -20 | +70 | °C | |
Storage Temperature | TSTG | -30 | +80 | °C | |
Humidity | RH | - | 90 | % |
DC Characteristics
Characteristics |
Sym bol |
Min. | Typ. | Max. | Unit | Note |
Power Supply Voltage 1 |
IOVC C |
1.65 | 1.8 | 3.3 | V | |
Power Supply Voltage 2 | VCI | 2.5 | 2.8 | 3.3 | V | |
Gate Driver High Voltage | VGH | 12 | - | 13 | V | |
Gate Driver Low Voltage | VGL | -11 | - | -18 | V | |
Current Consumption |
IDD | - | TBD | - | mA | Normal mode |
IDD-SL EEP |
TBD | uA | Sleep mode | |||
Input voltage “L” Level | VIL | GND | - | 0.3IOVCC | V |
IOVCC= 1.65~ 3.3 |
Input voltage “H” Level | VIH | 0.7IOVCC | - | IOVCC | V | |
Output voltage “L” Level | VoL | GND | - | 0.2IOVCC | V | IOL= 1mA |
Output voltage “H” Level | VoH | 0.8IOVCC | - | IOVCC | V | IOH=-1mA |
Backlight Unit Characteristics
Characteristics | Symbol | Condition | Min. | Type | Max. | Unit |
Forward Voltage | Vf | IL=40mA | - | 2.8 | 3.0 | V |
Forward current | IL | - | 40 | - | mA | |
Luminance | Lv | IL=40mA | - | 450 | -- | cd/m2 |
LED life time | - | IL=40mA | 20,000 | 25,000 | -- | Hr |

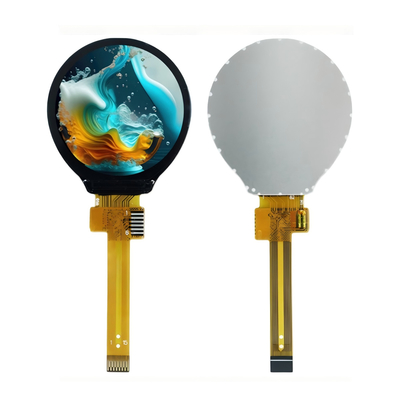

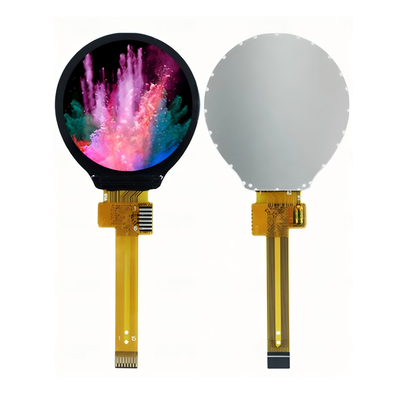

Product Image
