Product Details:
|
Display Size: | 27-inch | Resolution: | 3840×2160 (UHD) |
---|---|---|---|
Surface Luminance: | 1000 Cd/m² (Typical) | Interface: | 4-Lane EDP 1.4 (5.4Gbps) |
Contrast Ratio: | 1000:1 (Typical) | Pin Number: | 30pins |
Viewing Angle: | 89° (CR>10, All Directions) | Color Depth: | 1.07 B (8bit+A-FRC) |
Power Supply: | 10V ±1V (Logic), 24V (Backlight) | Operating Temp.: | 0℃ To +50℃ |
Storage Temp.: | -20℃ To +60℃ | Backlight Lifetime: | 30,000 Hours (L70 @ 25°C) |
Response Time: | 14ms (GTG Typical) | Compliance: | RoHS, Halogen-Free, REACH |
Highlight: | 60Hz UHD Industrial TFT LCD,3840x2160 UHD Industrial TFT LCD,27” UHD Industrial TFT LCD |
Ultra-High Definition Industrial Display for Critical Applications
The SFTO2700B-7125AN is a 27-inch UHD TFT LCD module engineered for industrial automation, medical imaging, and professional visualization systems. Featuring 3840×2160 resolution and 1000 cd/m² luminance, it delivers exceptional clarity in high-ambient-light environments while meeting stringent EU/US industrial standards.
Key Technical Advantages
✅ Industrial-Grade Reliability
Wide Operating Range: Validated at 0°C to +50°C with 85% vertical/horizontal viewing angles.
Robust Backlight: Dual-edge LED bars (37.2V typ.) with 30,000-hour lifespan (L70 @ 25°C).
ESD Hardened: ±15kV air/±8kV contact discharge protection (IEC 61000-4-2).
✅ Advanced Video Performance
10-bit Color Depth: 1.07 billion colors via 8-bit + A-FRC technology, 90% NTSC coverage.
eDP 1.4 Interface: 4-lane 5.4Gbps link rate supports HPD signaling and adaptive sync (40-60Hz).
Low Cross-Talk: <2% deviation for precision grayscale rendering.
✅ Designed for Embedded Integration
Simplified Power Sequencing: HPD timeout control (2ms) ensures boot stability.
PWM Dimming: 100–500Hz frequency range for brightness adjustment.
Anti-Glare Hard Coat: 3H surface hardness reduces reflections in harsh lighting.
Critical Specifications Deep Dive
Optical Uniformity: 85% white luminance uniformity across 9-point grid (per MIL-STD).
Power Efficiency: 59.6W max consumption (BLU + logic) with inrush current protection.
Mechanical Precision: Bezel width ≤13.74mm, VESA mount compatible.
Signal Integrity: Intra-pair skew <150ps, AUX channel 0.98 UI eye width.
Compliance & Longevity
▸ Full RoHS 2011/65/EU, REACH 1907/2006/EC compliance.
▸ Validated under 240hr thermal cycling (-20°C↔60°C), 50G shock, and 1.2Grms vibration.
For System Engineers: Download pinout diagrams (CN1: 30-pin eDP, CN101: 14-pin BLU) and power sequencing flowcharts in the full datasheet. Compatible with Parade DP501 transmitters.
Mechanical Dimensions
Parameter | Specification | Unit |
Active area | 596.736(H)×335.664(V) | mm |
Number of pixels | 3840(H)×2160(V) | pixels |
Pixel pitch | 0.1554(H)×0.1554(V) | mm |
Pixel arrangement | RGB Vertical stripe | |
Color Depth | 1.07 B(8bit+A-FRC) | colors |
Display mode | Normally Black | |
Dimensional outline | 630.0(H)×368.2(V)×20.98(Depth) | mm |
Weight | 3340(typical) | g |
Bezel width (L/R/U/D) | 13.71/13.71/13.74/13.74 | mm |
Surface Treatment | Haze 25%,3H | |
Back-light | Long side,2-LED Lighting Bar type |
Electrical Specifications
Parameter | Min. | Typ. | Max. | Unit | |
Power Supply Voltage | VDD | 9 | 10.0 | 11 | V |
Power Supply Current | DD | - | 460 | 900 | |
In-Rush Current | IRUSH | - | 2.0 | 3.0 | |
Permissible Input Ripple Voltage | VRF | - | - | 400 | |
High Level Differential Input Threshold Voltage |
VIH |
- |
- |
+100 | |
Low Level Differential Input Threshold Voltage |
VIL | -100 |
- |
mV | |
Differential input voltage | |VID | |
100 |
- | 600 | mV |
Differential input common mode voltage | Vcm |
0 |
2 | ||
Power Consumption |
PD | - | 4.6 | 9 | W |
55 | 58 | W | |||
Ptotal | - | 59.6 | - | W |
Backlight Unit Specifications
Parameter | Min. | Typ. | Max. | Unit | |
LED Light Bar Input Voltage Per Input Pin | VPIN | 33.6 | 37.2 | 39.6 | V |
LED Light Bar Input Current Per Input Pin |
IPIN |
- |
110 |
mA |
|
LED Power Consumption | PBL | - |
55 |
58 | W |
LED Life-Time |
- |
30,000 |
- |
Hrs |
LCD Module Optical Specifications
Parameter | Symbol | Condition | Min. | Typ | Max. | Unit | ||
Viewing Angle range |
Horizontal |
Θ3 |
|
85 |
89 | - | Deg. | |
Θ9 | 85 | 89 | - | Deg. | ||||
Vertical |
Θ12 | 85 | 89 | - | Deg. | |||
Θ6 | 85 | 89 | - | Deg. | ||||
Luminance Contrast ratio | CR |
Θ = 0. (Center) Normal Viewing Angle |
700 | 1000 | ||||
Luminance of White | 800 | 1000 | - | cd/m2 | ||||
White luminance uniformity | 80 | 85 | % | |||||
Reproduction of color |
|
|
0.283 | 0.313 | 0.343 | - | ||
Wy | 0.299 | 0.329 | 0.359 | - | ||||
|
Rx | 0.646 | 0.676 | 0.706 | - | |||
Ry | 0.269 | 0.299 | 0.329 | - | ||||
Green |
Gx | 0.197 | 0.227 | 0.257 | - | |||
Gy | 0.649 | 0.679 | 0.709 | - | ||||
Blue |
Bx | 0.123 | 0.153 | 0.183 | - | |||
By | 0.029 | 0.059 | 0.089 | - | ||||
Response Time |
GTG | Tg | 14 | 20 | ms | |||
Cross Talk | CT | - | - | 2.0 | % |
Pin Definition
Pin No | Symbol | Function |
1 | VDD | Power Supply (10.0V) |
2 | VDD | Power Supply (10.0V) |
3 | VDD | Power Supply (10.0V) |
4 | VDD | Power Supply (10.0V) |
5 | VDD | Power Supply (10.0V) |
6 | GND | Ground |
7 | GND | Ground |
8 | NC |
SCL PGMA |
9 | NC | SDA PGMA |
10 | GND | GND |
11 | HPD | Hot Plug Detection Signal |
12 | GND | Ground |
13 | DAUXN | Negative Signal for Auxiliary C |
14 | DAUXP | Positive Signal for Auxiliary C |
15 | GND | Ground |
16 | DRX0P 9 | Positive Signal For eDP Lane0 |
17 | DRX0N | Negative Signal For eDP Lane0 |
18 | GND | Ground |
19 | DRX1P | Positive Signal For eDP Lane1 |
20 |
DRX1N |
Negative Signal For eDP Lane1 |
21 |
GND | Ground |
22 | GRX2P | Positive Signal For eDP Lane2 |
23 | DRX2N | Negative Signal For eDP Lane2 |
24 | GND | Ground |
25 | DRX3P | Positive Signal For eDP Lane3 |
26 | DRX3N | Negative Signal For eDP Lane3 |
27 | GND | Ground |
28 | GND | Ground |
29 | NC | No connection |
30 | BIST | BIST Function |

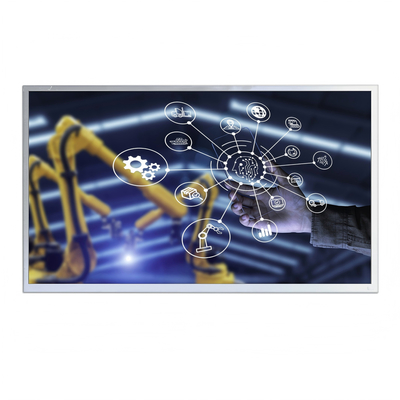

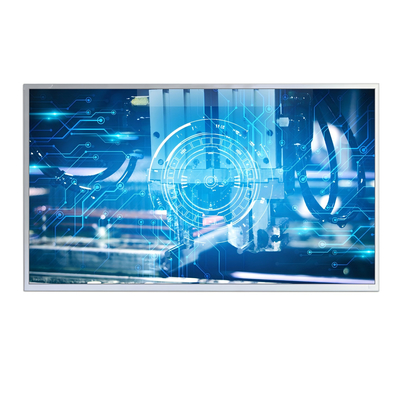

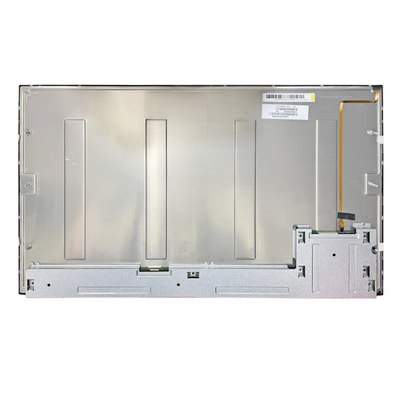

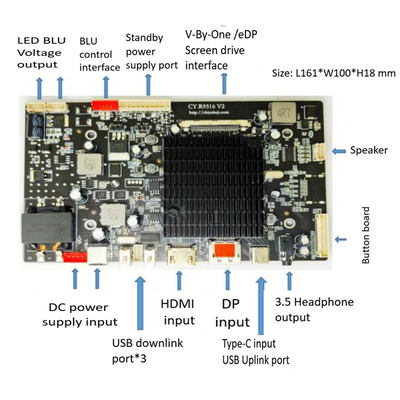

Product Image
