Product Details:
|
Screen Size: | 17.3" Diagonal | Resolution: | 1920 × 1080 (Full HD) |
---|---|---|---|
Brightness: | 800 Cd/m² (Typical) | Contrast Ratio: | 600:1 (Typical) |
Response Time: | 40 Ms (Typical On/Off) | Interface: | Dual-Channel LVDS |
Operating Temp.: | 0°C To +70°C (Industrial Grade) | Storage Temp.: | -20℃ To +70℃ |
IP Rating: | IP65 | Power Consumption: | 31 W (Typical) |
Mounting Options: | Panel Mount / VESA 100x100 | Color Support: | 16.7M Colors (RGB 6-bit + HiFRC) |
Warranty: | 2 Years (Extended Coverage For Industrial Use) | Compliance: | RoHS, REACH, Halogen-Free |
Highlight: | LVDS Industrial-Grade TFT LCD Module,Full HD TFT LCD Module,17.3" TFT LCD Module |

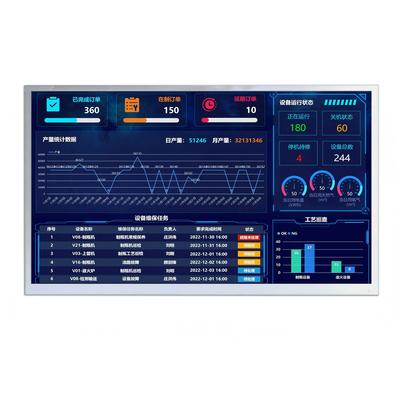

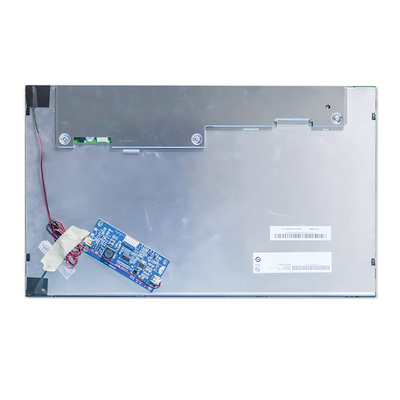

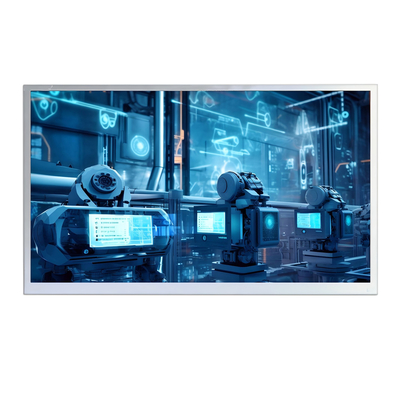

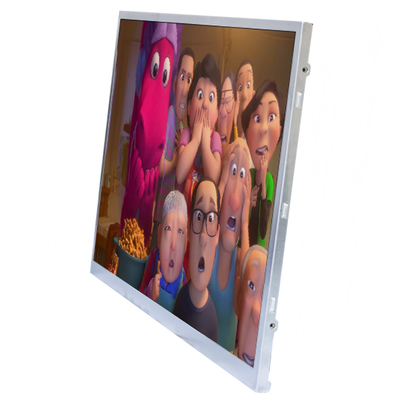

Industrial-Grade 17.3" Full HD High-Brightness TFT LCD Module – SFTO1730RX-7332AN
Engineered for demanding industrial environments, the SFTO1730RX-7332AN is a 17.3" Full HD (1920x1080) TFT LCD module designed to deliver exceptional visibility and reliability in harsh conditions. With 800 nits of brightness, this display ensures crystal-clear readability even in direct sunlight, making it ideal for outdoor or high-glare industrial applications across Germany, the U.S., and other advanced manufacturing hubs.
Key Features for Industrial Applications
Ultra-Bright Display: 800 cd/m² brightness outperforms standard industrial panels, ensuring legibility in bright factories, warehouses, or outdoor settings.
Wide Operating Temperature: Functions flawlessly from -20°C to +70°C, perfect for extreme climates in industrial automation, logistics, or energy sectors.
Durable Design: IP65-rated enclosure protects against dust ingress and water splashes, while passing rigorous vibration (1.5G) and thermal shock tests (-30°C to +80°C).
Precision Imaging: Full HD resolution with RGB 6-bit + HiFRC technology delivers 16.7 million colors for accurate data visualization in control rooms or diagnostic equipment.
Robust Connectivity: Dual-channel LVDS interface ensures stable, high-speed signal transmission for real-time monitoring in industrial IoT or automation systems.
Energy Efficiency: 31W typical power consumption reduces operational costs while meeting global energy standards.
Technical Specifications
Parameter | Value |
---|---|
Screen Size | 17.3" Diagonal (17.25") |
Active Area | 381.888 mm (H) x 214.812 mm (V) |
Pixel Pitch | 0.1989 mm (per triad) |
Surface Treatment | Hard-coated (3H), Anti-Glare |
Backlight Type | LED with adjustable brightness |
Input Voltage | 3.3 V (Logic/LCD Drive) |
Backlight Input Voltage | 12 V DC |
Weight | 1080 g (Typical) |
Dimensions | 403 mm (H) x 240 mm (V) x 12.5 mm (D) |
Applications in Industrial Settings
Factory Automation: HMIs (Human-Machine Interfaces) for PLCs, robotics, and assembly line controls.
Outdoor Equipment: Vending machines, kiosks, and agricultural machinery displays in bright environments.
Medical Devices: Diagnostic imaging systems requiring precise color reproduction.
Transportation: Dashboards for trains, buses, or industrial vehicles with exposure to sunlight.
Smart Manufacturing: Real-time data visualization in Industry 4.0 control panels.
Why Choose SFTO1730RX-7332AN?
Global Compliance: RoHS, CE, and FCC certified for seamless entry into EU and North American markets.
Customizable Backlight: Adjustable brightness via ExtVBR-B signal for energy savings and tailored visibility.
Long-Term Reliability: 50,000-hour MTTF (Mean Time to Failure) ensures minimal downtime in critical systems.
Support & Warranty
We provide comprehensive technical documentation, mounting hardware options (panel or VESA 100x100), and localized support for Germany, the U.S., and beyond.
Backlight Specification
Pin No. | Symbol | Description |
1 | VCC | Power supply voltage +12V |
2 | VCC | Power supply voltage +12V |
3 | ON/OFF | Output enable signal |
4 | DIM | Dimming signal |
5 | GND | Power ground |
6 | GND | Power ground |
Electrical Characteristics
Parameter | Symbol | Values | Unit | ||||
Min | Typ | Max | |||||
Power Supply Input Voltage | VBL | 10.8 | 12.0 | 13.8 | Vdc | ||
Power Supply Input Current | IBL | - | 2.16 | 2.53 | A | ||
Power Supply Input Current (In-Rush) | In-rush |
- |
- |
(TBD) | A | ||
Power Consumption | PBL | - | 26 | 35 | W | ||
Input Voltage for Control System Signals |
On/Off | On | V on | 2.5 | - | 5.5 | Vdc |
Off | V off | -0.3 | 0.0 | 0.5 | Vdc | ||
Brightness Adjust | ExtVBR-B | 30 | - | 100 | % | ||
30 | - | 100 | % | ||||
ExtVBR-B Frequency | fPWM | 500 |
- |
1500 | Hz | ||
Pulse Duty Level (PWM) | High Level | 2.5 | - | 5.5 | Vdc | ||
Low Level | 0.0 | - | 0.5 | Vdc | |||
Life Time | 30,000 | 50,000 | Hrs |
Interface Pin Definition
Pin# | Signal Name | Pin# | Signal Name |
1 | RxOIN0- | 2 | RxOIN0+ |
3 | RxOIN1- | 4 | RxOIN1+ |
5 | RxOIN2- | 6 | RxOIN2+ |
7 | VSS | 8 | RxOCLKIN- |
9 | RxOCLKIN+ | 10 | RxOIN3- |
11 | RxOIN3+ | 12 | RxEIN0- |
13 | RxEIN0+ | 14 | VSS |
15 | RxEIN1- | 16 | RxEIN1+ |
17 | VSS | 18 | RxEIN2- |
19 | RxEIN2+ | 20 | RxECLKIN- |
21 | RxECLKIN+ | 22 | RxEIN3- |
23 | RxEIN3+ | 24 | VSS |
25 | VSS | 26 | VSS |
27 | VSS | 28 | VDD |
29 | VDD | 30 | VDD |
Item | Unit | Conditions | Min. | Typ. | Max. |
Viewing Angle |
[degree] |
Horizontal (Right) CR = 10 (Left) |
70 70 |
80 80 |
- |
Vertical (Up) CR = 10 (Down) |
50 70 |
60 80 |
- |
||
Luminance Uniformity | [%] | 13 Points | 75 | 80 | - |
Optical Response Time |
[msec] |
Rising | - | 37 | 50 |
Falling | - | 3 | 10 | ||
Rising + Falling | - | 40 | 60 | ||
Color / Chromaticity Coordinates (CIE 1931) |
Red x | 0.59 | 0.64 | 0.69 | |
Red y | 0.3 | 0.35 | 0.4 | ||
Green x | 0.27 | 0.32 | 0.37 | ||
Green y | 0.57 | 0.62 | 0.67 | ||
Blue x | 0.1 | 0.15 | 0.2 | ||
Blue y | 0 | 0.05 | 0.1 | ||
White x | 0.25 | 0.30 | 0.35 | ||
White y | 0.26 | 0.31 | 0.36 | ||
White Luminance (At LED=100mA) |
[cd/m2 ] | 700 | 800 |
- |
|
Contrast Ratio | 500 | 600 | - | ||
NTSC | % | 72 |
