Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation

Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation
Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation

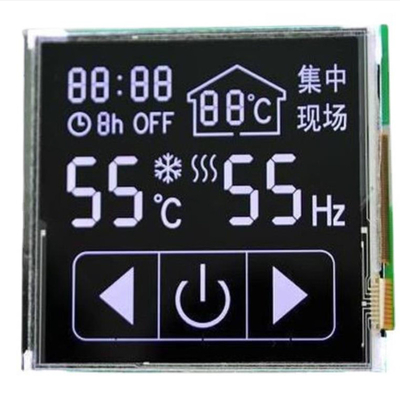

Large Image :  Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: JY2902V
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD0.2
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: PayPal, T/T
Supply Ability: 3000K pcs per month

Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation

Description
Display Type: VA/Transmissive Negative Customization: Segments/Graphics Design Support
Operating Voltage: 4.7V–5.3V (Typ. 5.0V) Operating Temp.: -20°C To +70°C
Storage Temp.: -30°C To +80°C Current Consumption: Typ. 2.0μA
Duty/Bias: 1/4 Duty, 1/3 Bias Size: ~7 Inch
Contrast Ratio: Min. 2:1 (Typ. 5:1) Response Time: Rise ≤100ms / Fall ≤150ms
MOQ: Sample Support & Volume Production Lifespan: 100,000 Hours
Interface: Metal Pins Compliance: RoHS/REACH
Highlight:

Custom VA Segment LCD Display

,

Ultra-Low Consumption Segment LCD Display



Ultra-Low Power VA LCDs for Medical & Industrial Devices


The JY2902V is a custom-engineered VA segment LCD designed for critical applications requiring high-contrast readability (7:1) and extreme energy efficiency (2μA). Its 12:00 viewing direction ensures optimal vertical visibility in medical monitors, industrial controllers, and automotive dashboards across European and North American markets.



Key Features

  • Extended Environmental Tolerance: Operates reliably from -20°C to +70°C (tested 48hrs at -10°C/+60°C).
  • EU-Compliant Design: Supports RoHS/REACH certification and IP-rated enclosures.
  • Pin Connector Reliability: Superior vibration resistance vs. FPC in harsh environments.
  • Rapid Customization: Modify segments, icons, and logic tables in ≤2 weeks.



Customization support

  • Requirement Analysis: Share your schematic via cao2002@21cn.net for DFM feedback.
  • Prototyping: Receive 5-10pcs samples with your custom graphics in 15 days.
  • Certification Support: Add UL/CE markings for EU/US market entry.
  • Volume Production: ISO 9001:2015 certified manufacturing with batch tracing.



Request Your Custom VA LCD Prototype – Download the specification sheet or email your design for a free feasibility study. All data complies with GDPR standards.





Absolute Maximum Rating



NO. Item  Rating Unit Conditions
1

Maximum AC applied voltage

10 V 1 hour
2

Limited DC applied voltage

30 Mv 100hours
3

Operating Temperature Range

-30+80

No condensation

4

Storage Temperature Range

-40+90

No condensation





Electro-Optic Characteristics



NO

ITEM

Symbol

TEMP(℃)

Rating

Unit

Min

Typ

Max

1

Operating Voltage

Vop 25 4.8 5.0 5.2 V
2

Response Time

Rise Time

Tr 25   100   ms

Fall Time

Tf 25   150
3

Operating Frequency

fF 25   75   Hz
4

Contrast Rate

Cr 25 2 5
5

Viewing Direction

6:00 o’clock
6

Viewing Angle

Cr≥2

12H =90° θup 25   15   Deg
6H f =270° θdown   40
3H f =0° θleft   30
9H f =180° θright   30
7

Current Consumption

Is 25   3.0   μA

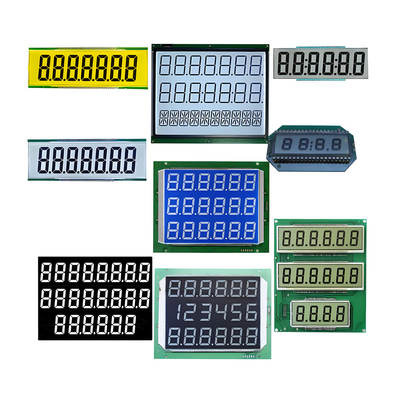

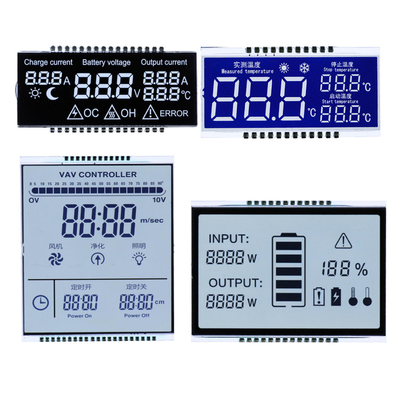

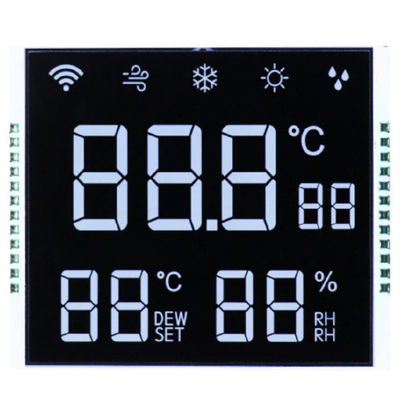

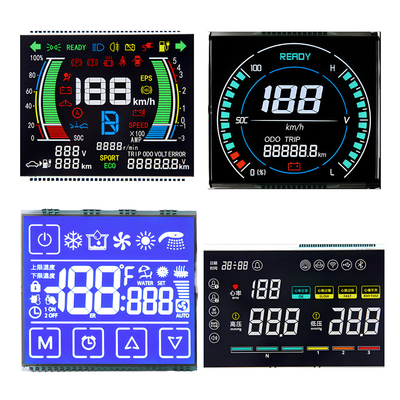

Custom LCD Photo

Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation 0Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation 1Custom VA Segment LCD Display 12:00 Viewing Direction Duty/Bias 1/4 Duty Ultra-Low 2μA Consumption -20°C to 70°C Operation 2
