Product Details:
|
Brand: | Saef Technology | Model: | SFOM096YZ7-12864WB-01 |
---|---|---|---|
Display Size: | 0.96 Inch | Resolution: | 128 × 64 Pixels |
Active Area: | 21.744 × 10.864 Mm | Technology: | Passive Matrix OLED |
Color: | Blue/White/Yellow Blue (optional) | Driver IC: | SSD1306 / SSD1315 Optional |
Operating Temp: | -40°C To +80°C | Interface: | 4-wire SPI (default) |
Voltage: | Logic: 3.0V | Display: 12.0V | Compliance: | REACH & RoHS Compliant |
Highlight: | SPI Interface OLED Display Module,0.96” OLED Display Module,128x64 Pixels OLED Display Module |
Industrial-Grade 0.96" OLED Display by Saef Technology
Engineered for embedded systems, IoT devices, and portable instruments, this high-reliability OLED module delivers crisp visuals in extreme environments across global markets.
Key Features:
Dual-Protocol Flexibility
Supports SPI (4-wire) – compatible with Arduino, Raspberry Pi, STM32.
Extreme Environment Ready
Operates flawlessly from -40°C to 85°C – ideal for:
Industrial controls (EU/US)
Automotive diagnostics (DE/JP)
Medical devices (FDA/CE regions)
Crisp Visual Performance
128×64 resolution | 2000:1 contrast | 100 cd/m² brightness
6 o’clock viewing direction | Free viewing angle
Long-Term Reliability
10,000+ hours lifespan @ 100 cd/m²
MIL-STD-105E compliance | 240hr temp/humidity tested
Global Compliance
RoHS certified | ISO 9001/14001 manufacturing
CE/FCC-ready designs (upon request)
Technical Specifications:
Dot Size: 0.17 × 0.17 mm
Power Consumption: ≤0.5W (typ)
Dimensions: 27.5 × 27.8 × 2.7 mm
Reset Circuit: Built-in initialization
Applications:
HMI Panels | Smart Sensors | Wearable Tech
CNC Controllers (DE/IT) | Lab Equipment (US/JP/KR)
Warranty: 12 months (extendable for OEM)
Mechanical Dimensions
Interface Pin Definition
PIN |
Symbol |
Descriptions |
1 |
GND |
Ground of Logic Circuit |
2 |
VDD |
Power Supply for Logic |
3 |
SCK |
Serial clock input. |
4 |
SDA |
Serial data input. |
5 |
RST |
This pin is reset signal input.When the pin is low,initialization of the |
6 |
DC |
This pin is Data/Command control pin.When the pin is pulled high |
7 |
CS |
Chip Select.Chip is selected when CS0="L". |
Optics Characteristics
Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
Brightness (VCC Supplied Externally) |
Lbr | Note 5 | 90 | - | - | cd/m2 |
Brightness (VC Generated by Internal DC/DC) |
Lbr | Note 6 | 80 | 110 | - | cd/m2 |
C.I.E. (White) |
(x) (y) |
C.I.E. 1931 |
0.25 0.27 |
0.29 0.31 |
0.33 0.35 |
|
Dark Room Contrast | CR | - | 2000:1 | - | ||
Viewing Angle | - | Free | - | degree |
DC Characteristics
Characteristics | Symbol | Min | Typ | Max | Unit |
Supply Voltage for Logic | VDD | - | 3.3 | - | V |
Supply Voltage for Display (Supplied Externally) |
VCC | 8.5 | 9.0 | 9.5 | V |
Supply Voltage for DC/DC | VBAT | - | 3.3 | - | V |
Supply Voltage for Display Generated by Internal DC/DC | VCC | 7.0 | - | 7.5 | V |
High Level Input | VIH | 0.8×VDD | - | VDD | V |
Low Level Input | VIL | 0 | - | 0.2×VDD | V |
High Level Output | VOH | 0.9×VDD | - | VDD | V |
Low Level Output | VOL | 0 | - | 0.1×VDD | V |
Operating Current for VDD | IDD | - | 160 | 220 | μA |
Operating Current for VCC (VCC Supplied Externally) |
ICC |
- |
9 |
15 |
mA |
Operating Current for VBAT (VCC Generated by Internal DC/DC) |
IBAT |
- |
27.0 |
32.0 |
mA |
Sleep Mode Current for VDD | IDD, SLEEP | - | - | 10 | μA |
Sleep Mode Current for VCC |
ICC, SLEEP | - | - | 10 | μA |

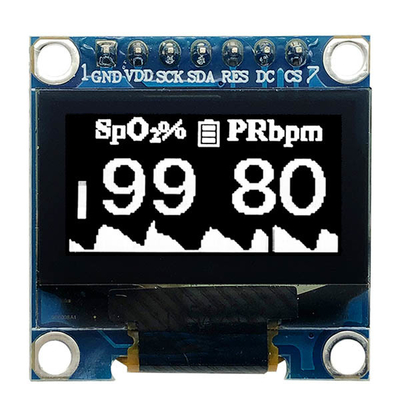

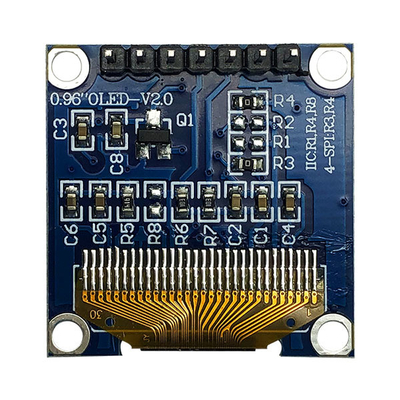

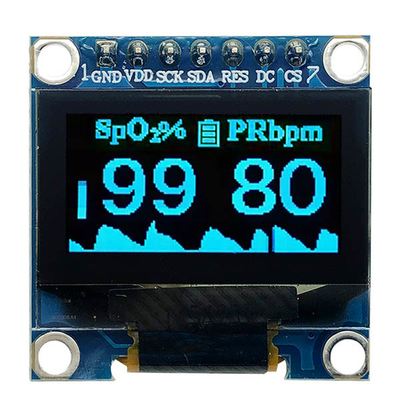

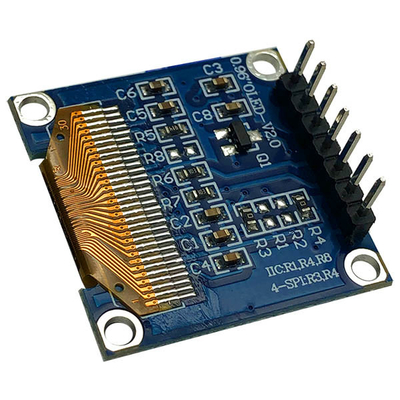

Product Image
