Product Details:
|
Screen Size: | 23.8-inch Diagonal | Resolution: | 1920×1080 Pixels (RGB Stripe) |
---|---|---|---|
Brightness: | 350 Cd/m² | Interface: | LVDS (2-Port, 8-bit) |
Storage Temp.: | 0°C To +50°C | Operating Temp.: | -20°C To +60°C |
Touch Technology: | Capacitive Touch Panel | Backlight Lifetime: | 50,000 Hours (LED, @25°C) |
Surface Hardness: | ≥6H (Anti-Glare, Haze 10%) | IC Options: | EETI, EXC3189 |
Environmental Robustness: | Functional In Fog/Surface Water | Compliance: | RoHS, REACH, Halogen-Free, ISO 9001/14001 (EU/US Certified) |
Highlight: | RGB Stripe Industrial Grade TFT LCD,Industrial Grade TFT LCD Display,1920×1080 Industrial Grade TFT LCD |
Industrial-Grade 23.8" TFT Display for Extreme EU/US Environments
The SFTO2380HY-7253ACT is engineered for North American and European industrial markets, delivering uncompromising reliability in factories, medical facilities, and outdoor installations. Featuring a 23.8" Full HD panel with industrial LVDS interface, it operates flawlessly from 0°C to +50°C and withstands 60cm drops, ±4kV ESD, and high humidity. Triple-certified to RoHS, REACH, and ISO standards, it meets stringent EU/US regulatory requirements for industrial equipment.
Why Industrial Clients Choose This Display:
✅ 50,000-Hour LED Backlight – Reduces lifecycle maintenance costs
✅ LVDS Noise Immunity – Stable signal transmission in motor/VFD environments
✅ Condensation Resistance – Performs in high-humidity European climates
Industrial Performance Highlights
Heavy-Duty Vibration Resistance
Passes 10-55Hz tri-axis vibration testing (per EN 61373 rail standards), ideal for construction/agricultural machinery.
Low-Temperature Color Accuracy
Gamma correction ensures zero color shift during 0°C cold starts, critical for medical imaging.
Industrial Connectivity
LVDS interface natively integrates with Siemens PLCs, Beckhoff controllers, and supports real-time VCOM adjustment (I²C).
Chemical-Resistant Surface
Anti-UV hardened coating withstands oils/solvents, validated by 90% RH/120hr damp-heat testing.
Technical Specifications Deep Dive
Industrial Challenge |
Our Solution |
---|---|
24/7 production line use |
50,000-hour backlight (continuous @25°C) |
Cold warehouse startups |
0°C startup current ≤1.91A (470μs soft-start) |
EMI-heavy environments |
100Ω LVDS impedance + full-shielded connector |
Glove/wet-hand operation |
Projected capacitive touch with EXC3189 IC |
Target Industrial Applications
Industry 4.0 (Germany): CNC machine HMIs, robotic control panels
Medical (USA): Diagnostic displays (DICOM-ready grayscale)
Transport (Scandinavia): Train/bus passenger information systems
Smart Factories: AGV navigation interfaces, warehouse management terminals
Manufacturer Certification
Produced by Saef Technology (Shenzhen), compliant with:
EU: 2011/65/EU (RoHS), 1907/2006 (REACH)
North America: FCC Part 15 Subpart B Class A
Industrial: IEC 61373 vibration standards
External Dimensions
Specification
Parameter | Specification | Unit |
Active area | 527.04(H) × 296.46(V) | mm |
Number ofpixels | 1920(H) ×1080(V) | pixels |
Pixel pitch | 0.2745*0.2745 | mm |
Pixel arrangement | RGB Vertical stripe | |
BLU Brightness | 350 | Cd/㎡ |
Display colors | 16.7M | colors |
Display mode | Transmissive Mode, Normally Black | |
Dimensional outline |
543(H) × 317.4(V) × 8.2(D) typ. |
mm |
Surface Treatment | Anti-Glare ,Hardcoating(3H) | |
Back-light | 1-LED Lighting Bar type | Pcs |
Interface Pin Definition
Pin | Symbol | Description |
1 | RO(0)N | Odd LVDS Signal- |
2 | RO(0)P | Odd LVDS Signal+ |
3 | RO(1)N | Odd LVDS Signal- |
4 | RO(1)P | Odd LVDS Signal+ |
5 | RO(2)N | Odd LVDS Signal- |
6 | RO(2)P | Odd LVDS Signal+ |
7 | GND | Ground |
8 | ROCLK- | Odd LVDS Clock- |
9 | ROCLK+ | Odd LVDS Clock + |
10 | RO(3)N | Odd LVDS Signal- |
11 | RO(3)P | Odd LVDS Signal+ |
12 | RE(0)N | Even LVDS Signal- |
13 | RE(0)P | Even LVDS Signal+ |
14 | GND | Ground |
15 | RE(1)N | Even LVDS Signal- |
16 | RE(1)P | Even LVDS Signal+ |
17 | GND | Ground |
18 | RE(2)N | Even LVDS Signal- |
19 | RE(2)P | Even LVDS Signal+ |
20 | RECLK- | Even LVDS Clock- |
21 | RECLK+ | Even LVDS Clock + |
22 | RE(3)N | Even LVDS Clock- |
23 | RE(3)P | Even LVDS Clock + |
24 | GND | Ground |
25 | WP | Write Protect (High: Write Enable, Low or Open: Write Disable ) |
26 | SCL | I2C Serial Clock (for adjust VCOM) |
27 | SDA | I2C Serial Clock (for adjust VCOM) |
28 | 5V | DC power supply |
29 | 5V | DC power supply |
30 | 5V | DC power supply |
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Max. |
Unit |
Power Supply Voltage |
V DD |
-0.3 |
6 |
V |
Logic Supply Voltage |
V IN |
VSS-0.3 |
V DD +0.3 |
V |
Operating Temperature |
T OP |
0 |
50 |
℃ |
Storage Temperature |
T ST |
-20 |
60 |
℃ |
Backlight Characteristics
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
LED Light Bar Input Voltage Per Input Pin |
VPIN |
- |
55.2 |
- |
V |
LED Light Bar Input Current Per Input Pin |
IPIN |
- |
60 |
- |
MA |
LED Power Consumption |
P BL |
- |
13.2 |
- |
W |
BLU Brightncs |
- |
300 |
350 |
- |
Cd/㎡ |
LED Life-Time |
|
- |
50000 |
- |
Hrs |
CTP Specification
Category |
Parameter |
Specification |
General |
Structure |
Cover Glass + ITO Sensor Glass |
|
Cover Lens Strengthening |
Physically Strengthened |
|
Cover Lens Surface Hardness |
≥6H (Pencil Hardness) |
|
Light Transmission Rate |
≥85% |
|
Operation Temperature |
-10℃ ~ +60℃, ≤85% RH |
|
Storage Temperature |
-20℃ ~ +70℃, ≤85% RH |
Electrical |
Interface |
IIC / USB Optional |
|
Touch IC |
EXC3189 |
|
Power Supply Voltage (VDD) |
IIC:3.3V USB:5V |
|
Host Resistance (SDA/SCL) |
Configurable on Main-board |
Environmental |
Operating Conditions |
Functional in fog/ surface water/Glove |
Surface Properties |
Surface Ink |
Anti-UV |
|
Surface Treatment |
Anti-Glare (Haze: 3%) |
|
LCD-TP Lamination |
OCR (Optically Clear Resin) |
Compliance |
Material Standards |
RoHS & Halogen-Free Compliant |

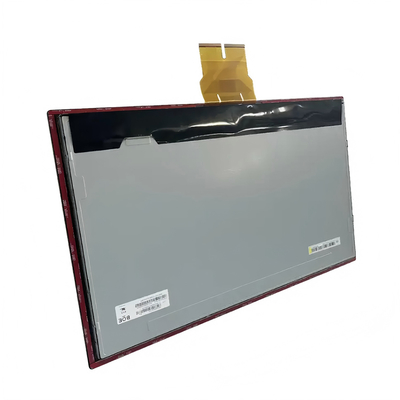

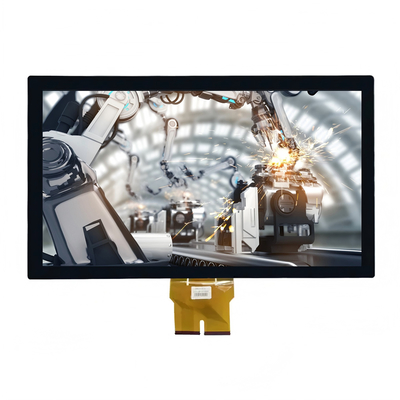

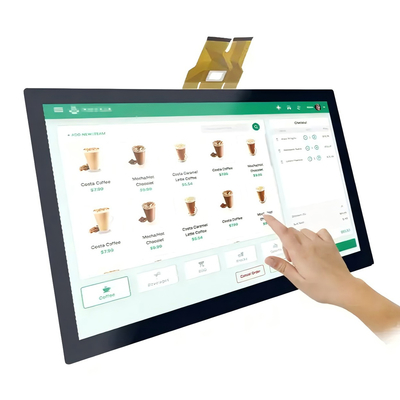

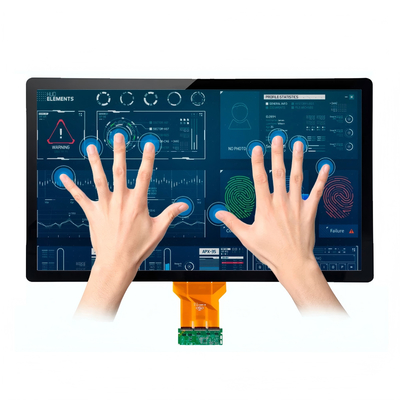

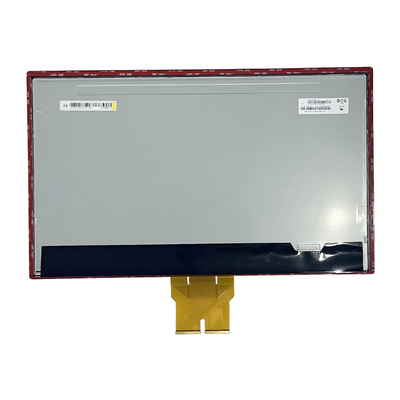

Product Image
