Product Details:
|
Model Number: | SFTO2150RX-7321AN | Screen Size: | 21.5-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 2000 Cd/m² |
Storage Temp.: | -30°C To +80°C | Operating Temp.: | -30°C To +85°C |
Contrast Ratio: | 1000:1 (Typ.) | Interface: | LVDS 2-pixel/clock |
Power Supply: | 5V DC ±10% | Power Consumption: | 37.22W (Typ.) |
Surface Treatment: | AG/AR/AF Coatings (Selectable) | Touch Technology: | PCAP(CTP) Optional |
Cover Glass: | Gorilla Glass/Tempered Glass/PMMA | Touch Points: | 10-Point Multi-Touch |
Touch Interface: | I²C/USB/RS232 (Configurable) | IC Options: | EETI, ILITEK, Cypress, Goodix |
Customization: | Silk Printing, Logo, Cut-outs | Compliance: | REACH & RoHS Compliant |
Highlight: | 2000Nits TFT LCD Display,21.5” TFT LCD Display,1920x1080 TFT LCD Display |
Engineered for Extreme Industrial Environments
The SFT02150RX-7321AN Industrial TFT LCD delivers uncompromising visibility in harsh conditions. With 2000 nits brightness and 1000:1 contrast, it guarantees sunlight readability for outdoor applications. Certified for -30°C to +80°C operation and backed by 50,000-hour backlight endurance, it’s the ideal solution for factory automation, heavy machinery, and critical infrastructure.
Key Industrial Advantages
Rugged Reliability
Passes 50G shock/vibration tests (MIL-STD compliant) and 85°C/90%RH humidity endurance.
Crystal-Clear Visibility
89° wide viewing angles, 80% white uniformity, and anti-glare surface (Haze 25%, 3H hardness).
Seamless Integration
LVDS interface with DE-only mode + landscape/portrait flexibility for embedded systems.
Global Compliance
Meets EU RoHS 2011/65/EU, REACH 1907/2006/EC, and US environmental standards.
Zero Image Retention
Optimized for 24/7 operation with dynamic sleep mode recommendations.
CTP Options (Customization-to-Product)
Tailored for Your Industrial Workflow
1. Standard Ready-Ship Model
→ SFT02150RX-7321AN: 2-week global delivery with 1-year warranty.
2. Semi-Custom Solutions
Environmental Hardening:
► Conformal coating for chemical resistance
► -30°C to +85°C extended temperature kits
Enhanced Usability:
► PCAP/Resistive touch integration (IP65 sealed)
► EMI shielding for sensitive environments
Mechanical Adaptations:
► Custom bezels (stainless steel/aluminum)
► VESA mount compatibility
3. Full ODM Customization
Application-Specific Redesigns:
► Military-grade driver boards (MIL-STD-810)
► ATEX-certified housings for explosive atmospheres
Prototyping & Low-Volume:
► No MOQ for R&D batches
► 8-week custom development cycle
Application
industrial control systems
Why Choose This Module?
Deployed in 3000+ harsh-environment systems globally. SAEF’s displays enable Siemens Healthcare, Raytheon, and maritime OEMs to maintain visibility in extreme conditions with zero field failures since 2020.
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Parameter | Specification | Unit |
Active area | 476.64(H) × 268.11(V) | mm |
Number of pixels | 1920(H) ×1080(V) | pixels |
Pixel pitch | 0.24825(H) x 0.24825(V) | mm |
Pixel arrangement | RGB Vertical stripe | - |
Display colors | 16.7M | colors |
Display mode | Normally Black | - |
Dimensional outline | 495.6(H) × 292.4(V) × 13.6(D) typ. | mm |
Possible Display Type | Landscape and Portrait Enabled | - |
Weight | TBD | Kg |
Bezel width (L/R/U/D) | 7.9/7.9/10.5/10.5 | mm |
Surface Treatment | Haze 25%, 3H | - |
Back-light | Lower side 1-LED Light bar Type | - |
External Dimensions
Interface Pin Definition
Pin No. | Symbol | Description |
1 | RxO0- | Negative LVDS differential data input (Odd data) |
2 | RxO0+ | Positive LVDS differential data input (Odd data) |
3 | RxO1- | Negative LVDS differential data input (Odd data) |
4 | RxO1+ | Positive LVDS differential data input (Odd data) |
5 | RxO2- | Negative LVDS differential data input (Odd data) |
6 | RxO2+ | Positive LVDS differential data input (Odd data) |
7 | BIST | BIST |
8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
10 | RxO3- | Negative LVDS differential data input (Odd data) |
11 | RxO3+ | Positive LVDS differential data input (Odd data) |
12 | RxE0- | Negative LVDS differential data input (Even data) |
13 | RxE0+ | Positive LVDS differential data input (Even data) |
14 | GND | Ground |
15 | RxE1- | Negative LVDS differential data input (Even data) |
16 | RxE1+ | Positive LVDS differential data input (Even data) |
17 | GND | Ground |
18 | RxE2- | Negative LVDS differential data input (Even data) |
19 | RxE2+ | Positive LVDS differential data input (Even data) |
20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
22 | RxE3- | Negative LVDS differential data input (Even data) |
23 | RxE3+ | Positive LVDS differential data input (Even data) |
24 | GND | Ground |
25 | CTL | CTL_DVR |
26 | CE | CE_DVR |
27 | NC | No connection |
28 | VDD | Power Supply Input Voltage 5V |
29 | VDD | Power Supply Input Voltage 5V |
30 | VDD | Power Supply Input Voltage 5V |
Optical Characteristics
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | ||
Viewing Angle range |
Horizontal |
Θ3 |
CR > 10 |
85 | 89 | - | Deg. | |
Θ9 | 85 | 89 | - | Deg. | ||||
Vertical |
Θ12 | 85 | 89 | - | Deg. | |||
Θ6 | 85 | 89 | - | Deg. | ||||
Luminance Contrast ratio | CR |
Θ = 0.(Center) |
700 | 1000 | ||||
Luminance of White | Yw | 1800 | 2000 | - | cd/m2 | |||
White luminance uniformity | ΔY | 75 | 80 | - | % | |||
Reproduction of color |
White |
Wx | 0.283 | 0.313 | 0.343 | - | ||
Wy | 0.339 | 0.369 | 0.399 | - | ||||
Red |
Rx | 0.608 | 0.638 | 0.668 | - | |||
Ry | 0.319 | 0.349 | 0.379 | - | ||||
Green |
Gx | 0.277 | 0.307 | 0.337 | - | |||
Gy | 0.591 | 0.621 | 0.651 | - | ||||
Blue |
Bx | 0.112 | 0.142 | 0.172 | - | |||
By | 0.063 | 0.066 | 0.069 | - | ||||
Response Time |
GTG | Tg | 14 | 25 | ms | |||
Cross Talk | CT |
- |
- |
2.0 | % | |||
NTSC | 70 | 72 | 74 | % | ||||
Display uniformity | 75 | 80 | - | % |
Backlight Characteristics
Item | Symbol | Min. | TYP. | Max. | Unit |
BLU current | I | -- | 1050 | -- | mA |
BLU voltage | V | -- | 50 | 50.6 | V |
BLU Power consumption | PBLU | -- | 52.5 | -- | W |
Operating Lifetime | Hr | 40,000 | 50,000 | -- | Hour |

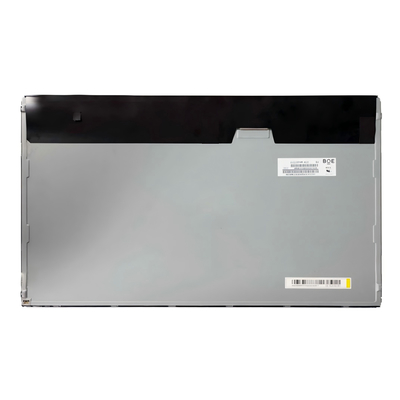

Product Image
