Product Details:
|
Model Number: | SFHD2150A01PT-H20%2 | Screen Size: | 21.5-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 1000 Cd/m² |
Storage Temp.: | -10°C To +60°C | Operating Temp.: | -20°C To +60°C |
Contrast Ratio: | 1000:1 (Typ.) | Interface: | LVDS |
Power Supply: | 5V DC ±10% | Power Consumption: | 37.22W (Typ.) |
Surface Treatment: | AG/AF Coatings | Touch Technology: | PCAP(CTP) Optional |
Cover Glass: | Gorrila Glass | Touch Points: | 10-Point Multi-Touch |
Touch Interface: | USB | IC Options: | ILITEK |
Customization: | Silk Printing, Logo | Compliance: | REACH & RoHS Compliant |
Highlight: | RoHS TFT LCD Module,21.5 Industrial TFT LCD,LVDS Interface TFT LCD Module |
SFHD2150A01PT-H20%2 Industrial-Grade 21.5-inch TFT LCD Display Module
Elevate your industrial equipment with Saef Technology's high-performance touchscreen display, engineered for reliability in demanding environments.
Key Features:
✅ Full HD Clarity
1920×1080 resolution with 1000:1 contrast ratio (typ), VA panel technology, and anti-glare 3H surface for crisp visibility under bright lighting.
✅ Rugged Projected Capacitive Touch
10-finger multi-touch support via USB interface. Compatible with Android/Win7/Win10 systems. 6H hardened glass withstands industrial abrasion.
✅ Extended Temperature Range
Operates flawlessly from -10°C to +60°C (storage: -20°C~60°C). Ideal for factory automation, medical devices, and outdoor kiosks.
✅ Industrial-Grade Durability
Dual-channel LVDS interface for stable signal transmission
14ms fast response time
700 cd/m² high brightness (typ)
VESA mounting support
✅ 2-Year Warranty
Backed by Saef's extended warranty (Model: SFHD2150A01PT-H20%2) for worry-free deployment.
Technical Specifications:
Active Area: 476.064 × 267.786 mm
Interface: LVDS (30-pin connector) + USB (touch)
Power: 5V DC ±10% | Consumption: ≤6W (typ)
Touch Report Rate: ≥100Hz
Construction: Metal frame with IP65 front seal (optional)
Applications:
HMI Panels | CNC Machinery | Test & Measurement Equipment | Transportation Systems | Self-Service Kiosks
Order Code: SFHD2150A01PT-H20%2
Compliance: CE/FCC RoHS (upon request)
Specifications
ITEMS | Unit | Specification |
Screen Diagonal | mm | 546.86(21.5”) |
Active area | mm | 476.064(H) x 267.786(V) |
Pixels H x V | - | 1920(x3) x 1080 |
Pixels Pitch | um | 247.95(per one triad) x247.95 |
Pixel Arrangement | - | R.G.B. Vertical Stripe |
Display Mode | - | VA Mode, Normally Black |
Response Time | Msec | 14ms (typ., on/off) |
Weight | Grams | TBD |
Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
Support Color | - | 16.7M colors |
Surface Treatment | - | Anti-Glare,3H |
Operating Temperature | ℃ | -10 to +60 |
Storage Temperature | ℃ | -20 to +60 |
Interface Pin Definition
Pin No. | Symbol | Description |
1 | RxO0- | Negative LVDS differential data input (Odd data) |
2 | RxO0+ | Positive LVDS differential data input (Odd data) |
3 | RxO1- | Negative LVDS differential data input (Odd data) |
4 | RxO1+ | Positive LVDS differential data input (Odd data) |
5 | RxO2- | Negative LVDS differential data input (Odd data) |
6 | RxO2+ | Positive LVDS differential data input (Odd data) |
7 | GND | Ground |
8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
10 | RxO3- | Negative LVDS differential data input (Odd data) |
11 | RxO3+ | Positive LVDS differential data input (Odd data) |
12 | RxE0- | Negative LVDS differential data input (Even data) |
13 | RxE0+ | Positive LVDS differential data input (Even data) |
14 | GND | Ground |
15 | RxE1- | Negative LVDS differential data input (Even data) |
16 | RxE1+ | Positive LVDS differential data input (Even data) |
17 | GND | Ground |
18 | RxE2- | Negative LVDS differential data input (Even data) |
19 | RxE2+ | Positive LVDS differential data input (Even data) |
20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
22 | RxE3- | Negative LVDS differential data input (Even data) |
23 | RxE3+ | Positive LVDS differential data input (Even data) |
24 | GND | Ground |
25 | CTL | CTL_DVR |
26 | CE | CE_DVR |
27 | NC | No connection |
28 | VDD | Power Supply Input Voltage |
29 | VDD | Power Supply Input Voltage |
30 | VDD | Power Supply Input Voltage |
Optical Characteristics
Parameter | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) |
Horizontal | θL | 85 | 89 | - |
degree |
θ R | 85 | 89 | - | |||
Vertical | θT | 85 | 89 | - | ||
θB | 85 | 89 | - | |||
Contrast Ratio | Center | 700 | 1000 | - | - | |
Response Time | Tr+Td | - | 14 | 20 | ms | |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0 |
Typ. +0.03 |
0 | |
Red y | - | - | ||||
Green x | - | - | ||||
Green y | - | - | ||||
Blue x | - | - | ||||
Blue y | - | - | ||||
White x | 0.323 | - | ||||
White y | 0.379 | - | ||||
Center Luminance of white | YLI | 800 | 1000 | cd/m | ||
Cross Talk | Ct | 2.0 | % |
Capacitive Touch Panel
Item | Specifications | Unit |
Type | Projected touch panel | |
Size | 21.5 | Inch |
Structure | G+G | |
Total Thickness | 3.95±0.3 | mm |
Outline of Cover Lens | 525*324±0.3 | mm |
Outline of ITO Sensor | 493.64*286.11±0.5 | mm |
Viewing Area | 477.2*268.8±0.3 | mm |
Active Area | 480.64*272.11±0.3 | mm |
Interface | USB | |
Number of touch point | 10 (with ILI2510-PCIL22 Control PCB) | |
Input voltage | 5V(with ILI2510-PCIL22 Control PCB) | |
Response time | 10 | ms |
Report Rate | ≥100 | HZ |
Pressure endurance value | <10g | |
Input | Handwriting or capacitive pen | |
Transmittance | ≥85% | |
Surface Hardness | ≥6H | |
Usage |
The specification is applied to transparent and handwriting input capacitive touch panels |

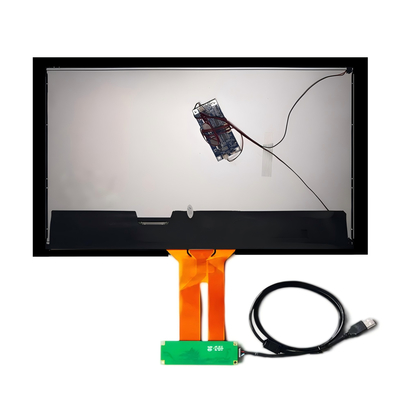

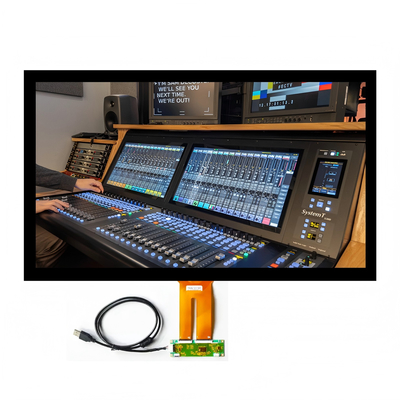

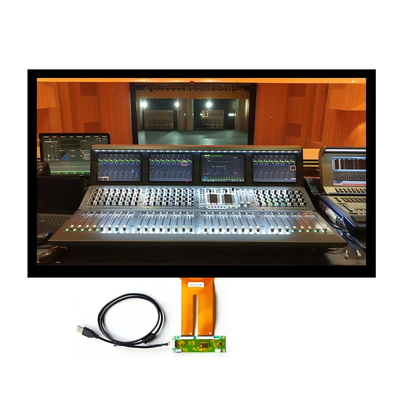

Product Image
