Product Details:
|
Model Number: | SFTO2150RX-7320AN | Screen Size: | 21.5-inch Diagonal (546.1 Mm) |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 500 Cd/m² |
Operating Temp.: | -30°C To +80°C | Contrast Ratio: | 1000:1 (Typ.) |
Interface: | Dual-Channel LVDS (2 Pixel/Clock) | Power Consumption: | 20.96W |
Response Time: | 14ms GTG (Gray-to-Gray) | Viewing Angle: | 89° All Directions (CR>10) |
Backlight: | 50,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | 500 nits Industrial TFT LCD,FHD Industrial TFT LCD,21.5” Industrial TFT LCD |
Mission-Critical Industrial Display for Extreme Environments
The SFTO2150RX-7320AN sets the benchmark for reliability in industrial automation, medical imaging, and transportation systems. With 500 nits high brightness and FHD resolution, it delivers crisp visuals even under direct sunlight or low-temperature conditions.
Key Engineering Advantages
✅ Military-Grade Durability
Operates at arctic to desert temperatures (-30°C~80°C)
Survives 50G mechanical shocks (IEC 60068-2-27)
240hrs humidity operation @50°C/80%RH
✅ Industrial Connectivity
Dual-channel LVDS interface (JAE FI-X30H connector)
DE-only timing mode @74.25MHz
6-bit + Hi-FRC (16.7M colors)
✅ Zero Downtime Design
50,000hr LED backlight (7020 chips, 10S6P×2)
<300mV input ripple tolerance
±8kV contact ESD protection (IEC 61000-4-2)
Industrieanwendungen / Industrial Applications
Wartung & Garantie / Maintenance & Warranty
Lebensdauer: 50.000 Stunden LED-Betrieb (@25°C)
Bildschirmeinbrennen verhindern: Sleep-Modus nach 30 Min Inaktivität
Garantie: 1 Jahr Funktionsersatz
ESD-Schutz: IPM-verpackt mit leitfähiger Folie
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Items | Specification | Unit |
Active Screen Size | 21.5 | inch |
Number of Pixels | 1920 X 1080 | Pixel |
Display Area | 476.64 (H) x 268.11(V) | mm |
Bezel Opening | 479.84(H) x 271.3(V) | mm |
Outline Dimension | 495.6(H) x 292.4(V) x 10.35(D) | mm |
Luminance, White | 500 (Center 1 point,Typ.) | cd/m 2 |
Power Supply Input Voltage | 12 (Typ) | V |
Power Supply Voltage | 5.0 (Typ) | V |
Power Consumption | Total = 20.96 (Typ.) | W |
Contrast Ratio | 1000:1 | -- |
Response time | 14 (Typ.)(G to G) | ms |
Color temperature | TBD | K |
Weight | TBD(Typ) | Kg |
Operating Temperature | -30 ~ 80 | ℃ |
Storage Temperature | -30 ~ 85 | ℃ |
Optical Characteristics
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | ||
Viewing Angle range |
Horizontal |
Θ3 |
CR > 10 |
85 | 89 | - | Deg. | |
Θ9 | 85 | 89 | - | Deg. | ||||
Vertical |
Θ12 | 85 | 89 | - | Deg. | |||
Θ6 | 85 | 89 | - | Deg. | ||||
Luminance Contrast ratio | CR |
Θ = 0. (Center) Normal Viewing Angle |
450 | 500 | ||||
Cell Transmittance | Tr | - | 3.55 | - | % | |||
White luminance uniformity | ΔY | 75 | 80 | - | % | |||
Reproduction of color |
White |
Wx | 0.283 | 0.313 | 0.343 | - | ||
Wy | 0.299 | 0.329 | 0.359 | - | ||||
Red |
Rx | 0.607 | 0.637 | 0.667 | - | |||
Ry | 0.320 | 0.350 | 0.380 | - | ||||
Green |
Gx | 0.266 | 0.296 | 0.326 | - | |||
Gy | 0.590 | 0.620 | 0.650 | - | ||||
Blue |
Bx | 0.120 | 0.150 | 0.180 | - | |||
By | 0.02 | 0.05 | 0.08 | - | ||||
Response Time |
GTG | Tg | 14 | 25 | ms | |||
Cross Talk | CT |
- |
- |
2.0 | % |
Backlight Characteristics
Parameter | Symbol | Value | Unit | ||
Min. | Typ. | Max. | |||
LED Light Bar Input Voltage Per Input Pin | VPIN | 46.5 | 48.5 | 51.5 | V |
LED Light Bar Input total current | IPIN | --- | 360 | mA | |
LED Life Time | LLED | 40000 | 50000 | --- | Hrs |
Power Consumption | PBL | 17.46 | W |
External Dimensions
Interface Pin Definition
Pin No | Symbol | Function |
1 | RXO0- | Negative Transmission data of Pixel 0 (ODD) |
2 | RXO0+ | Positive Transmission data of Pixel 0 (ODD) |
3 | RXO1- | Negative Transmission data of Pixel 1 (ODD) |
4 | RXO1+ | Positive Transmission data of Pixel 1 (ODD) |
5 | RXO2- | Negative Transmission data of Pixel 2 (ODD) |
6 | RXO2+ | Positive Transmission data of Pixel 2 (ODD) |
7 | GND | Power Ground |
8 | RXOC- | Negative Transmission Clock (ODD) |
9 | RXOC+ | Positive Transmission Clock (ODD) |
10 | RXO3- | Negative Transmission data of Pixel 3 (ODD) |
11 | RXO3+ | Positive Transmission data of Pixel 3 (ODD) |
12 | RXE0- | Negative Transmission data of Pixel 0 (EVEN) |
13 | RXE0+ | Positive Transmission data of Pixel 0 (EVEN) |
14 | GND | Power Ground |
15 | RXE1- | Negative Transmission data of Pixel 1 (EVEN) |
16 | RXE1+ | Positive Transmission data of Pixel 1 (EVEN) |
17 | GND | Power Ground |
18 | RXE2- | Negative Transmission data of Pixel 2 (EVEN) |
19 | RXE2+ | Positive Transmission data of Pixel 2 (EVEN) |
20 | RXEC- | Negative Transmission Clock (EVEN) |
21 | RXEC+ | Positive Transmission Clock (EVEN) |
22 | RXE3- | Negative Transmission data of Pixel 3 (EVEN) |
23 | RXE3+ | Positive Transmission data of Pixel 3 (EVEN) |
24 | GND | Power Ground |
25 | NC | Not connection, this pin should be open |
26 | NC | Not connection, this pin should be open |
27 | NC | Not connection |
28 | VDD |
Power Supply: +5V |
29 | VDD | |
30 | VDD |

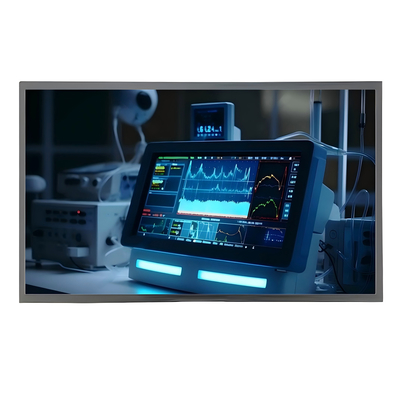

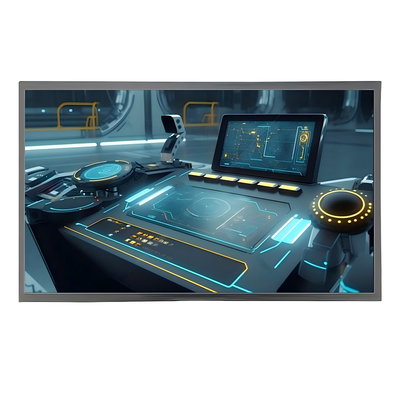

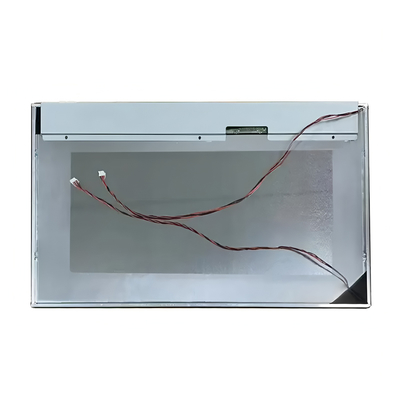

Product Image
