Product Details:
|
Model Number: | SFTO560SH-7316AN (Based On AT056TN52 V.3) | Screen Size: | 5.6-inch Diagonal |
---|---|---|---|
Resolution: | 640×480 Pixels (RGB Stripe) | Brightness: | 250 Cd/m² |
Operating Temp.: | -20°C To +70°C | Technology: | TN TFT, Transmissive |
Interface: | 24-bit Digital RGB | Backlight: | 15 LEDs, 20,000-30,000 Hours Lifespan |
Power Supply: | Dual Voltage | Compliance: | REACH & RoHS Compliant |
Highlight: | Industrial TFT Display Module,Industrial TFT LCD Display Module,640x480 TFT LCD Display Module |
Industrial-Grade 5.6" TFT Display for Harsh Environments
The SFTO560SH-7316AN TFT LCD module delivers uncompromising performance in demanding industrial applications. Engineered to AT056TN52 V.3 specifications, this 5.6-inch display features a sharp 640×480 resolution with anti-glare surface treatment, ensuring clear visibility under high ambient light (250 cd/m² brightness, 500:1 contrast).
Built for Reliability
Operate seamlessly from -20°C to +70°C with 100G mechanical shock resistance. Ideal for factory automation, medical devices, and transportation systems where stability is critical. The 24-bit RGB interface supports 16.7M colors, while dual-voltage drive eliminates noise interference in electrically chaotic environments.
Key Advantages for Engineers
✅ Extended Backlight Lifespan: 15 white LEDs (30,000 hours @ 25°C)
✅ Flexible Integration: Scanning direction control (L/R, U/D pins)
✅ Rugged Protection: Dust-sealed construction passes 240Hrs humidity tests
✅ Simplified Compliance: ROHS/REACH certified, Pb-free soldering compatible
Applications
Industrial HMIs & Control Panels
Portable Test Equipment
Medical Monitoring Devices
Outdoor Kiosks & Transportation Systems
Technical Highlights
Pixel Pitch: 58.8×176.4μm
Response Time: 25ms (Typ.)
Viewing Angles: 70°(H)/50°(V)
Power Sequencing: Optimized ON/OFF timing
Warranty: 1-year functional defect coverage
Compliance Ready
Meets EU ROHS 2011/65/EU, REACH 1907/2006/EC, and EMC directives for seamless integration into global industrial equipment.
Ordering & Support
Contact our Shenzhen HQ for volume pricing, custom FPC tail options, and technical documentation. All modules include electrostatic-safe packaging and IEC-compliant datasheets.
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Features | Details |
Display Size(Diagonal) | 5.6” |
LCD type | TN TFT |
Display Mode | Transmissive / Normally White |
Resolution | 640 RGB x 480 |
View Direction | 12 O’CLOCK |
Gray Scale Inversion Direction | 6 O’CLOCK |
Module Outline | 126.5(H) x 100(V) x 5.7(T) (Note1) |
Active Area | 112.896(H) x84.672(V) |
Pixel Size | 58.8*3 x 176.4 |
Pixel Arrangement | RGB |
Polarizer Surface Treatment | Anti-glare |
Driver IC | ILI6192A-01&ILI5481A |
Display Colors | 16.7M |
Interface | 24 Bits-RGB Interface |
With or Without Touch Panel | Without |
Operating Temperature | -20~70 |
Storage Temperature | -30~80 |
Weight | 100 |
Optical Characteristics
Item | Symbol | Condition | Specification | Unit | |||
Min. | Typ. | Max. | |||||
Luminance on TFT( If =20mA/LED) |
Lv |
Normally viewing angle θX = φY =0º |
200 |
250 |
- |
cd/m² |
|
Contrast ratio(See 6.3) | CR | 600 | 1000 | - | |||
Response time (See 6.2) |
TR+TF |
- |
25 | 50 |
ms |
||
White | XW | 0.25 | 0.30 | 0.35 | |||
YW | 0.26 | 0.31 | 0.36 | ||||
Viewing Angle (See 6.4) |
Horizontal | θX+ |
Center CR≥10 |
60 | 70 | - |
Deg. |
θX- | 60 | 70 | - | ||||
Vertical | φY+ | 40 | 50 | - | |||
φY- | 60 | 70 | - | ||||
NTSC Ratio(Gamut) | - | 51.2 | - | % |
Backlight Characteristics
Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
Backlight Voltage | VLED | Ta=25 ºC, IF=20mA/LED | - | 9.3 | - | V |
Backlight Current | ILED | Ta=25 ºC, VF=3.1V/LED | - | 100 | - | mA |
Power dissipation | PD | - | 930 | - | mW | |
Uniformity | Avg | 75 | 80 | - | % | |
LED working life(25℃) | - | 20000 | 30000 | - | Hrs | |
Drive method | Constant current | |||||
LED Configuration | 15 White LEDs(3 LEDs in one string and 5 groups in parallel) |
External Dimensions
Interface Pin Definition
Pin No. | Symbol | I/O | Function |
1 | VLED+ | P | Power for LED backlight anode |
2 | VLED+ | P | Power for LED backlight anode |
3 | VLED- | P | Power for LED backlight cathode |
4 | VLED- | P | Power for LED backlight cathode |
5 | GND | P | Power ground |
6 | VCOM | I | VCOM input |
7 | VCC | P | Power supply for digital circuit |
8 | MODE | I | DE or HV mode control |
9 | DE | I | Data Enable |
10 | VS | I | Vsync signal input |
11 | HS | I | Hsync signal input |
12 | B7 | I | Blue data input (MSB) |
13 | B6 | I | Blue data input |
14 | B5 | I | Blue data input |
15 | B4 | I | Blue data input |
16 | B3 | I | Blue data input |
17 | B2 | I | Blue data input |
18 | B1 | I | Blue data input |
19 | B0 | I | Blue data input(LSB) |
20 | G7 | I | Green data input(MSB) |
21 | G6 | I | Green data input |
22 | G5 | I | Green data input |
23 | G4 | I | Green data input |
24 | G3 | I | Green data input |
25 | G2 | I | Green data input |
26 | G1 | I | Green data input |
27 | G0 | I | Green data input(LSB) |
28 | R7 | I | Red data input(MSB) |
29 | R6 | I | Red data input |
30 | R5 | I | Red data input |
31 | R4 | I | Red data input |
32 | R3 | I | Red data input |
33 | R2 | I | Red data input |
34 | R1 | I | Red data input |
35 | R0 | I | Red data input(LSB) |
36 | GND | P | Power ground |
37 | DCLK | I | Sample clock |
38 | GND | P | Power ground |
39 | L/R | I | Select left to right scanning direction |
40 | U/D | I | Select up or down scanning direction |
41 | VGH | I | Positive power for scan driver |
42 | VGL | I | Negative power for scan driver |
43 | AVDD | P | Power supply for analog circuit |
44 | RESET | I | Reset |
45 | POL | O | Polarity select for the line inversion control signal |
46 | VCOM | I | VCOM input |
47 | NC | - | No Connector |
48 | NC | - | No Connector |
49 | NC | - | No Connector |
50 | NC | - | No Connector |

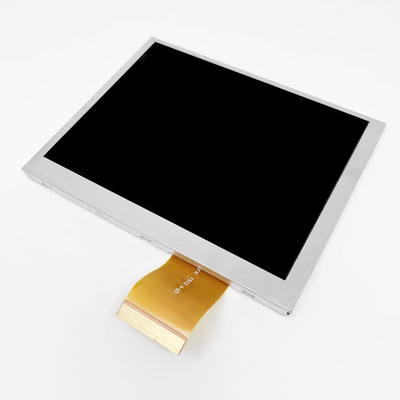

Product Image
