Product Details:
|
Display Type: | Industrial TFT LCD | Screen Size: | 15.6-inch (365.72×220.39mm Bezel) |
---|---|---|---|
Resolution: | 1920×1080 FHD (0.179mm Pixel Pitch) | Peak Brightness: | 1500 Cd/m² (Typ) |
Viewing Angle: | 85°/85°/85°/85° (CR≥10) | Operating Temp.: | -30°C To +85°C (Wide Temp Certified) |
Interface: | 40-pin 2ch LVDS (I-PEX 20455-040E) | Power Input: | 3.3V DC ±10% (4W Typ, 5W Max) |
Contrast Ratio: | 800:1 (Typ) | Backlight: | External LED Light Bar |
LED Lifetime: | 24.35W, 50,000hrs Lifespan | Color Gamut: | 72% NTSC |
Application: | HMI, Outdoor Machinery, Automotive, Medical | Compliance: | REACH & RoHS Compliant |
Highlight: | 1500nits Industrial TFT LCD Display,LVDS Industrial TFT LCD Display |
Engineered for Extreme Industrial Environments
The SFTO1560RX-7312AN is a 15.6" high-brightness TFT LCD built to withstand harsh conditions. With 1500nits luminance and -30°C to 85°C operation, it delivers uncompromised visibility in direct sunlight or freezing temperatures – perfect for construction equipment, factory automation, and outdoor kiosks.
Industrial-Grade Robustness
Military-Grade Durability: Validated through 100 thermal shock cycles, 10-55Hz vibration tests, and ±12kV ESD protection.
50,000-Hour LED Backlight: External light bar with 45.1V input (IP67 optional) for minimal maintenance.
Chemical-Resistant Surface: 3H hardened anti-glare coating withstands industrial cleaning agents.
Smart Integration Features
Plug & Play LVDS Interface: 40-pin connector (I-PEX 20455) with reverse scan control for flexible mounting.
Zero Image Retention: DE-only signal mode prevents burn-in during 24/7 operation.
Low Power Design: 4W typical consumption at 3.3V – reduces system heat load.
Certified for Global Deployment
• EU RoHS/REACH Compliant
• ISO 9001 (Quality) & 14001 (Environmental) Certified
• 1-Year Functional Warranty
Trusted By Industries:
✅ Heavy Machinery: Excavator control panels, agricultural displays
✅ Transportation: Aviation dashboards, marine navigation systems
✅ Medical: Diagnostic equipment, portable monitors
✅ Energy: Oil rig HMIs, solar farm control terminals
Request Customization: Contact sales2@saef.com.cn for IP-rated versions, touchscreen integration, or custom bezels.
Specifications
Item | Specification | Unit |
Screen Size | 15.6” real diagonal | |
Beael Opening | 365.72x220.39x12.5 | mm |
Pixel Number | 1920 x R.G.B. x 1080 | pixel |
Pixel Pitch | 0.17925 (H) x 0.17925 (V) | mm |
Display Area | 344.16x193.59 | mm |
Display Colors | 16.7M | color |
Transmissive Mode | Normally Black | - |
Surface Treatment | AG type, 3H hard coating, | - |
Power Consumption | Total cell | |
TC | 8100 | k |
NTSC | 72 (Typ) | % |
External Dimensions
Interface Pin Definition
Pin | Name | Description |
1 | NC | Not connection, this pin should be open |
2 | NC | Not connection, this pin should be open |
3 | NC | Not connection, this pin should be open |
4 | NC | Not connection, this pin should be open |
5 | NC | Not connection, this pin should be open |
6 | NC | Not connection, this pin should be open |
7 | NC | Not connection, this pin should be open |
8 | NC | Not connection, this pin should be open |
9 | NC | Not connection, this pin should be open |
10 | NC | Not connection, this pin should be open |
11 | LCD_VCC | LCD logic and driver power 3.3V |
12 | LCD_VCC | LCD logic and driver power 3.3V |
13 | LCD_VCC | LCD logic and driver power 3.3V |
14 | NC | Not connection, this pin should be open |
15 | NC | Not connection, this pin should be open |
16 | NC | Not connection, this pin should be open |
17 | REV_SCAN |
Low → Normal Mode. High → Horizontal & Vertical Reverse Scan |
18 | RXO0- | Negative LVDS differential data input. Channel O0 (odd) |
19 | RXO0+ | Positive LVDS differential data input. Channel O0 (odd) |
20 | RXO1- | Negative LVDS differential data input. Channel O1 (odd) |
21 | RXO1+ | Positive LVDS differential data input. Channel O1 (odd) |
22 | RXO2- | Negative LVDS differential data input. Channel O2 (odd) |
23 | RXO2+ | Positive LVDS differential data input. Channel O2 (odd) |
24 | LCD GND | LCD logic and driver ground |
25 | RXOC- | Negative LVDS differential clock input. (odd) |
26 | RXOC+ | Positive LVDS differential clock input. (odd) |
27 | LCD GND | LCD logic and driver ground |
28 | RXO3- | Negative LVDS differential data input. Channel O3(odd) |
29 | RXO3+ | Positive LVDS differential data input. Channel O3 (odd) |
30 | RXE0- | Negative LVDS differential data input. Channel E0 (even) |
31 | RXE0+ | Positive LVDS differential data input. Channel E0 (even) |
32 | RXE1- | Negative LVDS differential data input. Channel E1 (even) |
33 | RXE1+ | Positive LVDS differential data input. Channel E1 (even) |
34 | LCD GND | LCD logic and driver ground |
35 | RXE2- | Negative LVDS differential data input. Channel E2 (even) |
36 | RXE2+ | Positive LVDS differential data input. Channel E2 (even) |
37 | RXEC- | Negative LVDS differential clock input. (even) |
38 | RXEC+ | Positive LVDS differential clock input. (even) |
39 | RXE3- | Negative LVDS differential data input. Channel E3 (even) |
40 | RXE3+ | Positive LVDS differential data input. Channel E3 (even) |

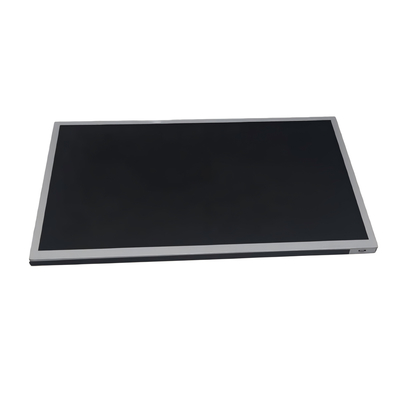

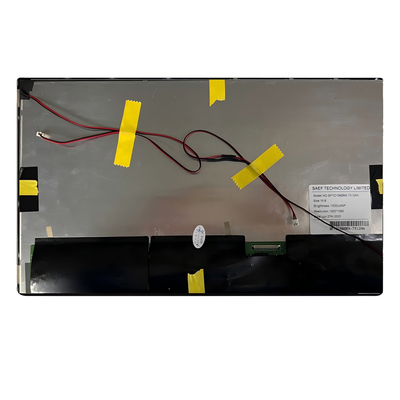

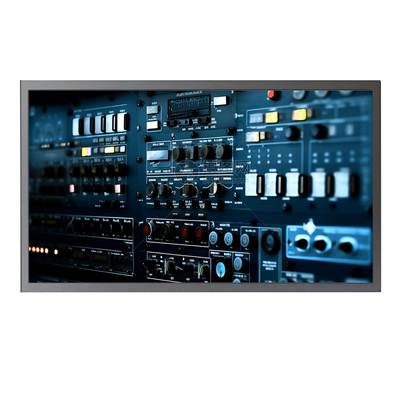

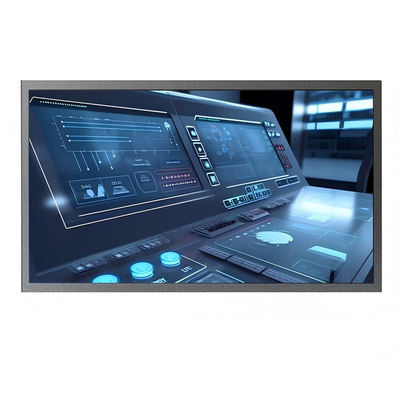

Product Image
