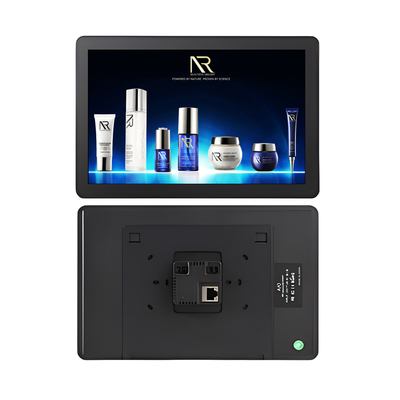

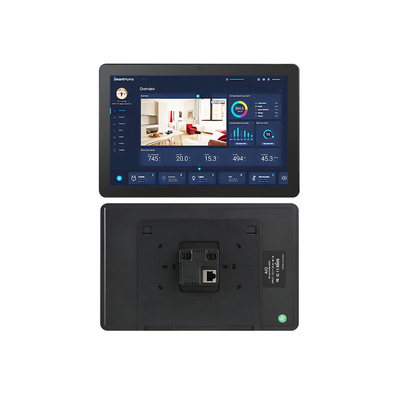

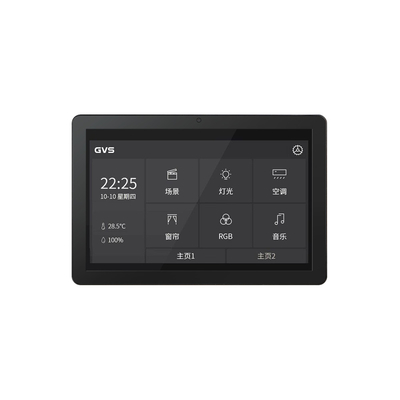

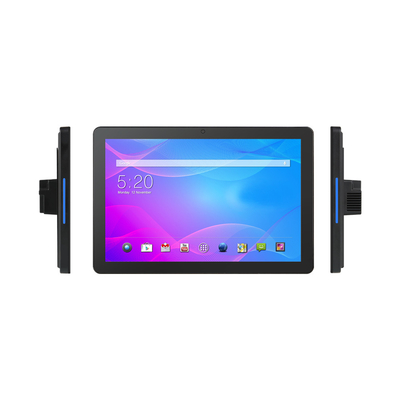

10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates

10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates
10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates

Large Image :  10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SH101T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 3000K pcs per month

10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates

Description
Product: 10.1 Inch Smart Home Control Panel Resolution: 1280x800 Dots
Display Area: 215×135mm (16:10) CPU: RK3566
RAM: 2GB ROM: 32GB
System: Android 11 OS WIFI: 802.11b/g/n
Multi-Media: Video/Audio/Picture Speaker: 2×2W Speakers
Camera: Standard 200W Pixel Camera Adapter: One, 12V/2A
POE: Yes RS485: Yes
Highlight:

Smart Doorplates smart home control panel

,

Smart Home Control Panel With LED

,

10.1 Inch Smart Home Control Panel

10.1-inch Smart Control Panel: Exceptional Performance and Versatile Applications

This 10.1 - inch smart control panel is the ideal choice to embark on an intelligent lifestyle. Its 10.1 - inch fully - bonded high - definition full - view screen features a resolution of 1280×800. The normally black display mode, combined with a 16:10 aspect ratio, along with a wide viewing angle of 85/85/85/85 (L/R/U/D), a brightness of 300 cd/m², and a contrast ratio of 1000:1, ensures clear and vivid images in any environment.

In terms of performance, it is equipped with a Rockchip rk3566 quad - core A55 processor clocked at 1.8G, paired with 2GB (4GB optional) of RAM and 32GB of internal storage. Running on the Android 11 system, it offers smooth operation. The 10 - point capacitive touch screen provides sensitive and convenient operation.
It has rich network connectivity options. It supports WIFI and Bluetooth AP6212 (802.11b/g/n and BT5.2, with AP6256 optional for 802.11a/b/g/n/ac and BT5.0), a 100M Ethernet interface, and the POE function meets the IEEE802.3at standard. Optional Zigbee and Matter protocols enable easy construction of a smart home ecosystem.
In high - end residences, it can realize intelligent access control and home control. In hotels and apartments, it can serve as an intelligent doorplate and information display terminal. In office spaces, it can be used for meeting room management. In commercial places, it is an excellent navigation and advertising display device. In addition, dual microphones, 2×2W speakers, an RGB LED light strip, a 2MP camera, support for a wide range of multimedia formats, multi - language OSD, and certifications such as 3C, FCC, CE, and ROHS fully meet the needs of different scenarios.



Features

Display Panel 10.1" high-definition full view screen fully bonded
Resolution 1280×800
Display mode Normally black
Viewing angle 85/85/85/85(L/R/U/D)
Luminance 300 cd/m2
Contrast 1000:1
Aspect Ratio 16:10
System CPU Rockchip rk3566 quad core A55 processor, clocked 1.8G
RAM 2GB ( 4GB optional )
Internal memory 32GB
Operation system Android 11 system
Touch screen 10-Point capacitive touch
Network WIFI and Bluetooth AP6212 ( 802.11b/g/n and BT5.2 ) 【AP6256 ( 802.11a/b/g/n/ac and BT5.0 ) optional】
Ethernet 100M ethernet
Zigbee Protocol optional
Matter Protocol optional
Interface TF TF card slots
Type-C USB2.0 supports OTG functionality
RJ45 Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4, 25.5W )
RS-485 Communicating with RS485 devices
Power jack DC power input
Power jack 12V positive and negative electrode wire interface
Multi-Media Video MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.
Audio MP3/WMA/AAC etc.
Picture JPEG
Other parameters Microphone Two microphones
Speaker 2×2W BOX chamber horn
LED light strip RGB
Camera 2MP from a conventional perspective
Working temp 0-50degree
OSD language Multi-language
Certificates 3C,FCC,CE,ROHS etc.
Accessories Adapter non
User's Manual yes

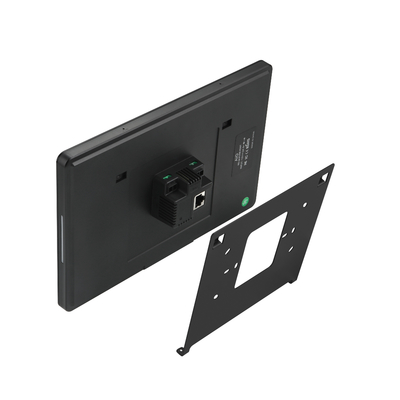

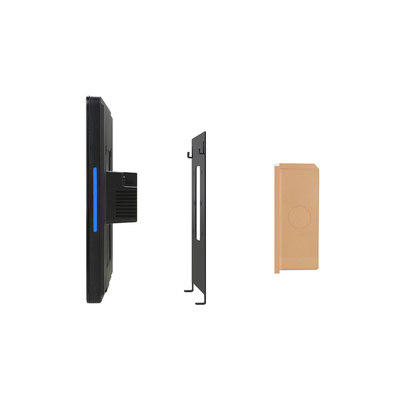

Usage Wall hanging (standard accessory)



Package


Body Size Color Box 10pcs/Carton
Length Width Thickness Length Width Height Length Width Height
245 163 13.5 285 195 55 570 300 220
N.W 0.67KG N.W 0.84KG G.W 9.4KG

Unit: mm


Mechanical Outline Drawing
10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 0

Product Details

10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 110.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 2
10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 3
10.1 Inch Smart Home Control Panel Home Assistant With LED For Smart Doorplates 4
