3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566

3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566
3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566

Large Image :  3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001:2015 / ISO14000:2015
Model Number: SFAP340XC-8080AN
Document: SFAP340XC-8080AN Specificat...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566

Description
Product: 3.4 Inch Android Media Player Resolution: 800x800 Pixels
Viewing Angle: IPS, All Viewing Angles Touch Screen: No Touch (PCAP Optional)
CPU: Rockchip RK3566 Power Voltage: 12V
Operating System: Android 11 Memory: 2G LPDDR4X/LPDDR4
PCB Size: 92.0 * 75.0 (mm) TFT LCD Size: 94.9 * 96.95 (mm)
Surface Luminance: 300 Cd/m2 (nits) Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃ Operating Current: 250mA
WiFi: With Compliance: REACH & RoHS Compliant & Halogen Free
Highlight:

3.4 Inch Round TFT LCD

,

TFT LCD Advertising Media Monitor

,

Android RK3566 Round TFT LCD



About this product SFAP340XC-8080AN




Introducing the next-generation 3.4-inch Round TFT LCD Display from Saef Technology Ltd, designed specifically for advertising and media applications. This innovative display leverages the powerful Android RK3566 platform to deliver high-quality visuals and seamless user interaction. Perfect for digital signage, retail displays, and interactive kiosks, this display combines advanced technology with a sleek, modern design.


Key Features



  • High-Resolution Display: 800x800 pixels resolution ensures crisp and clear visuals.
  • Round Design: Unique circular shape adds a modern aesthetic to any setup.
  • Sunlight Readable: High brightness (1000nits optional) ensures visibility in various lighting conditions.
  • Capacitive Touch Screen: (with or without CTP) Responsive touch interface for intuitive user interaction.
  • Android RK3566: Powered by the RK3566 chipset, offering robust performance and compatibility.
  • MIPI Interface: Supports MIPI interface for high-speed data transfer.
  • HDMI Board: Integrated HDMI board for easy connectivity and media playback.
  • Wide Viewing Angle: Full viewing angle display ensures consistent visuals from any angle.
  • Durable Construction: Built to withstand everyday use in various environments.



Applications


Ideal for a variety of applications, including:

  • Digital Signage: Engage audiences with dynamic content.
  • Retail Displays: Enhance customer experience with interactive kiosks.
  • Interactive Kiosks: Provide information and services with ease.
  • Public Information Displays: Communicate effectively in public spaces.


Why Choose This Display?

  • Innovative Design: The round shape stands out in any setting.
  • High Performance: Powered by the RK3566 chipset for smooth performance.
  • User-Friendly: Capacitive touch screen ensures a responsive and intuitive user experience.
  • Versatile: Suitable for a wide range of applications and environments.
  • Reliable: Built to last with durable materials and construction.



Conclusion


The 3.4-inch Round TFT LCD Display with Android RK3566 is the perfect solution for modern advertising and media needs. Its high-resolution, sunlight-readable display, combined with a responsive touch interface and robust performance, makes it an ideal choice for digital signage, retail displays, and interactive kiosks. Upgrade your media display with this cutting-edge technology today!





TFT Display Drawing

3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 0





PCB External Dimensions



3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 1



3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 2



Basic Function List



CPU Rockchip RK3566 UP to1.8GHz;
GPU Mali-G52-2EE
NPU Support 1.0T
Memory Standard Configuration2G LPDDR4X/LPDDR4
Built-in Memory EMMC16G/32G(options) (Standard Con.16G)
Operating System Android11.0

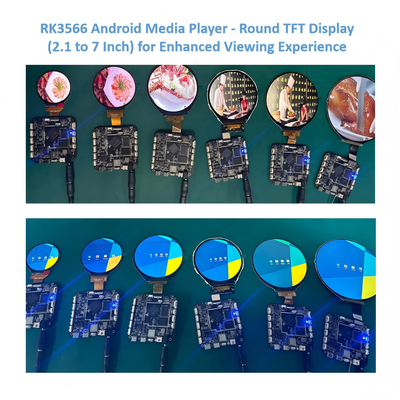

Circular TFT Ranging from 2.1 inches to 7 inches
USB2.0 interface 2 个 USB HOST
USB OTG 1 standard TYPEC 2.0
MI PI Up to 2560*1440
Audio output Left and right channel output 8R/2W speakers

RTC Real

Time Clock

Support
hardware watchdog Support
Timed power on/off Support
Serial port 2 TTL channels, 1 Debug channel
System update Support computer updates

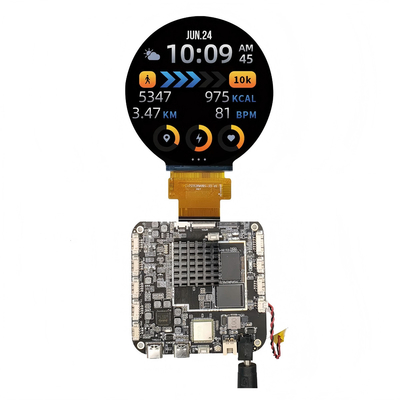

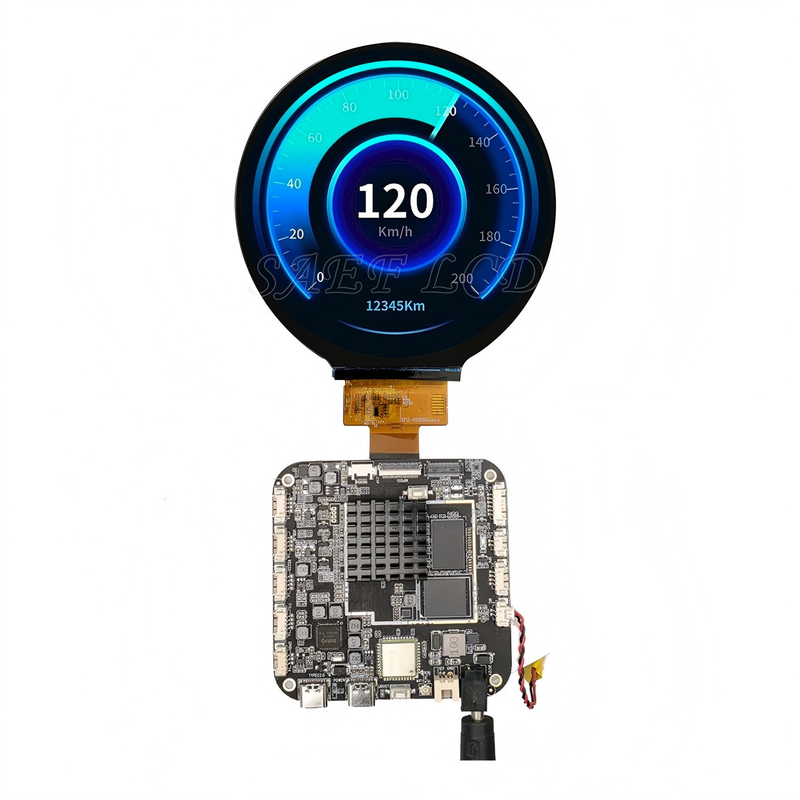

Product Image

3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 33.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 4

3.4 Inch Round TFT LCD Advertising Media Monitor With Android RK3566 5
