Product Details:
|
Product: | 1.54" Inch Graphic OLED Screen | Resolution: | 128x64 Dots |
---|---|---|---|
Display Mode: | Passive Matrix | Interface: | 4 Wires SPI Interface |
Optics: | All Viewing Angles | Outline Dim.: | 42.04 X 37.0 X 3.1 (mm) |
Active Area: | 35.05 X 17.51 (mm) | Pixel Pitch: | 0.254 X 0.254 (mm) |
Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +70°C |
Storage Temp.: | -40°C To +85°C | Supply Voltage: | 2.8V |
Pin Number: | 7 Header Pins | Compliance: | REACH & RoHS Compliant |
Highlight: | 1.54-Inch OLED Display Module,128x64 OLED Display Module,High Contrast OLED Display Module |
Mechanical Dimensions
Interface Pin Definition
PIN | SYMBOL | Descriptions |
1 | GND | Ground of Logic Circuit |
2 | VDD | Power Supply for Logic |
3 | SCK | Serial clock input. |
4 | SDA | Serial data input. |
5 | RST | This pin is reset signalinput.When the pin is low,initialization of the chip is executed.Keep this pin pull high during normal operation. |
6 |
DC |
This pin is Data/Command control pin.Whenthe pin is pulled high and serial interface mode is selected,the data at SDIN will be interpreted as data.When itis pulledlow.the data at SDIN will be transferred to the command register. |
7 | CS | Chip Select.Chip is selected when CS0="L". |
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit |
Supply Voltage for Logic | VDD | -0.3 | 4 | V |
Supply Voltage for Display | VCC | 8 | 17 | V |
Operating Temperature | TOP | -40 | 70 | C |
Storage Temperature | TSTG | -40 | 85 | C |
Life Time (220 cd/m2) | 13,000 | - | hour | |
Life Time (200 cd/m2) | 15,000 | - | hour | |
Life Time (180 cd/m2) | 16,000 | - | hour |
DC Characteristics
Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
Supply Voltage for Logic | VDD | 1.65 | 2.8 | 3.3 | V | |
Supply Voltage for Display | VCC | 11.5 | 12 | 12.5 | V | |
High Level Input | VIH | 0.8×VDD | - | - | V | |
Low Level Input | VIL | - | - | 0.2×VDD | V | |
High Level Output | VOH | IOUT = 100μA, 3.3MHz | 0.9×VDD | - | - | V |
Low Level Output | VOL | IOUT = 100μA, 3.3MHz | - | - | 0.1×VDD | V |
VDD Supply Current VDD =2.8V, VCC = 12, IREF = 10uA , No Panel attached, Display ON, All ON, |
IDD | Contrast = FFh | - | 90 | 110 | μA |
VCC Supply Current VDD = 2.8V, VCC =12, IREF =10uA, No Panel attached, Display ON, All ON |
ICC | - | 450 | 580 | μA | |
Segment Output Current, VDD = 2.8V, VCC =12V, IREF=10uA, Display ON. |
ISEG | Contrast=FFh | 280 | 310 | 340 | μA |
Contrast=AFh | - | 215 | - | |||
Contrast=7Fh | - | 155 | - | |||
Contrast=3Fh | - | 78 | - | |||
Contrast=0Fh | 20 | - | ||||
Sleep Mode Current for VDD | IDD, SLEEP |
VDD = 1.65V~3.3V, VCC = 7V~16V Display OFF, No panel attached |
- | - | 10 | μA |
Sleep Mode Current for VCC | ICC, SLEEP |
VDD = 1.65V~3.3V, VCC = 7V~16V Display OFF, No panel attached |
- | - | 10 | μA |

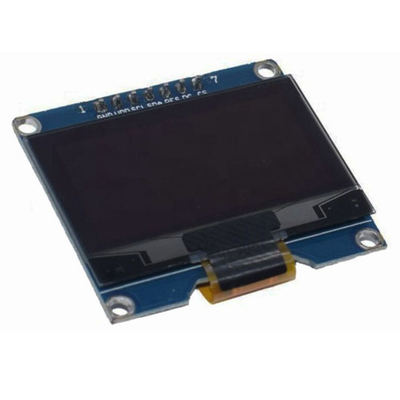

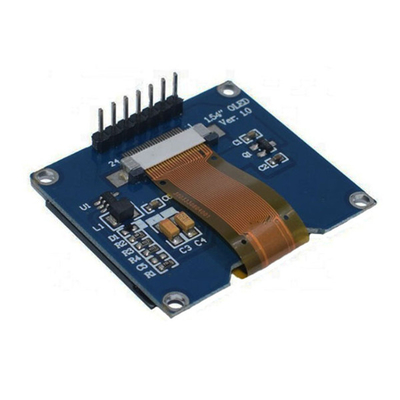

Product Image
