Product Details:
|
| Keywords: | 11.3 Inch Bar TFT | Resolution: | 440x1920 |
|---|---|---|---|
| Interface: | MIPI | Driver IC: | SC7707 |
| Surface Luminance: | 520 Cd/m2 (nits) | Touch Screen: | No |
| Viewing Direction: | IPS, All Viewing Angles | LED Lifetime: | 40,000 Hours |
| Certification: | ISO9001:2015 / ISO14000:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 11.3-Inch Industrial TFT Display,520cd/M2 Industrial TFT Display,16.7M Color Industrial TFT Display |
||
Datasheet Download
SFTO1130GX-7220AN Specification.pdf

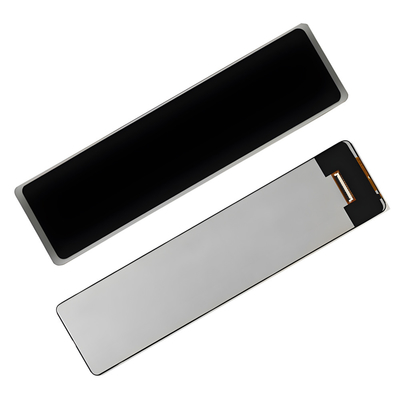

About this item SFTO1130GX-7220AN
Industrial grade TFT display with an 11.3-inch screen and 16.7M color (approximately equivalent to the full RGB color range) display capability, with a resolution of 1920x440 pixels and a brightness of 520cd/m ², is a high-definition, high brightness display device designed specifically for industrial environments. The following is a detailed description of the product:
This 11.3-inch industrial grade TFT display is an ideal choice for applications that require high-definition display and user interaction due to its high resolution, high brightness, and wide viewing angle characteristics.
Features
|
Item |
Contents |
Unit |
| LCD | ||
| LCD Size | 11.3” | inch |
| Panel Type | IPS | -- |
| Display Mode | Normal Black | -- |
| Number of Colors | 16.7M | -- |
| Viewing direction | ALL.O'CLOCK | -- |
| Backlight | White LED x16in Parallel/ Series | -- |
| NTSC | 70% | -- |
| Contrast Ratio | 1000 | -- |
| Interface | MIPI 4Lanes | -- |
| Driver IC | SC7707 | -- |
| Driver IC RAM Size | RAM less | bit |
| Luminance | 520 | cd/m2 |
| Outline Dimension | 64.98(H)x266.44 (V) x4.6 (D) ±0.2 | mm |
| Active area (W×H) | 57.948(H) x252.864 (V) | mm |
| Pixel Arrangement | RGB-stripe | -- |
| Weight | TBD | g |
| Number of Dots | 440xRGBx1920 | Pixel |
| Pixel pitch | 43.9(H)*3*131.7(V) | um |
| Operating Temperature | -20 ～ +70 | ℃ |
| Storage temperature | -30 ～ +80 | ℃ |

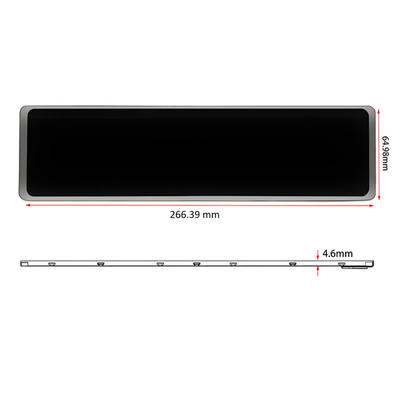

Mechanical Drawing
Pin Description
| PIN No. | SYMBOL | Function |
| 1 | GND | Ground |
| 2 | DSI-D0P | DSI Data differential signal input pins. (Data lane0) |
| 3 | DSI-D0N | DSI Data differential signal input pins. (Data lane 0) |
| 4 | GND | Ground |
| 5 | DSI-D1P | DSI Data differential signal input pins. (Data lane 1) |
| 6 | DSI-D1N | DSI Data differential signal input pins. (Data lane 1) |
| 7 | GND | Ground |
| 8 | DSI-CLK P | DSI CLOCK differential signal input pins |
| 9 | DSI-CLK N | DSI CLOCK differential signal input pins |
| 10 | GND | Ground |
| 11 | DSI-D2P | DSI Data differential signal input pins. (Data lane 2) |
| 12 | DSI-D2N | DSI Data differential signal input pins. (Data lane 2) |
| 13 | GND | Ground |
| 14 | DSI-D3P | DSI Data differential signal input pins. (Data lane 3) |
| 15 | DSI-D3N | DSI Data differential signal input pins. (Data lane 3) |
| 16-17 | GND | Ground |
| 18-19 | IOVCC (NC) | I/O Power supply (NC) |
| 20-23 | NC | NC |
| 24 | RESET | Reset Signal pin (“Low” is enable) |
| 25-26 | NC | NC |
| 27 | GND | Ground |
| 28-29 | LEDK | Backlight LED Cathode |
| 30 | GND | Ground |
| 31 | NC | NC |
| 32-33 | GND | Ground |
| 34 | NC | NC |
| 35-36 | LEDA | Backlight LED Anode. |
| 37 | GND | Ground |
| 38-39 | VDD | Power supply |
| 40 | NC | NC |
Backlight Characteristics
White LED × 16 in Parallel/ Series (Ta = 25°C)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | VF | IF= 120mA | 22.4 | - | 27.2 | V |
| Uniformity | △Bp | - | 80 | - | - | % |
| Luminance for LCD | Lv | IF= 120mA | 470 | 520 | - | cd/m2 |
