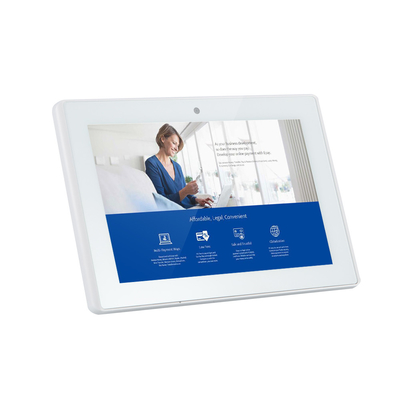

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC
Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC

Large Image :  Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: X808T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC

Description
Product: 8" Wall Tablet Monitor Resolution: 1280x800 Dots
Brightness: 300 Cdm2 Display Area: 173.6×109.2mm (16:10)
CPU: RK3566 RAM: 2GB
ROM: 16GB System: Android 11 OS
WIFI: 802.11b/g/n Multi-Media: Video/Audio/Picture
Speaker: 2×2W Speakers Camera: Standard 200W Pixel Camera
Adapter: One, 12V/2A POE: Optional
Highlight:

Android OS Wall Mounted Tablet

,

IPS Screen Wall Mounted Tablet

,

8-inch Android Tablet Display

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC

About this item, Model number X808T-3566

The 8-inch Android operating system wall mounted tablet display, equipped with an IPS screen and 1280x800 resolution, is a display device designed specifically for commercial and educational environments. The following is a detailed introduction of the product:

1.Display screen specifications
-The 8-inch IPS screen provides a wide viewing angle and excellent color reproduction, suitable for multiple viewing angles.
-The resolution is 1280x800 pixels, ensuring clear and delicate image display.
2. Operating System
-Built in Android operating system, users can enjoy a rich application ecosystem and install various applications.
3. Network Connection
-Support WIFI, facilitate wireless connection to the Internet, data transmission and remote management.
-RJ45 Ethernet interface provides stable wired network connection.
-POE (Power over Ethernet) function allows power supply through Ethernet cables, simplifying wiring.
4. Camera
-Built in camera, supports video calls and remote meetings, suitable for education and business presentations.
5. Wall mounted design
-The device supports wall mounted installation, saving space and making it easy to deploy in various environments.
6. Application Scenarios
-Suitable for restaurant menu display, school classrooms, conference rooms, retail stores, and public information display.
7. Durability
-Designed to meet commercial standards and capable of stable operation under high usage frequency and different environmental conditions.
8. Scalability
-In addition to network interfaces, other interfaces such as USB may also be provided to facilitate the connection of external devices such as keyboards, mice, or storage devices.
9. Security
-The device may have certain security features, such as data encryption and user authentication.
10. Technical Support
-Provide detailed technical support and customized services to meet specific customer needs.

This 8-inch Android operating system wall mounted tablet display, with its high-definition display, powerful network capabilities, and flexible installation options, has become an ideal display and interaction device in commercial and educational environments.
This Android multi touch advertising display monitor provides users with a multifunctional commercial display solution with its high-definition display, multi touch, and powerful network capabilities.


Features


DisplayScreen10.1 inch IPS screen
Resolution1280×800
Brightness300 cdm2
Contrast800:01:00
Screen scale/Display area16:10/ Display area : 173.6×109.2mm
ConfigurationCPURockchip RK3566 quad core processor, clocked 2.0G
RAM2GB
ROM16GB
SystemAndroid 11 OS
NetworkWIFI802.11b/g/n
EthernetSupports connection to the RJ45 network interface
BluetoothBluetooth 4.0
3G/4GSupport external 3G/4G USB dongle
JackSD1×SD card slots (max support 32GB)
Mini USB1×USB OTG (through it to debug the machine, brush the system program)
USB 2.03×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ451×RJ45 network interface
POE1×POE interface
Earphone1×3.5mm headphone jack
Power1×4.0mm power DC jack
Multi-MediaVideoSupport MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
AudioSupport MP3, WMA, AAC and so on
PictureJPEG,JPG
Other parametersWireless mouse keyboardSupport
Speaker2×2W speakers
CameraStandard 200W pixel camera (500W pixel camera optional)
OSD languageChinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software supportFree installation applications (maps, games, e-mail, self developing apps, etc.)
AttachmentUS, EU, UK, AU AdapterOne, specifications: 12V/2A
Desktop BracketOne
Wall mountedOne
Remote controlNo
User's ManualOne
Theftproof cover plateOne, (can cover insert devices, such as U disk or SD card, to prevent theft)



Package


Body SizeColor Box10pcs/Carton
LengthWidthThicknessLengthWidthHeightLengthWidthHeight
2451702538522560470400320
N.W0.64KGN.W0.96KGG.W10.6KG

Unit: mm


Mechanical Outline Drawing

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC 0
Product Image

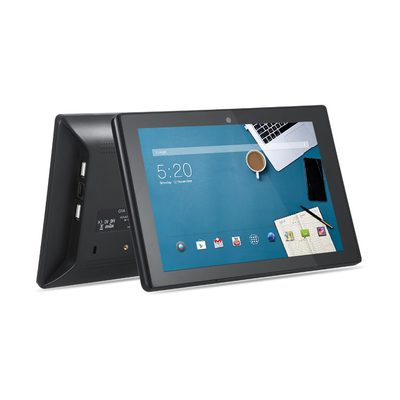

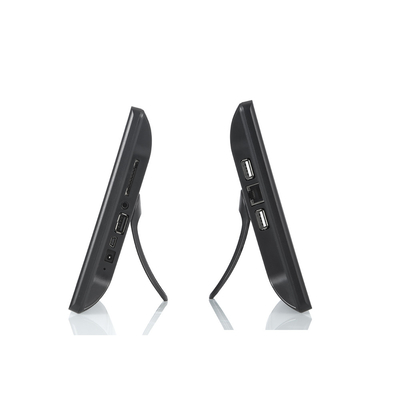

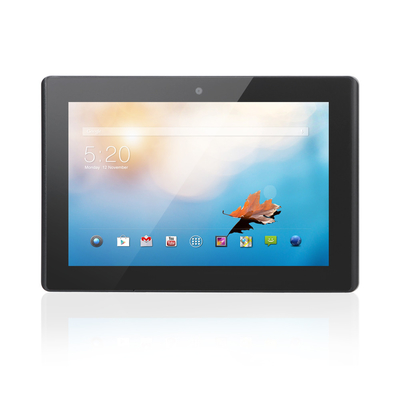

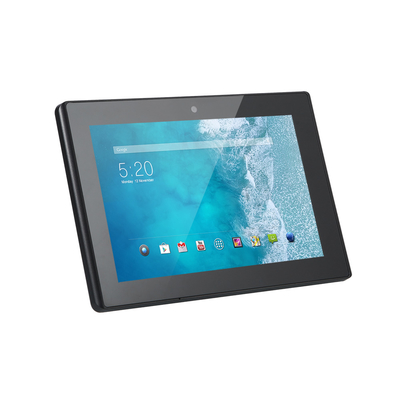

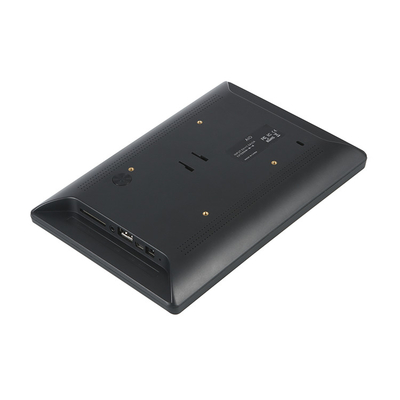

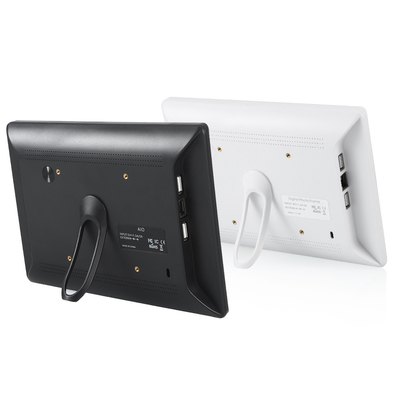

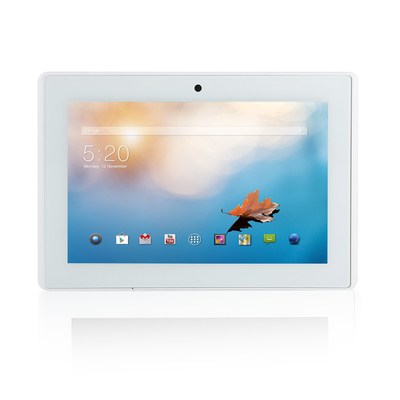

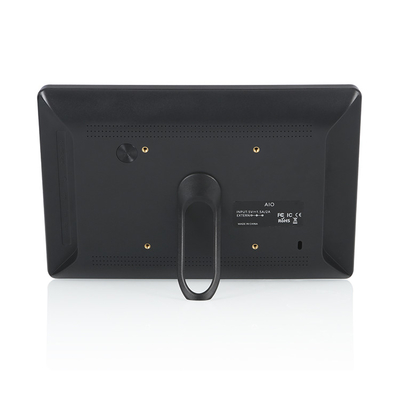

Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC 1Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC 2Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC 3Wall Mounted 8 Inch Android Touchscreen Display With 1280x800 IPS Screen All In One Tablet PC 4
