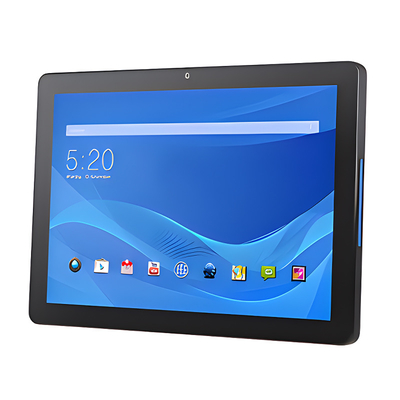

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home
10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home

Large Image :  10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SH101T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home

Description
Product: 10.1" Android Intelligent Central Control Screen Resolution: 1280x800 Dots
Brightness: 300 Cdm2 Display Area: 215×135mm (16:10)
CPU: RK3566 RAM: 2GB
ROM: 32GB System: Android 11 OS
WIFI: 802.11b/g/n Multi-Media: Video/Audio/Picture
Speaker: 2×2W Speakers Camera: Standard 200W Pixel Camera
Adapter: One, 12V/2A POE: Optional
Highlight:

RJ45 Android Touch Screen Display

,

POE Android Touch Screen Display

,

android tablet smart home control panel


10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home Product Introduction

I. Product Overview
This 10.1-inch landscape Android touch display screen offers an exceptional performance and a wealth of features. With a high-definition resolution of 1280*800, it is equipped with Android 11 system, 2GB of RAM and 32GB of storage capacity, meeting all your various needs.

II. Interface Introduction
1. TF interface: Allows you to expand the storage capacity easily, enabling you to store more photos, videos and documents.
2. Type-C interface: Supports fast charging and data transmission, making your usage more convenient.
3. RJ45 interface: Provides a stable wired network connection to ensure a smooth usage in a network environment.
4. RS-485 interface: Applicable in specific fields such as industrial control, enabling efficient communication between devices.
5. Power jack interface: Provides a reliable power input for the device.

III. Feature Highlights
1. Camera and Mic: Equipped with a built-in camera and microphone, facilitating video calls, taking photos and recording videos, capturing wonderful moments in life.
2. WIFI and Bluetooth: Supports wireless network connection and Bluetooth function, allowing you to easily connect various devices and enjoy wireless freedom.
3. POE power supply: Supports Power over Ethernet, eliminating the need for an additional power adapter, simplifying wiring and improving usage convenience.
4. LED RGB light: Adjustable RGB lighting creates a personalized atmosphere for you.
5. Wall mounted bracket: Comes with a wall-mounted bracket, making it convenient for you to install the display screen on the wall, saving space and providing a better viewing angle.

IV. Applicable Scenarios
This display screen is suitable for multiple scenarios, such as smart home control centers, commercial displays, education and training. In smart homes, it can serve as an intelligent control panel to achieve centralized control of various devices. In commercial displays, it can show product information and advertising promotions. In education and training, it can be used as an electronic whiteboard to improve teaching efficiency.
In conclusion, this 10.1-inch landscape Android touch display screen, with its rich interfaces and powerful functions, will bring you a new usage experience. Whether in home, business or education fields, it is your ideal choice.


Features

DisplayPanel10.1" high-definition full view screen fully bonded
Resolution1280×800
Display modeNormally black
Viewing angle85/85/85/85(L/R/U/D)
Luminance300 cd/m2
Contrast1000:1
Aspect Ratio16:10
SystemCPURockchip rk3566 quad core A55 processor, clocked 1.8G
RAM2GB ( 4GB optional )
Internal memory32GB
Operation systemAndroid 11 system
Touch screen10-Point capacitive touch
NetworkWIFI and BluetoothAP6212 ( 802.11b/g/n and BT5.2 ) 【AP6256 ( 802.11a/b/g/n/ac and BT5.0 ) optional】
Ethernet100M ethernet
Zigbee Protocoloptional
Matter Protocoloptional
InterfaceTFTF card slots
Type-CUSB2.0 supports OTG functionality
RJ45Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4, 25.5W )
RS-485Communicating with RS485 devices
Power jackDC power input
Power jack12V positive and negative electrode wire interface
Multi-MediaVideoMPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.
AudioMP3/WMA/AAC etc.
PictureJPEG
Other parametersMicrophoneTwo microphones
Speaker2×2W BOX chamber horn
LED light stripRGB
Camera2MP from a conventional perspective
Working temp0-50degree
OSD languageMulti-language
Certificates3C,FCC,CE,ROHS etc.
AccessoriesAdapternon
User's Manualyes
UsageWall hanging (standard accessory)



Package


Body SizeColor Box10pcs/Carton
LengthWidthThicknessLengthWidthHeightLengthWidthHeight
24516313.528519555570300220
N.W0.67KGN.W0.84KGG.W9.4KG

Unit: mm


10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home Mechanical Outline Drawing

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 0

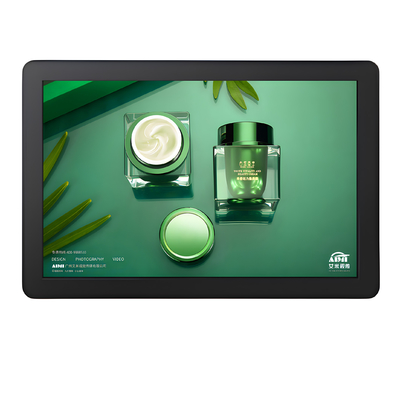

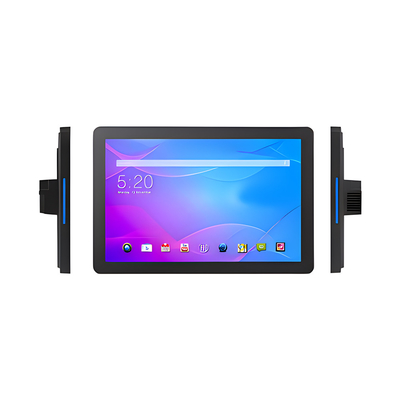

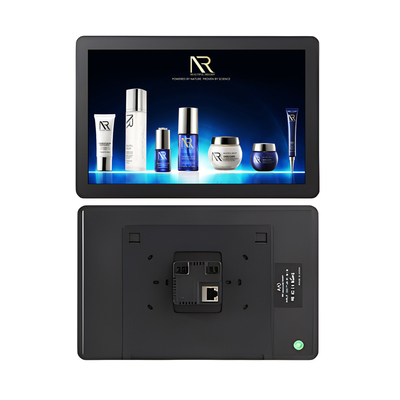

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home Product Details

10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 110 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 2
10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 3
10 Inch Landscape Android Touch Screen Display KR3566 Tablet PC For Smart Home 4
