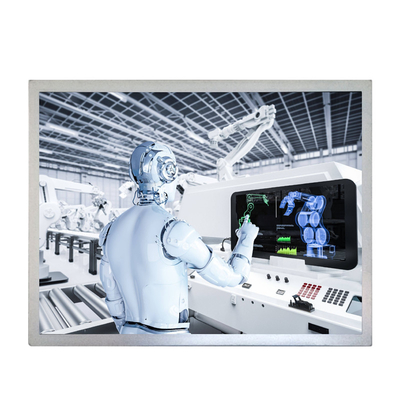

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits

Large Image :  15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: DV150X0M-N10
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits

Description
Product: 15 Inch Industrial TFT Display Resolution: 1024 RGB X 768
Surface Luminance: 350cd/m2(nits) Interface: LVDS Interface
Viewing Direction: IPS, All Viewing Angle (85/85/85/85) Pin Number: 20pins
Outline Dim.: 326.5(H) × 253.5(V) × 9.7(T) (mm) Active Area: 304.128(H) × 228.096(V) (mm)
Touch Screen: With CTP Optional Surface Treatment: Hard Coating(3H)
Display Colors: 16.7 M Haze: 25%
Operating Temp.: -20℃ To +70℃ Storage Temp.: -30℃ To +80℃
LED Life Time: 50,000 Hours Back-light: E-LED Light Bar Type
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

DV150X0M-N10

,

BOE Industrial TFT LCD Display

,

tft lcd display manufacturer

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits Product Introduction

DV150X0M-N10 is a color active matrix TFT LCD MDL using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This industrial TFT display has a 15 inch diagonallymeasured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripeand this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a lowreflection and higher color type. BOE DV150X0M-N10 industial TFT display is designed with capacitive touch panel, single touch and multi-touch optional. The TFT LCD module BOE DV150X0M-N10 is with 350cd/m2 luminance surface brightness.



Looking for sunlight readable higher brightness version? I recommend SFTO1500XC-7121AN15 (1500 cd/m2) and SFTO1500XC-7121AN10 (1000 cd/m2) to you, contact us for more details.



Product: 15 Inch Industrial TFT Display
Resolution: 1024 RGB X 768
Surface Luminance: 350cd/m2(nits)
Interface: LVDS Interface
Pin Number: 20pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Outline Dim.: 326.5(H) × 253.5(V) × 9.7(T) (mm)
Active Area: 304.128(H) × 228.096(V) (mm)
Surface Treatment: Hard Coating(3H)
Haze: 25%
Touch Screen: With CTP Optional
Display Colors: 16.7 M
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃
Back-light: E-LED Light Bar Type
LED Life Time: 50,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: REACH & RoHS Compliant



Features

> LVDS interface with 1 pixel / clock

> High-speed response

> Low color shift image quality

> 6-bit +FRC color depth, display 16.7M colors

> Wide viewing angle

> DE (Data Enable) only mode

> ADS technology is applied for high display quality

> RoHS compliant



15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits Product Drawing

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 015 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 1


Electrical Specifications

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 2



Backlight Unit Specification

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 3



Optical Specifications

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 4



Electrical Specifications

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 2

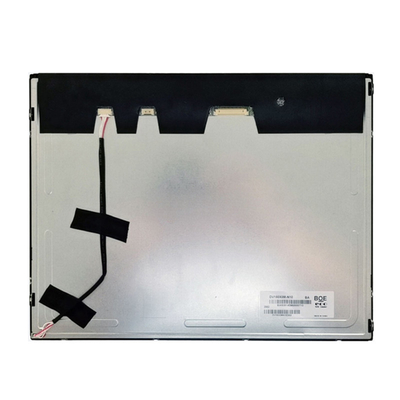

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits Product Image

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 615 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 7
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 8
Factory Facilities and Certificates
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 915 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 10

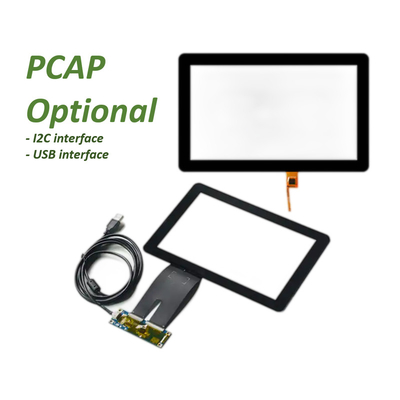

Projected Capacitive (PCAP) Touch Screen


Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 11
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 12

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 13
15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 14

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 15

15 Inch DV150X0M-N10 BOE Industrial TFT LCD Display LVDS 1024x768 Pixel 350 Nits 16
