8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins

8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins

Large Image :  8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1010LX-7047A-N
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins

Description
Product: 10.1 Inch Industrial TFT Display Resolution: 1280 RGB X 800
Viewing Direction: IPS, All Viewing Angle (85/85/85/85) Pin Number: 40pins
Interface: 8 Bits-LVDS Interface Surface Luminance: 420 Cd/m2(nits)
Outline Dim.: 229.46 (H) X149.1(V) X 2.5(T) (mm) Active Area: 216.96 (H) X 135.6(V) (mm)
Touch Screen: RTP And CTP Optional Surface Treatment: Hard Coating(3H)
Display Colors: 16.7 M Connection: ZIF
Operating Temp.: -20℃ To +70℃ Storage Temp.: -30℃ To +80℃
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

8 bits LVDS Industrial TFT Display

,

RGB 1280x800 Industrial TFT Display

Industrial Grade TFT Display 10.1 Inch LVDS 1280x800 Pixels 40 Pins​ Product Introduction

SAEF Technology SFTO1010LX-7047A-N Industrial TFT display is a 10.1inch IPS type full viewing angles screen with resolution of 1280x800 pixels. This industrial grade TFT LCD Display Module supports 8 bits-LVDS interface. SFTO1010LX-7047A-N high brightness PCAP TFT LCD screen is 3.9V(Max value) for operating voltage. Vdd is from 2.3V to 3.6V.
SFTO1010LX-7047A-N is designed with capacitive touch panel, single touch and multi-touch optional. The TFT module SFTO1010LX-7047A-N is with 420cd/m2 luminance. If you would like to use it as landscape mode or increase the luminance, please contact with us for more technical support.

The TFT touch LCD SFTO1010LX-7047A-N Widely used in meter and instruments, GPS device, POS terminal, cash reader, scanner, home automation, conference phone, analyzers, home appliance, home automation, security system, etc.

Product: 10.1 Inch Industrial TFT Display
Resolution: 1280 RGB X 800
Interface: 8 Bits-LVDS Interface
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Pin Number: 40pins
Surface Luminance: 420 Cd/m2(nits)
Outline Dim.: 229.46 (H) X149.1(V) X 2.5(T) (mm)
Active Area: 216.96 (H) X 135.6(V) (mm)
Touch Screen: RTP And CTP Optional
Display Colors: 16.7 M
Surface Treatment: Hard Coating(3H)
Connection: ZIF
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: REACH & RoHS Compliant


Industrial Grade TFT Display 10.1 Inch LVDS 1280x800 Pixels 40 Pins​ Product Drawing
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 0
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 1

Absolute Maximum Ratings
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 2

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should beless than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, andthe back ground will become darker at high temperature operating.


DC Characteristics
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 3

Note 1: Be sure to apply VDD and VGL to the LCD first, and then apply VGH.
Note 2: VDD setting should match the signals output voltage of customer’s systemboard.
Note 3: Typical VCOM is only a reference value, it must be optimized according to each LCM. Be sure touse VR.


Optical Characteristics
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 4
Pin Definition
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 5
Industrial Grade TFT Display 10.1 Inch LVDS 1280x800 Pixels 40 Pins​ Product Image
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 68 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 7
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 8
Factory Facilities and Certificates
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 98 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 10

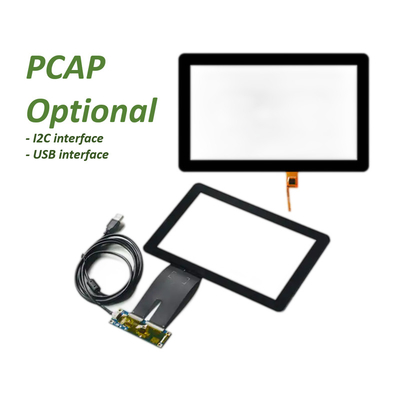

Projected Capacitive (PCAP) Touch Screen


Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 11
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 12

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 13
8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 14

8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 15

8 Bits LVDS Industrial TFT Display 10.1 Inch RGB 1280x800 Pixels 40 Pins 16


Search keyword: industrial TFT display 10.1 inch, PCAP TFT LCD 10.1 inch, PCAP TFT LCD 10.1 inch, tft10.1 ", 10.1 inch tft lcd, 10.1" tft lcd, 10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display, 10.1 inch tft display, tft display 10.1 inch, tft display 10.1", 10.1 inch tft lcd display, 10.1" tft screen, 10.1 inch tft screen, tft screen 10.1 inch, tft screen 10.1", 10.1 inch tft lcd screen, 1280x800 TFT, 10.1 inch 1280x800, 10.1 inch LVDS
