10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor

10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor
10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor

Large Image :  10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: X101T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor

Description
Product: 10.1" Android Multi-touch Display Resolution: 1280x800 Dots
Brightness: 300 Cdm2 Display Area: 215×135mm (16:10)
CPU: RK3566 RAM: 2GB
ROM: 16GB System: Android 11 OS
WIFI: 802.11b/g/n Multi-Media: Video/Audio/Picture
Speaker: 2×2W Speakers Camera: Standard 200W Pixel Camera
Adapter: One, 12V/2A POE: Optional
Highlight:

Wall Mounted Android Advertising Display

,

10 Inch Android Advertising Display

,

RJ45 Port LCD Monitor


About this item, Model number X101T-3566

Wall mounted 10 inch Android multi touch advertising display with a resolution of 1280x800 is an ideal choice for commercial display and public information dissemination. The features of this monitor are as follows:



  • Display screen: A 10 inch TFT LCD screen with a resolution of 1280x800 pixels ensures clear and delicate images.
  • Multi touch: Supports multi touch functionality, making user interaction more intuitive and flexible.
  • Operating System: Built in Android operating system, users can install and run various applications as needed.
  • VESA compatible: Following the VESA standard, it has 100x100mm mounting holes for easy installation on various VESA compatible wall brackets.
  • POE function: Supports Power over Ethernet (POE), transmitting data and power through a single Ethernet cable, simplifying wiring requirements.

  • RJ45 port: Provides RJ45 Ethernet interface, supports wired network connection, and ensures stable data transmission.

  • Wall mounted installation: Designed for wall mounted installation, suitable for displaying advertisements or information in shopping malls, hotels, offices, and other places.

  • Application scenarios: Suitable for various commercial environments such as digital signage, advertising playback, information announcements, interactive applications, etc.

  • Durability: Adopting industrial grade design to ensure stable operation in various environments.

  • Scalability: Provides multiple interfaces, such as USB, HDMI, etc., for easy connection to external devices.


This Android multi touch advertising display monitor provides users with a multifunctional commercial display solution with its high-definition display, multi touch, and powerful network capabilities.


Features


Display Panel 10.1" high-definition full view screen
Resolution 1280×800 (1920x1200 optional)
Viewing angle 85/85/85/85(L/R/U/D)
Brightness 300 cd/m2 (500 cd/m2 optional)
Contrast 1000:1
Screen scale/Display area 16:10/ Display area : 215×134mm
System CPU Rockchip RK3566 Quad Core 64 bit Cortex-A55
RAM 2GB (4GB optional)
Internal memory 16GB (32GB optional)
Operation system Android 11 OS
Touch screen 10-Point capacitive touch
Network WIFI 802.11b/g/n
Ethernet 100M ethernet
Bluetooth BT 5.2
4G/5G Cellular network Optional
Interface SD 1×SD card slots
Type-C USB 1×USB OTG (through it to debug the machine, brush the system program)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
USB 3.0 1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
Power 1×4.0mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Microphone One microphones
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera
Working temp 0-50degree
OSD language Multi-language
Certificates 3C,FCC,CE,ROHS etc.




Package:

Body Size Color Box 10pcs/Carton
Length Width Thickness Length Width Height Length Width Height
245 170 25 385 225 60 470 400 320
N.W 0.64KG N.W 0.96KG N.W 10.6KG

Unit: mm



Outline Drawing

10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 0

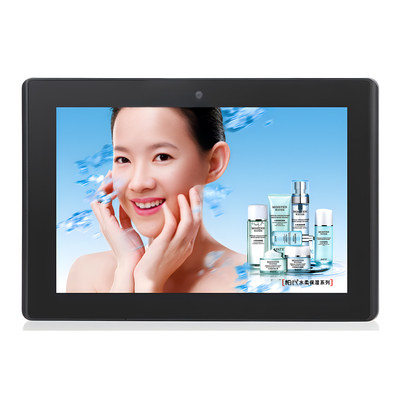

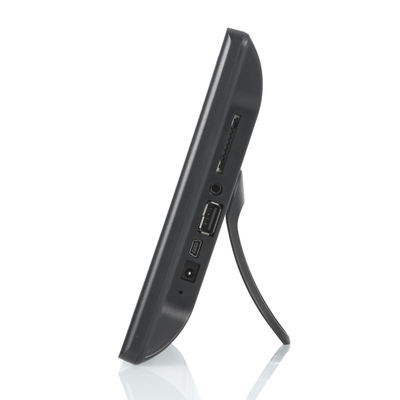

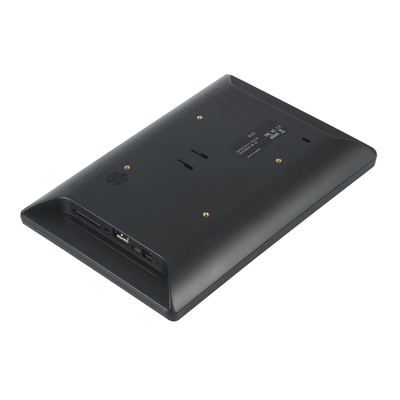

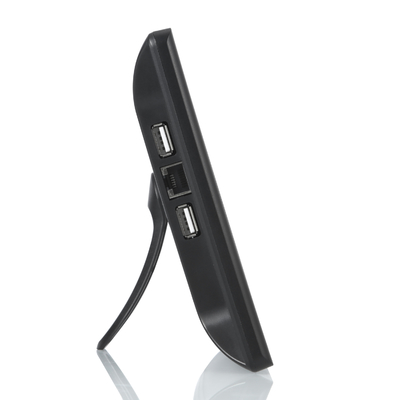

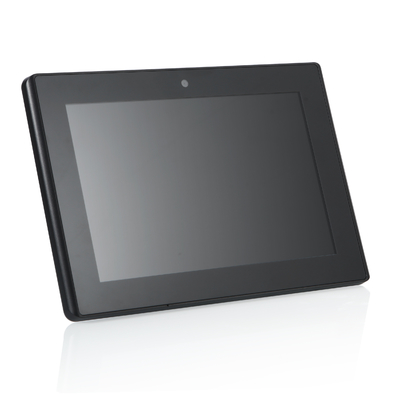

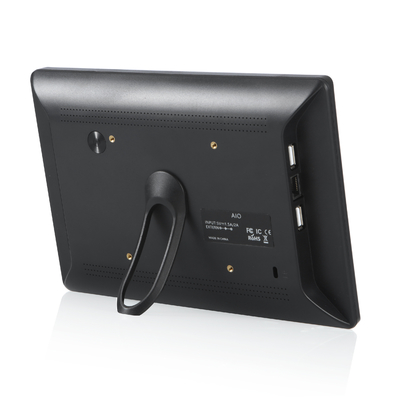

Product Image
10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 1
10 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 210 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 310 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 410 Inch Wall Mounted Android Advertising Display With1280x800 Multi Touch Wifi POE RJ45 Port LCD Monitor 5
