10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Introduction
Size:10.1 inch FULL HD IPS screen(14 inch for optional)
Resolution:1280*800/1920×1080
Installation: L-TYPE DESKTOP ANDROID ALL-IN-ONE
Features:
1. CPU: High Performance and Energy Saving CPU KR3128/A64/KR3566/KR3568//RK3288/KR3399
2. RAM: 2GB (1GB/4GB/optional) (8GB OEM)
3. ROM: 8GB (16G optional) (32G / 64G OEM)
4. Screen: 10inch/14INCH I PS Screen(Highlight LED Backlight)
5. Touch Screen: 10 Points Capacitive multi-touch screen optional
6. Operating System: Android 6.0/7.1/8.1/9.0/11......
7.Interface: DC input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD card(POE power/HDM-I Optional)
8.Installation method:Wall mounted/In Wall/Holder/Stand/OEM Open frame
SFLR102T Android boots up and automatically rotates pictures or videos
Conference Video | Service Rater I Desktop Advertising Display | Food Order Machine
High & Low Temperature Testing Passed
TD series could be operated under the teperature from20C to 60°C
BOOT-UP LOGOCUSTOM
Display screen parameters:
Screen ->10.1 inch FULL HD IPS screen
Resolution ->1280×800
Brightness-> 300 cdm2
Contrast >1000:1
Screen scale/Display area->16:10/ Display area : 219×137mm
Standard Configuration:
CPU-> Rockchip RK3128 quad core arm cortex-a7 processor, main frequency 1.4GHz
RAM-> 1GB
ROM ->16GB
System ->Android 7.1 OS
Network Configuration:
WIFI-> 802.11b/g/n
Ethernet ->Supports connection to the RJ45 network interface
Bluetooth ->BT 4.2
3G/4G ->Support external 3G/4G USB dongle
Interface information:
TF-> 1×TF card slots (max support 32GB)
USB 2.0-> 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45-> 1×RJ45 network interface
Earphone-> 1×3.5mm headphone jack
HDMI out->1xHDMI out
Power-> 1×4.0mm power DC jack
Multi-Media information:
Video-> Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio--> Support MP3, WMA, AAC and so on
Picture--> JPEG,JPG
Other parameters:
Wireless mouse keyboard--> Support
Speaker--> 2×2W speakers
Camera-->Standard 200MP (500MP optional)
OSD language -->Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support -->Free installation applications (maps, games, e-mail, self developing apps, etc.)
Accessory information:
Adapter -->One, specifications: 12V/2A
Desktop Bracket--> One Remote control Optional
User's Manual--> One
Product size information:
Outer Box: 10pcs/Carton
Length Width Height :71*45*33CM
N.W :13KG
G.W: 14KG
Application:
Application:
face recognition, robot display, pos system,security monitoring, smart home, self-service terminal, medical device display, advertising information display, rail traffic display,video call.etc.
| Product: |
10.1 Inch Android Monitor |
Resolution: |
1280×800 |
| Brightness: |
300 Cdm2 |
Screen Scale/Display Area: |
16:10/ Display Area : 219×137mm |
| CPU: |
Rockchip RK3128 Quad Core Arm Cortex-a7 Processor, Main Frequency 1.4GHz |
RAM: |
1GB |
| ROM: |
16GB |
System: |
Android 7.1 OS |
| WIFI: |
802.11b/g/n |
Network: |
WIFI/Ethernet/Bluetooth/3G/4G/microphone |
| Interface: |
TF/USB 2.0/RJ45/Earphone/HDMI Out/Power |
Multi-Media: |
Video/Audio/Picture |
| Wireless Mouse Keyboard: |
Support |
Speaker: |
2×2W Speakers |
| Camera: |
Standard 2MP |
OSD Language: |
Chinese, English, German, Korean, Russian, French, Spanish, Arabia Etc OSD Operations |
| Software Support: |
Free Installation Applications (maps, Games, E-mail, Self Developing Apps, Etc.) |
Adapter: |
One, Specifications: 12V/2A |
| Standard Configuration: |
Capacitive Touch Screen, Camera, Mic, RJ45, WIFI, Bluetooth |
User's Manual: |
Yes |

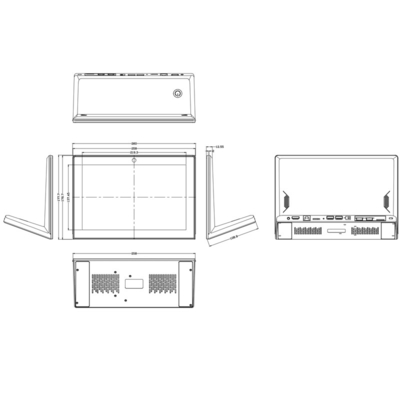

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Drawing

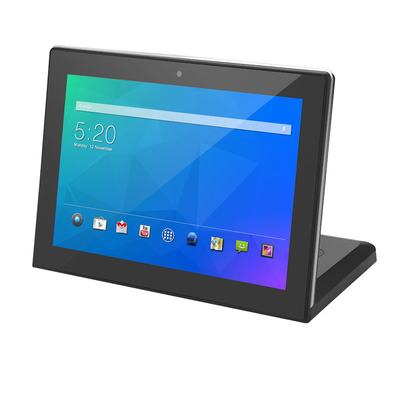

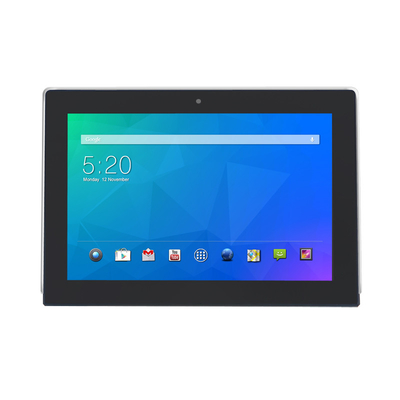

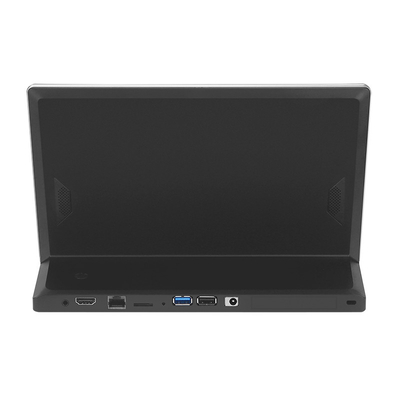

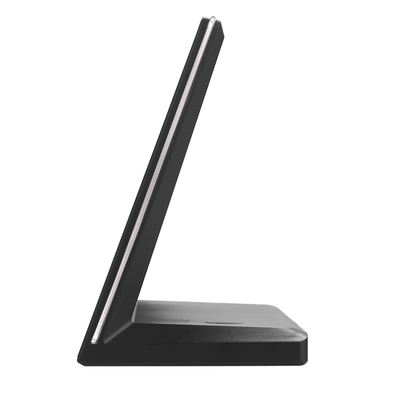

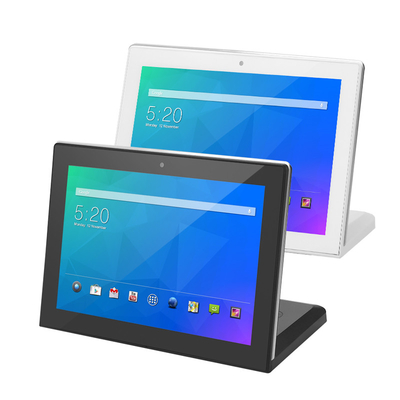

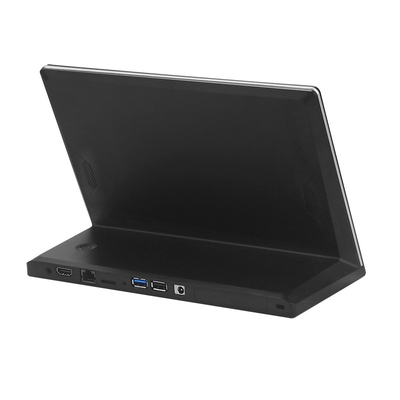

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Image
