10.1 Inch IPS Android Touchscreen Display KR3288 With 1280x800 All In One Tablet PC Monitor

10.1 Inch IPS Android Touchscreen Display KR3288 With 1280x800 All In One Tablet PC Monitor Product Introduction

Discover our extraordinary 10.1 - inch round LCD display. Its unique circular form breaks away from the conventional, presenting a distinct aesthetic charm that effortlessly makes it the focal point in any environment, whether it's a trendy retail store, a high - tech automotive interior, or a smart - equipped home.


Display Performance
This display is equipped with top - tier IPS technology, ensuring consistent color accuracy and wide viewing angles. With a resolution of 1280×800, every detail is rendered with precision, while the 300 cd/m² brightness and 800:1 contrast ratio guarantee vibrant colors and sharp images, be it for captivating digital signage graphics or presenting critical data. The 16:10 screen scale and 215×135mm display area offer a spacious and comfortable visual experience.


Configuration
CPU: Powered by the Rockchip RK3288 quad - core processor, clocked at 2.0G, it provides high - performance computing while maintaining energy efficiency, ensuring smooth operation for various applications.
Memory: With 2GB of RAM, multitasking is a breeze, allowing for seamless switching between different functions. The 16GB ROM offers ample storage space for apps, files, and media.

Operating System: Available with Android 6.0/7.1/8.1/9.0, you can access a vast library of applications on the Google Play Store, customizing the display to your specific needs.


Connectivity and Ports
Network: It offers versatile network options. The 802.11b/g/n WIFI ensures wireless connectivity, while the RJ45 Ethernet port provides a stable, high - speed wired connection. Bluetooth 4.0 enables easy pairing with other devices. Additionally, it supports external 3G/4G USB dongles for mobile network access.


Jack and Interfaces: There's 1×SD card slot (max support 32GB) for expanding storage. The 1×Mini USB OTG is perfect for debugging the machine and flashing system programs. Three USB 2.0 interfaces support a wide range of peripherals like U disks, mice, keyboards, and printers. Completing the package are a 3.5mm headphone jack for audio output and a 4.0mm power DC jack.


Multi - Media Support
The display supports multiple video formats including MPEG - 1, MPEG - 2, and MPEG - 4, making it an ideal choice for various multimedia applications.
This 10.1 - inch round LCD display is not just a screen; it's a comprehensive solution for modern digital needs.


Application

·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course., etc.

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Wide Temperature of Top of -30℃ to +80℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.

Resolution determines how detailed a bitmap image is.
In general, the higher the resolution of the image, the more pixels it contains, the sharper the image, and the better the quality of the print. At the same time, it also increases the storage space taken up by the files.
Resolution is described in units such as (DPI dots per inch), LPI (lines per inch), and PPI (pixels per inch). But only LPI is a scale that describes optical resolution. Although DPI and PPI are also units in the category of resolution, they have different meanings than LPI. Moreover, LPI and DPI cannot be converted, and can only be estimated empirically. In addition, PPI and DPI are often mixed. But there are also differences in the areas they use. Technically, "pixels" only exist in the field of computer display, while "dots" only appear in the field of printing or printing.

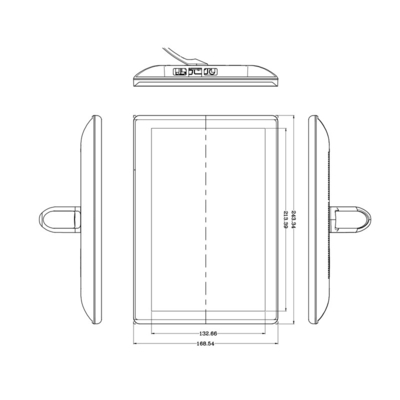

10.1 Inch IPS Android Touchscreen Display KR3288 With 1280x800 All In One Tablet PC Product Drawing

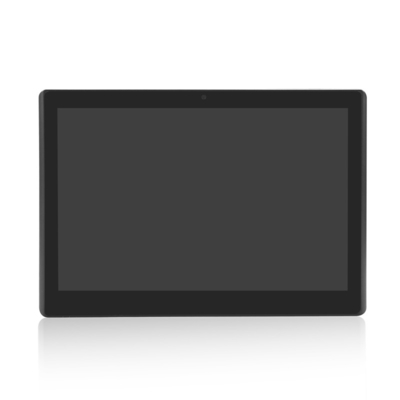

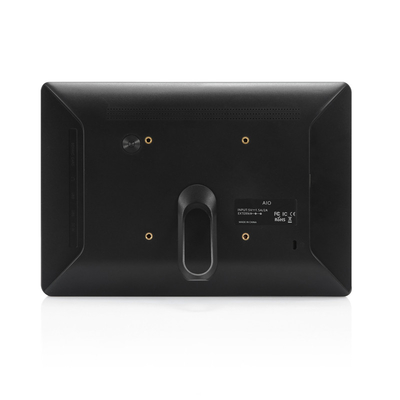

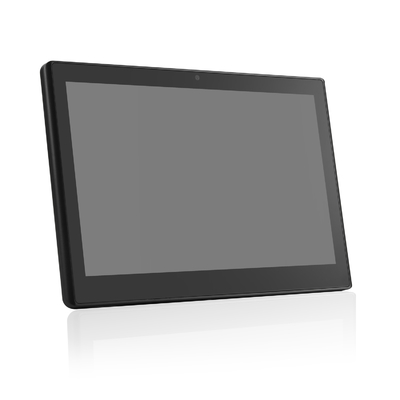

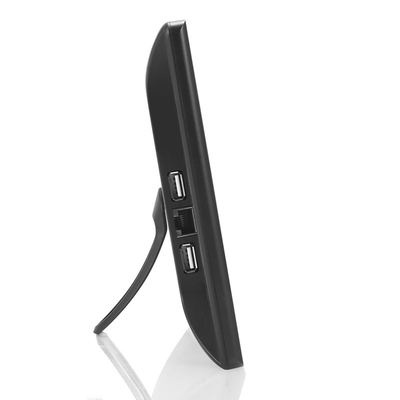

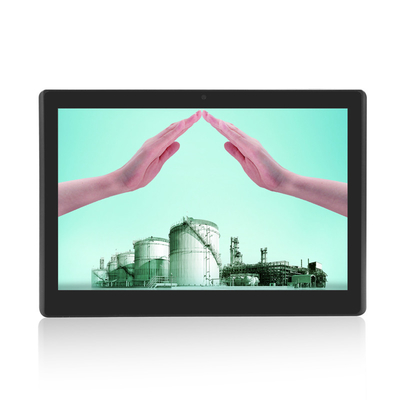

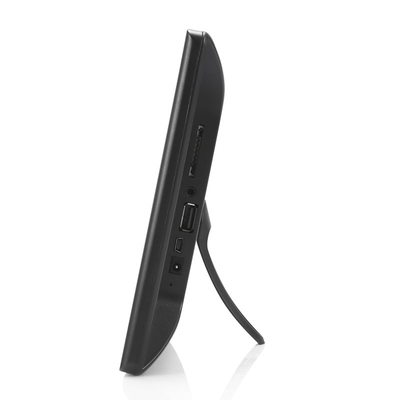

10.1 Inch IPS Android Touchscreen Display KR3288 With 1280x800 All In One Tablet PC Product Image

Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
