Product Details:
|
| Keywords: | 7 Inch HDMI Display | Resolution: | 800*480 |
|---|---|---|---|
| CTP Interface: | USB To IIC | Compatible With: | Raspberry Pi、BB Black、Banana Pi |
| Support: | HDMI1.3、HDMI1.4、HDCP1.4、HDCP2.2 | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 800x480 7 Inch HDMI Display,Raspberry Pi 7 Inch HDMI Display,800x480 Industrial TFT Display |
||
HDMI 7 inch Display, 7 inch PCAP TFT Display
SFRA700H-800480ACT-01 is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1. 4.3 inch IPS screen, hardware resolution of 800×480 dots resolution.
2. Capacitive 5-point touch control.
3. Tempered glass capacitive touch panel, hardness of >=6H.
4. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 requires the optional adapter DSI-Cable-15cm.
5. Drive the LCD directly through the Raspberry Pi's DSI interface with refresh rates up to 60Hz.
6. When used with Raspberry Pi, Raspberry Pi OS / Ubuntu / Kali and Retropie are supported, drive-free.
7. Support for controlling backlight brightness through software.
| Keywords: | 7 Inch HDMI Display | Resolution: | 800*480 |
|---|---|---|---|
| CTP Interface: | USB To IIC | Compatible With: | Raspberry Pi,BB Black,Banana Pi |
| Support: | HDMI1.3,HDMI1.4,HDCP1.4,HDCP2.2 | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Version | 01 | ||
| Signal supported | HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard | input | HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch interface | 6 pin | FPC-0.5-6PIN (horizontal) | |
| Display interface | RGB 50 pin | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V(+/-0.5V) | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | <0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER,MENU,UP,DOWN,EXIT | ||

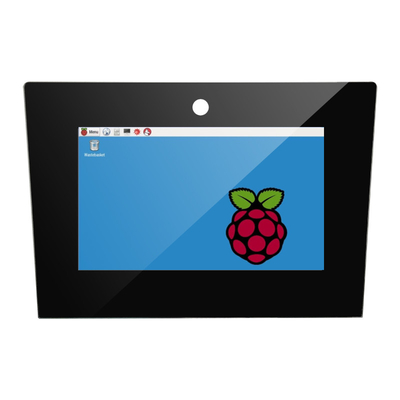

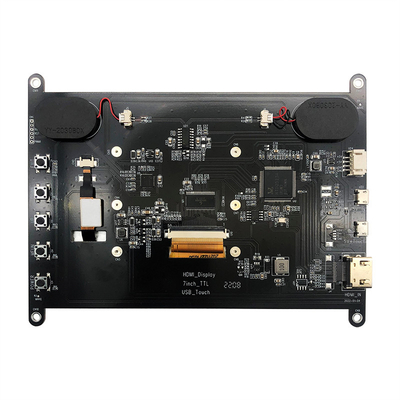

HDMI 7 inch Display, 7 inch PCAP TFT Display Product Image
![]()
![]()
HDMI interface pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |
USB( 5V ) pin definition
| 1 | VCC |
| 2 | NC |
| 3 | NC |
| 4 | NC |
| 5 | GND |
USB TP Pin definition
| 1 | VCC |
| 2 | D- |
| 3 | D+ |
| 4 | NC |
| 5 | GND |
Speaker interface Pin Definition
| 1 | ROUT+ |
| 2 | ROUT- |
| 3 | LOUT- |
| 4 | LOUT+ |
6,LCD pin definition
| 1 |
VLED+
|
Power for LED backlight (Anode)
|
| 2 |
VLED+
|
Power for LED backlight (Anode)
|
| 3 |
VLED-
|
Power for LED backlight (Cathode)
|
| 4 |
VLED-
|
Power for LED backlight (Cathode)
|
| 5 |
GND
|
Power ground
|
| 6 |
VCOM
|
Common voltage
|
| 7 |
DVDD
|
Power for Digital Circuit
|
| 8 |
MODE
|
DE/SYNC mode select
|
| 9 |
DE
|
Data Input Enable
|
| 10 |
VS
|
Vertical Sync Input
|
| 11 |
HS
|
Horizontal Sync Input
|
| 12 |
B7
|
Blue data(MSB)
|
| 13 |
B6
|
Blue data
|
| 14 |
B5
|
Blue data
|
| 15 |
B4
|
Blue data
|
| 16 |
B3
|
Blue data
|
| 17 |
B2
|
Blue data
|
| 18 |
B1
|
Blue data
|
| 19 |
B0
|
Blue data(LSB)
|
| 20 |
G7
|
Green data(MSB)
|
| 21 |
G6
|
Green data
|
| 22 |
G5
|
Green data
|
| 23 |
G4
|
Green data
|
| 24 |
G3
|
Green data
|
| 25 |
G2
|
Green data
|
| 26 |
G1
|
Green data
|
| 27 |
G0
|
Green data(LSB)
|
| 28 |
R7
|
Red data(MSB)
|
| 29 |
R6
|
Red data
|
| 30 |
R5
|
Red data
|
| 31 |
R4
|
Red data
|
| 32 |
R3
|
Red data
|
| 33 |
R2
|
Red data
|
| 34 |
R1
|
Red data
|
| 35 |
R0
|
Red data(LSB) |
| 36 |
GND
|
Power Ground
|
| 37 |
DCLK
|
Sample clock
|
| 38 |
GND
|
Power Ground
|
| 39 |
L/R
|
Left / right selection
|
| 40 |
U/D
|
Up/down selection
|
| 41 |
VGH
|
Gate ON Voltage
|
| 42 |
VGL
|
Gate OFF Voltage
|
| 43 |
AVDD
|
Power for Analog Circuit
|
| 44 |
RESET
|
Global reset pin.
|
| 45 |
NC
|
No connection
|
| 46 |
VCOM
|
Common Voltage
|
| 47 |
DITHB
|
Dithering function
|
| 48 |
GND
|
Power Ground
|
| 49 |
NC
|
No connection
|
| 50 |
NC
|
No connection
|
Touch panel Pin Definition
| 1 | VDD | |
| 2 | GND | |
| 3 | TP-INT | |
| 4 | TP-RST | |
| 5 | TP-SCL | |
| 6 | TP-SDA |
