Product Details:
|
| Keywords: | 5" HDMI Round Display | Resolution: | 1080*1080 Pixels |
|---|---|---|---|
| Support: | HDMI1.3、HDMI1.4、HDCP1.4、HDCP2.2 | Compatible With: | Raspberry Pi、BB Black、Banana Pi |
| CTP Interface: | USB To IIC | Surface Luminance: | 400 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | HDMI Round LCD Display,Raspberry Pi4 Round LCD Display,1080x1080 Industrial TFT Display |
||
HDMI 5 inch Display, 5 inch PCAP TFT Display Product Features
SFHDMI500H-108108A-CT is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1- The module perfectly presents the HDMI digital signal output from the PC on the 1080*1080 LCD screen.
2- Support HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards. HDMI signal source is compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi, etc.
3- TOUCH is from USB to I2C, no need to install drivers.
4- The design is mainly used on the Raspberry Pi display, and it can also be used on other HDMI industrial control small screen touch devices. When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch.
5- when used as a computer display, it supports Windows 7/8/10, five-point touch, driver-free.
TFT Display Feature:
| Parameter | Specification | Unit | Remark |
| Active Area | 127.008 (H) ×127.008 (V) | mm | circle |
| Number of Pixels | 1080(H) RGB × 1080(V) | Pixel | |
| Pixel Pitch | 0.1176 (H) ×0.1176 (V) | mm | |
| Pixel Arrangement | 1pixel 2domain | ||
| Display Colors | 16.7 M | color | |
| Color Gamut | 80%(Min.) 86%(typ.) | ||
| Display Mode | Normally Black Transmissive mode | ||
| Dimensional Outline | 143 (H) × 140(V) × 4.2(D) | mm | |
| Viewing Direction (Human Eye) | U/D/L/R free viewing direction | Note 1,2 |
Note: 1. At the U/D/L/R direction, the viewing angle is same;
Note: 2. The TFT and CF LC Algin Direction
| Version | 01 | ||
| Signal supported | HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard | input | HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch interface | 6 pin | FPC-0.5-6PIN (horizontal) | |
| Display interface | 49 pins | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V(+/-0.5V) | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | <0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER,MENU,UP,DOWN,EXIT | ||

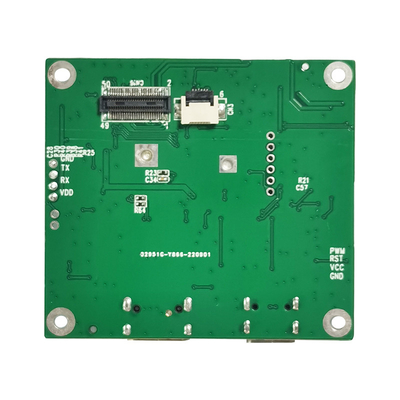

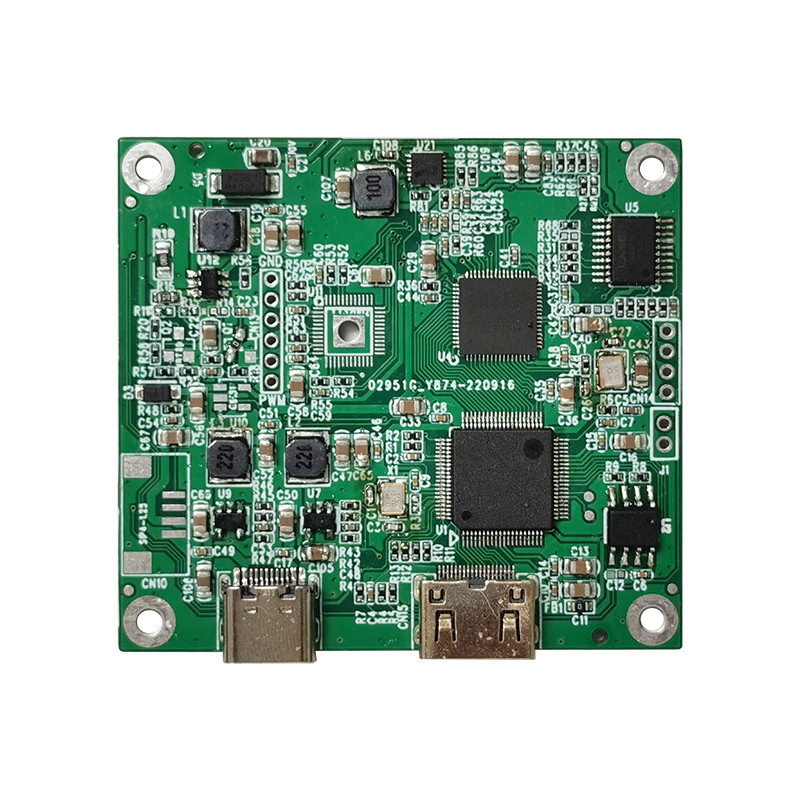

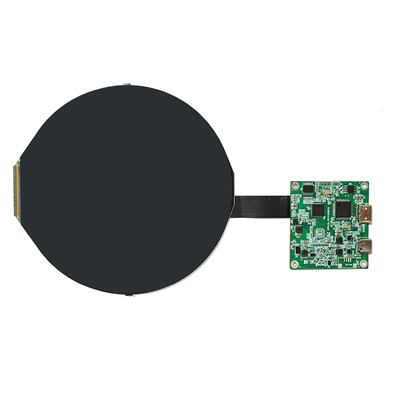

HDMI 5 inch Display, 5 inch PCAP TFT Display Product Image
![]()
![]()
HDMI interface pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |
USB( 5V ) pin definition
| 1 | VCC |
| 2 | NC |
| 3 | NC |
| 4 | NC |
| 5 | GND |
USB TP Pin Definition
| 1 | VCC |
| 2 | D- |
| 3 | D+ |
| 4 | NC |
| 5 | GND |
Touch panel Pin Definition
| 1 | VDD | |
| 2 | GND | |
| 3 | TP-INT | |
| 4 | TP-RST | |
| 5 | TP-SCL | |
| 6 | TP-SDA |
