Product Details:
|
Keywords: | HDMI Display 5 Inch | Resolution: | 800*480 |
---|---|---|---|
CTP Interface: | IIC To USB | Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
Menu (reserved): | Brightness, Contrast, Auto-correction, Phase, Clock, Line Field Position, Function Settings, Reset, Etc | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
Touch Screen: | CTP( Capacitive Touch Screen) | Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
Audio Output: | 8Ω1.5W (20*30 BOX Speaker * 2) | ||
Highlight: | 1000cd/m2 TFT LCD Display,ISO14000 TFT LCD Display,5 Inch Industrial TFT Display |
HDMI 5 inch Display, Raspberry Pi 5" Touch LCD
SFHDMI500AU-800480A-CT is a new integrated (LCD screen, touch screen, driver board) new integrated LCD display control module. It perfectly presents the HDMI digital signal output from the PC on the 800*480 LCD display.
1. Supports HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards.
2. HDMI sources are compatible with mainstream mini PCs such as Raspberry Pi, BB Black, and Banana Pi.
3. TOUCH is USB to I2C, no driver installation is required.
4. The design is mainly used on the Raspberry Pi Raspberry Pi display, and can also be used for other HDMI industrial control small screen touch devices.
5. When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch, and when used as a computer monitor, it supports Windows 7/8/10, five-point touch, drive-free.
Product Features:
Keywords: | HDMI Display 5 Inch | Resolution: | 800*480 |
---|---|---|---|
CTP Interface: | IIC To USB | Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
Menu (reserved): | Brightness, Contrast, Auto-correction, Phase, Clock, Line Field Position, Function Settings, Reset, Etc | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
Touch Screen: | CTP( Capacitive Touch Screen) | Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
Compliance: | REACH & RoHS Compliant | Audio Output: | 8Ω1.5W (20*30 BOX speaker * 2) |

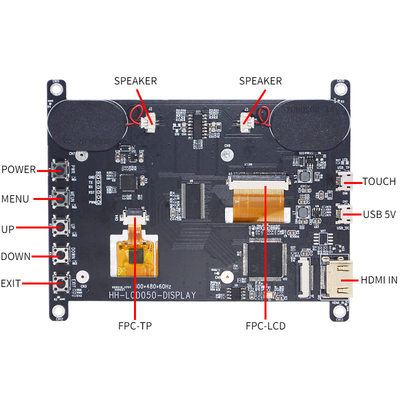

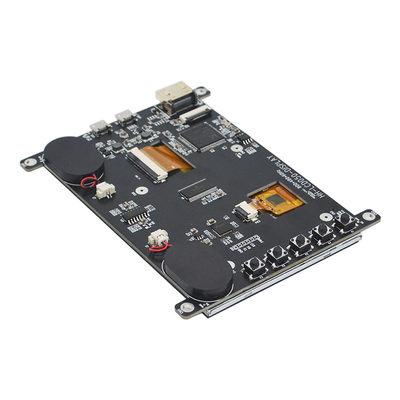

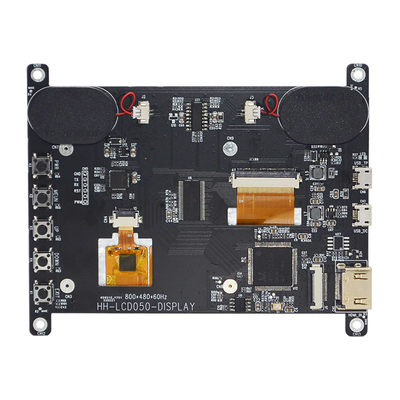

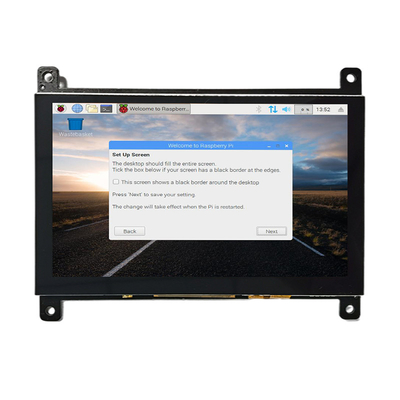

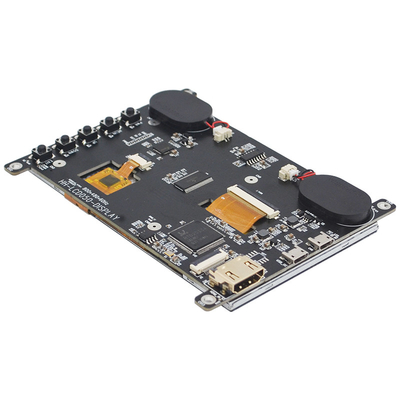

HDMI 5 inch Display, Raspberry Pi 5" Touch LCD Product Image
HDMI Pin Definition:
1 | T.M.D.S DATA2+ |
2 | T.M.D.S DATA2 shielded屏蔽 |
3 | T.M.D.S DATA2- |
4 | T.M.D.S DATA1+ |
5 | T.M.D.S DATA1 shielded屏蔽 |
6 | T.M.D.S DATA1- |
7 | T.M.D.S DATA0+ |
8 | T.M.D.S DATA0 shielded屏蔽 |
9 | T.M.D.S DATA0- |
10 | T.M.D.S DATA CLOCK+ |
11 | T.M.D.S DATA CLOCK shielded屏蔽 |
12 | T.M.D.S DATA CLOCK- |
13 |
CEC (Consumer Electronics Control, Optional electronic consumer controller可选择的电子消费控制器) |
14 | Reserved (in cable but N.C. on device) |
15 | SCL(DDC Clock) |
16 | SDA(DDC data) |
17 | DDC/CEC Ground |
18 | +5V power |
19 | Hot-swappable probe wires热插拔探测线 |
USB 5V Pin Definition:
1 | VCC |
2 | NC |
3 | NC |
4 | NC |
5 | GND |
USB TP Pin Definition:
1 | VCC |
2 | D- |
3 | D+ |
4 | NC |
5 | GND |
Speaker Pin Definition:
1 | ROUT+ |
2 | ROUT- |
3 | LOUT- |
4 | LOUT+ |
Requirements for use
In order to ensure the normal use of this product and prevent accidents such as electric shock or fire, please read and understand all the requirements and operating procedures before using this product. The following requirements are strictly observed:
1. The DC power supply required by this product is generated by the AC/DC power adapter, and the AC/DC power adapter should be kept away from the heat source and placed in a well-ventilated place.
2. AC power socket and AC power cord should pay attention to good grounding and can withstand sufficient current demand.
3. The input voltage of the DC power supply required by this product is +5V, the error is not greater than +/-0.5V, and the current is determined according to the selected LED screen and the power of the whole machine.
4. Pay attention to good ventilation and heat dissipation, do not place in a closed non-thermal shell or box, and do not let direct sunlight or other heat sources bake.
5. Pay attention to avoid excessive humidity and excessive dust, so as to avoid circuit corrosion causing failure.
6. When assembling, pay attention to reserve a certain space to provide air convection on the board surface to dissipate heat, and prevent electrical conductors (such as fixed iron plates such as drive boards and high-voltage plates) and components on the board from contacting short circuits.
7. Pay attention to prevent the drive plate from bending and deforming due to additional pressure.
8. When assembling, pay attention to the correct electrical connection of the drive board, LED screen, button board and other components, select the correct LED screen working voltage (too low will show abnormal, too high may burn out the LED screen), check that it is correct before powering on.
9. The program on the driver board should match the corresponding LED screen.
10. Pay attention to electrostatic protection when assembling the board, and pay attention to avoid short circuit and static electricity on the hand to damage the board.
11. All input and output interfaces need to be operated in the case of power failure (plug and unplug connectors).
12. This product is suitable for general commercial use and household, the ambient temperature: -10~+40°C, relative humidity: ≤80%.
13. Unplug the power when not in use for a long time.
