Product Details:
|
| Keywords: | HDMI Display 15.6 Inch | Resolution: | 1920*1080 |
|---|---|---|---|
| CTP Interface: | IIC To USB | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | Capacitive Touch Screen | Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
| LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant | Support: | Raspberry Pi, HDMI, Raspbian, Ubuntu, WIN10 IOT |
| Highlight: | 300cd/m2 Display Control Module,1920x1080 Display Control Module,1000cd/m2 TFT LCD Module |
||
HDMI 15.6 inch Display, Raspberry Pi 15.6" Touch LCD
SFHDMI156H-19201080A-CT is a 15.6 inch TFT LCD display control module which integrated with LCD screen, capacitive touch screen and driving board. The driving board is for an FHD display with built-in TYPE-C function, the maximum resolution is 2560X1440 @60HZ.
* Support EDP screen interface signal output.
* A variety of OSD languages to choose from.
* The software on the motherboard supports online updates.
* Support capacitive touch screen.
* Supports 2-way HDMI 1.4, HDCP supports version 2.0.
* Support USB HUB function, external two USB2.0 ports, can be used for mouse and keyboard connection.
* Supports PD bidirectional power supply protocol.
* Support 1.5W*2 power amplifier output
* The TYPEC port supports DisplayPort Alt Mode
Product Features:
|
Video input |
HDMI |
1080p | ||
| HDCP Version | 2.0 | |||
|
TYPE-C |
1080p | |||
| PD management | ||||
| USB2.0 HUB | ||||
| Operating power supply | DC 5~20V | |||
| Standby power consumption | <0.25W | |||
|
LCD Display |
Display | TFT LCD | ||
| Screen interface | EDP | |||
| Maximum Resolution | 2560*1440@60HZ | |||
| Operating Voltage | 3.3V(R33),5V(R5) | |||
| Headphone output | >150MW (32Ω/0dB 信号) | |||
| Speaker output | 2X1.5W THD+N<10%@1KHZ | |||
| LED | Light adjusting method | PWM | ||
| Keyboard | POWER,KEY1,KEY2,AUTO,MENU, Optional | |||
| OSD language | Chinese/English/German/Korean/French/Spanish/Japanese and others | |||
HDMI 15.6 inch Display, Raspberry Pi 15.6" Touch LCD Product Image
![]()

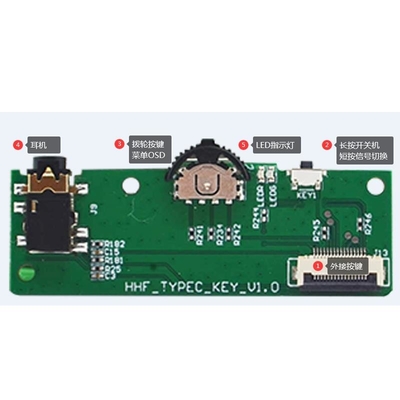

(1) External Control (2) Long press to turn on, short press to switch the signal
(3) Dial button Menu OSD (4) Headphone (5) LED indicators
![]()

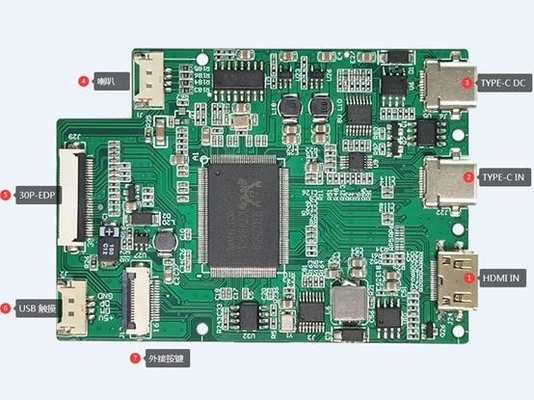

(1) HDMI in (2) Type-C in (3)Type-C DC (4)Speaker
(5) 30pin EDP (6) USB Touch Screen (7) External Control
HDMI Pin Definition:
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 shielded屏蔽 |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 shielded屏蔽 |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 shielded屏蔽 |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK shielded屏蔽 |
| 12 | T.M.D.S DATA CLOCK- |
| 13 |
CEC (Consumer Electronics Control, Optional electronic consumer controller可选择的电子消费控制器) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC Clock) |
| 16 | SDA(DDC data) |
| 17 | DDC/CEC Ground |
| 18 | +5V power |
| 19 | Hot-swappable probe wires热插拔探测线 |
USB TYPE-C input interface
| Pin | Definition | Description |
| 1 | TYPEC-DTE | 连接侦测口 Connect the detection port |
| 2 |
TX P1 _ |
数据信号接口 Data signal interface |
| 3 |
TX N1 _ |
数据信号接口 Data signal interface |
| 4 | VBUS | 电源输出口 Power supply output |
| 5 | TYPEC-CC1 | 正反接侦测口 Forward and reverse detection ports |
| 6 | TYPEC-DP | 数据信号接口 Data signal interface |
| 7 | TYPEC-DM | 数据信号接口 Data signal interface |
| 8 | TYPEC-BU1 | 辅助数据信号接口 Auxiliary data signal interface |
| 9 | VBUS | 电源输出口 Power supply output |
| 10 |
RX N2 _ |
数据信号接口 Data signal interface |
| 11 |
RX P2 _ |
数据信号接口 Data signal interface |
| 12 | GND | 接地 Connect to Ground |
| 13 | GND | 接地 Connect to Ground |
| 14 |
TX P2 _ |
数据信号接口 Data signal interface |
| 15 |
TX N2 _ |
数据信号接口 Data signal interface |
| 16 | VBUS | 电源输出口 Power supply output |
| 17 | TYPEC-CC2 | 正反接侦测口 Forward and reverse detection ports |
| 18 | TYPEC-DP | 数据信号接口 Data signal interface |
| 19 | TYPEC-DM | 数据信号接口 Data signal interface |
| 20 | VBUS | 电源输出口 Power supply output |
| 21 | TYPEC-BU2 | 辅助数据信号接口 Auxiliary data signal interface |
| 22 |
RX N1 _ |
数据信号接口 Data signal interface |
| 23 |
RX P1 _ |
数据信号接口 Data signal interface |
| 24 | GND | 接地 Connect to Ground |
