SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade

SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade
SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade
SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade

Large Image :  SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO500HQ-7012A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade

Description
Keywords: 5 Inch SPI TFT LCD Display Product Structure: TFT+PCB
Resolution: 800*480 Surface Luminance: 500 Cd/m2 - 1000 Cd/m2
Touch Screen: CTP And RTP Optional Pins: 20
Operating Temp.: –30℃ To +85℃ Viewing Direction: IPS All Viewing Angle(80/80/80/80)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

SPI Serial Interface TFT LCD Display

,

800x480 Dots TFT LCD Display

,

IPS Automotive Grade Industrial TFT Display

5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display





SAEF TECHNOLOGY SFTO500HQ-7012A-N is a 5 inch full TFT-LCD display with 800x480 resolution (800 horizontal by 480 vertical pixels array). It can be used in embedded systems, automation, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image. SFTO500HQ-7012A-N is a IPS-LCD type TFT with brightness 500 - 1000 cd/m2 (typical value).  It can be operating at temperatures from -30℃ to +85℃.

Item of general information Contents
LCD Display Size (Diagonal) 5 inch IPS
Module Structure LCD Display + PCB
LCD Display Type TFT/TRANSMISSIVE
LCD Display Mode Normally Black
Recommended Viewing Direction ALL VIEW o’clock
Module size (W×H×T) 137.30×80.97×5.50 mm
Active area (W×H) 108.00×64.80 mm
Number of pixels (Resolution) 800RGB×480 pixel
Pixel pitch (W×H) 0.135×0.135 mm
Module Interface Type 3 wire SPI interface
Module Input voltage 5V
Color Numbers 16.7M
Backlight Type White LED







5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display Drawing

SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 0SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 1

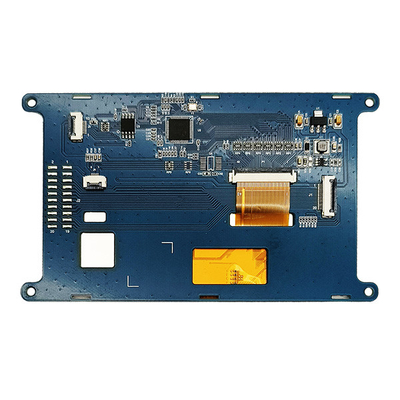

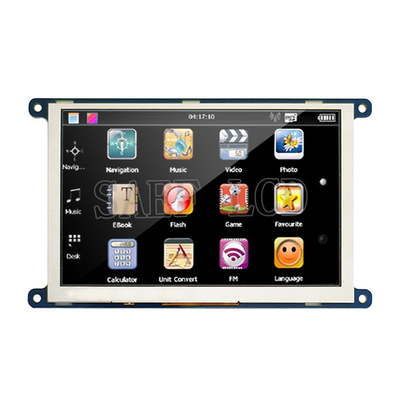

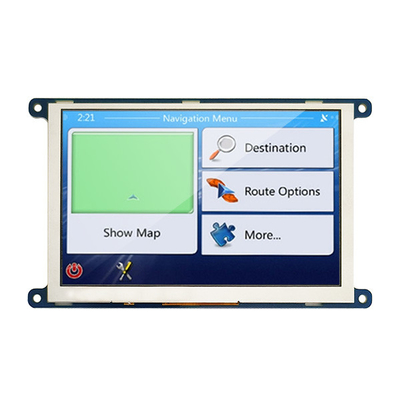

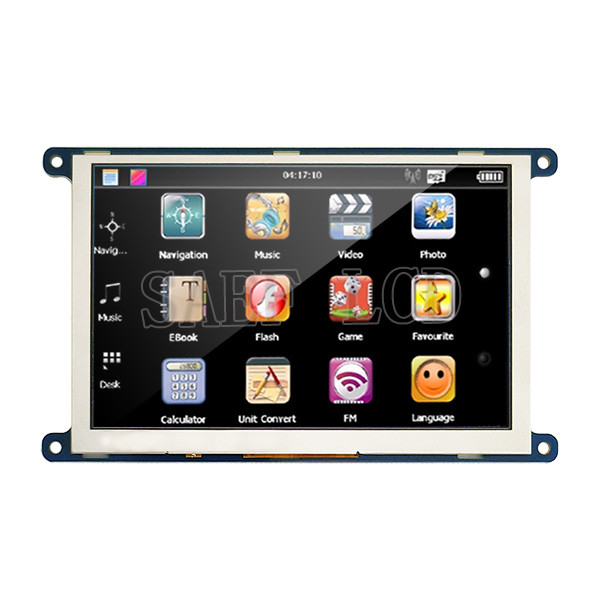

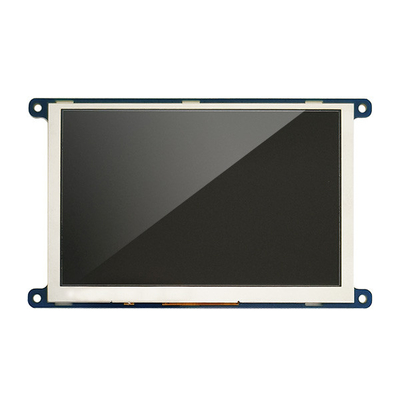

5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display Product Image



SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 2SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 3SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 4

SPI Serial Interface 5 Inch TFT LCD Display 800x480 Dots IPS Automotive Grade 5

Pin definition:



J1&J2 Interface Description



Pin1~2,   VCC5V  /  Power supply /  Module Power supply (5V Typ.)

Pin3~4,   GND    /    Power supply  /   Power ground

Pin5,       LCD_CS /   I    /    Chip Select pin for 3-wire serial I/F.

Pin6,    NC  /  -  /    No connection

Pin7,    LCD_SCLK  /   I   /  Clock of 3-wire serial I/F.

Pin8,   LCD_INT  /  O   /   The interrupt output for host to indicate the status.

Pin9,    LCD_RST  / I  /   This is an active low Reset pin for LCD.

Pin10,   LCD_SDA   /   I/O /    Bi-direction data pin of 3-wire SPI I/F.

Pin11,    CTP_INT(NC)   /  O  /   CTP External interrupt to the host

Pin12,    CTP_SCL(NC)  /  I  /   CTP I2C clock input

Pin13,    CTP_SDA(NC)  /  I/O  /   CTP I2C data input and output

Pin14,    CTP_RST(NC)   /   I   /    CTP external reset signal, Low is active

Pin15,    NC   /  -  /   No connection

Pin16,    GND  /  Power supply  /    Power ground

Pin17,    NC   / -  /   No connection

Pin18,    NC   /   -  /    No connection

Pin19,    NC   / -   /     No connection

Pin20,    GND   /  Power supply  /    Power ground





J3 Interface Description (SPI Flash burning interface)



Pin1,    SF_CLK   /    I    /   Serial Clock Input

Pin2,    SF_DI     /    I   /    Data Input

Pin3,    SF_DO    /   O   /    Data output

Pin4,    SF_CS    /   I   /    Chip Select Input

Pin5,    LCD_RST   /    I   /    LCD RESET signal. This pin must be pull low

Pin6,    GND    /   Power supply   /    Power ground

Pin7,    NC    /   -   /    No connection

Pin8,    NC    /   -   /    No connection

Pin9~10,    3.3V    /   Power supply   /   Power supply for the SPI Flash (3.3V Typ.)



Contact Details
