Product Details:
|
| Product: | Custom VA TN LCD | Glass: | VATN, Positive, Transmissive |
|---|---|---|---|
| Driving Condition: | 1/8 Duty Cycle, 1/4 Bias | Operating Voltage: | 5V |
| Optics: | All Viewing Angles 85/85/85/85 | Outline Dim.: | 98.0 X 38.0 X 2.80 Mm |
| Viewing Area: | 94.0 X 30.5 Mm | Backlight: | Customizable |
| Operating Temp: | -40°C To +85°C | Storage Temp.: | -45°C To +90°C |
| Operating Frequency: | 75 Hz | Compliance: | REACH & RoHS Compliant |
| Highlight: | ODM Transmissive LCD Display,OEM Transmissive LCD Display,TN Negative LCD Display |
||

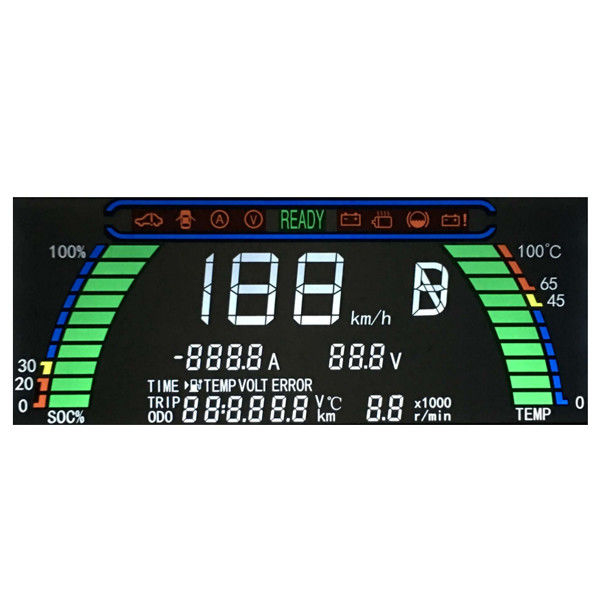

Tailor-Made TN Negative Transmissive LCD Display With Ultra Wide Operating Temperature
Custom VATN LCD Display Description
TN LCD ( Twisted Nametic LCD) are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. These displays are still one of the most popular technologies in use and the majority of them are custom. Below are key reasons why people keep designing these LCD displays into new products:
- Lowest Unit Price
- Lowest Tooling Charge
- Lowest Power Consumption
- Sunlight Readable
- Ultra wide Operating Temperature
- Customized differential outline shape
- Continuous supply for more than 10 years
VATN LCD is featured with wide viewing angle and high contrast. Below are the key Advantages of VATN Display:
- Super high contrast ratio: can be up to 120:1
- Wide viewing angle: around 170(H) 110(V)
- Mode: Negative mode only
- Available Back light:white/green/yellow-green/red/blue
- High backlight brightness
- Four colors silk ink of custom design optional
- Replacible for DFSTN and Black Mask
| Product: | Custom VA TN LCD | Glass: | VATN, Positive, Transmissive |
|---|---|---|---|
| Driving Condition: | 1/8 Duty Cycle, 1/4 Bias | Operating Voltage: | 5V |
| Optics: |
All Viewing Angles ( 85/85/85/85 ) |
Outline Dim.: | 98.0 X 38.0 X 2.80 mm |
| Viewing Area: | 94.0 X 30.5 mm | Backlight: | Customizable |
| Operating Temp: | -40°C To +85°C | Storage Temp.: | -45°C To +90°C |
| Operating Frequency: | 75 Hz | Compliance: | REACH & RoHS Compliant |
Except the available standard LCD/TFT/OLED display products, SAEF Technology provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen. With more than 10 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.
Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. SAEF can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitive (PCAP) touch screen or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
Custom TN LCD with FPC attached, Corner Cut LCD Real Product Image
