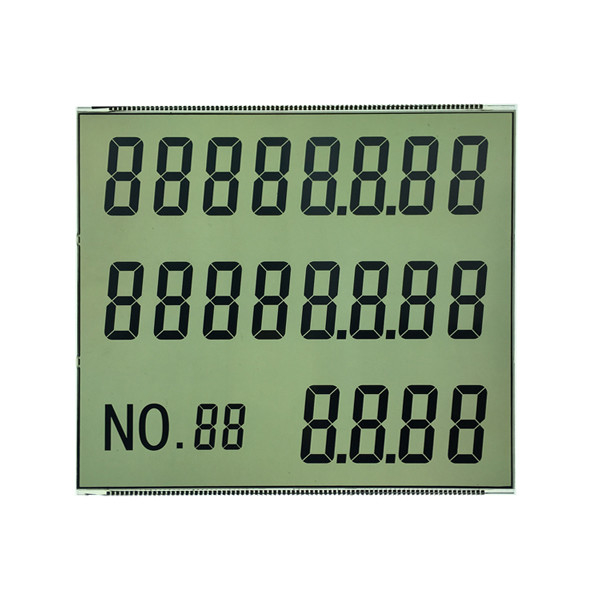

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM
HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM
HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM

Large Image :  HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: JY6224HP-P
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD0.xx, Price negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM

Description
Display Mode: HTN 7 Segment LCD Driving Condition: Static, 1/1 Duty, 4.7V
Outline Dimension: 189x169x2.8 Mm Glass: HTN, Positive, Transmissive
Optics: 6:00 Viewing Direction Operating Temp: -20°C To +80°C
Storage Temp.: -30°C To +85°C Surface Printing: None ( Customizable )
Connector: Metal Pin Compliance: REACH & RoHS Compliant
Highlight:

HTN Seven Segment LCD Display

,

OEM Seven Segment LCD Display

,

ODM LCD segment display



Factory Supply Custom HTN 7 Segments LCD Display With Metal Pin Connector For Fuel Gauge Meter Front Screen





Fuel Gauge Meter LCD,  7 Segment LCD Panel Description




Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment. These displays are still one of the most popular technologies in use and the majority of them are custom.



Below are key reasons why people keep designing these LCD displays into new products

-  Lowest Unit Price

-  Lowest Tooling Charge

-  Lowest Power Consumption

-  Sunlight Readable

-  Ultra wide Operating Temperature





Display Mode: HTN 7 Segment LCD Driving Condition: Static, 1/1 Duty, 4.7V
Outline Dimension: 189x169x2.8 Mm Glass: HTN, Positive, Transmissive
Optics: 6:00 Viewing Direction Operating Temp: -20°C To +80°C
Storage Temp.: -30°C To +85°C Surface Printing: None ( Customizable )
Connector: Metal Pin Compliance: REACH & RoHS Compliant









Fuel Gauge Meter LCD, 7 Segment LCD Panel Drawing





HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 0





HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 1

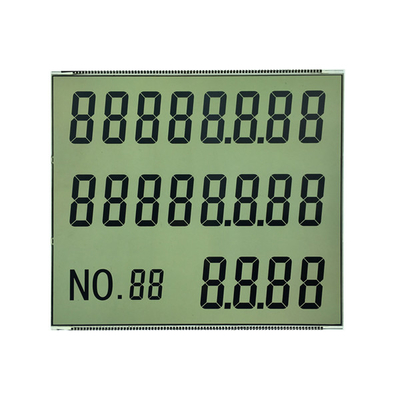

Fuel Gauge Meter LCD, 7 Segment LCD Panel Real Product Image



HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 2

FACTORY AND FACILITIES



HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 3HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 4HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 5

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 6HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 7HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 8

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 9HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 10

HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 11HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 12HTN Seven Segment LCD Display With Metal Pin Connector OEM ODM 13







CONTACT



Welcome to inquire via ck@saef.com.cn



Search Keywords: va tn, HTN lcd,  monochrome HTN, HTN display, TN lcd, HTN lcd display, 7 segment VA lcd, segment LCD, Fuel Gauge Meter LCD, 7 Segment LCD Panel , digital lcd, digit htn lcd display, 7 segment front panel, segment front glass,

7 segment HTN LED, segment LED display, Odometer Meter lcd
