Product Details:
|
| Product: | 2.42"(2.4") Inch OLED Screen | Resolution: | 128x64 Dots Resolution |
|---|---|---|---|
| Display Mode: | Passive Matrix | Optics: | All Viewing Angles |
| Outline Dim.: | 71.0(L) X 43.5(W) X 6.0(T) Mm | Active Area: | 55.01(L) X 27.5(W) Mm |
| Pixel Pitch: | 0.43 X 0.43 Mm | Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +70°C ( Customizable ) | Pin Number: | 7 Header Pins |
| Interface: | SPI | Compliance: | REACH & RoHS Compliant |
| Highlight: | OLED Display Module ISO14000,OLED Display Module ISO9001,2.42" OLED 128x64 Display |
||
SFOM242YZ7-12864WBYG-01 Specification.pdf
2.4" (2.42") inch OLED, OLED 2.4 inch 128x64 SPI I2C Screen Description
SAEF Technology SFOMS242YZ7-12864WBYG-01 is a dot matrix 128x64 COB graphic type OLED module. The size of the active area is 2.42” diagonal with module dimension 71.0x43.5 mm. This 2.42 inches OLED module has built-in IC SPD0301, and boasts high contrast ratio 20,000 : 1. There are many interface options to choose from, including SPI and IIC (I2C) interface. Logic supply voltage ranges from 1.65V-3.3V, the typical value is 2.8V. The available emitting colors are white, yellow, blue, green and red.
SFOMS242YZ7-12864WBYG-01 OLED module is originally without touch, but touch panel is customizable. It's widely used in medical analyzer, meter and instrument, sensor device, POS terminal, cash reader, handheld device and mobile food ordering machine etc.
| Product: | 2.42"(2.4") Inch OLED Screen | Resolution: | 128x64 Dots Resolution |
|---|---|---|---|
| Display Mode: | Passive Matrix | Optics: | All Viewing Angles |
| Outline Dim.: | 71.0(L) X 43.5(W) X 6.0(T) mm | Active Area: | 55.01(L) X 27.5(W) mm |
| Pixel Pitch: | 0.43 X 0.43 mm | Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +70°C | Pin Number: | 7 Header Pins |
| Interface: | SPI, I2C Optional | Compliance: | REACH & RoHS Compliant |
SAEF Technology's graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x8 OLED graphic, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED 128x128, and 256x64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
SAEF offers a wide range of OLED display modules in sizes from 0.49" to 5.5" OLED, such as 0.49" micro OLED Display, 0.66" mini OLED Display, 0.69" OLED, 0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED Display, 5.5" OLED Display, and custom design solutions.
SAEF small OLED display module are perfect for a number of devices that require electronic display panel. These applications include wearable devices, E-cigarette, POS system, white goods, home applications, industrial instrument, POS system, automation, audio/visual display systems, medical devices, personal care appliances, household goods, automobile displays , Dynamic information displays.
2.4" (2.42") inch OLED, OLED 2.4 inch 128x64 SPI I2C Screen Drawing
Pin Definition

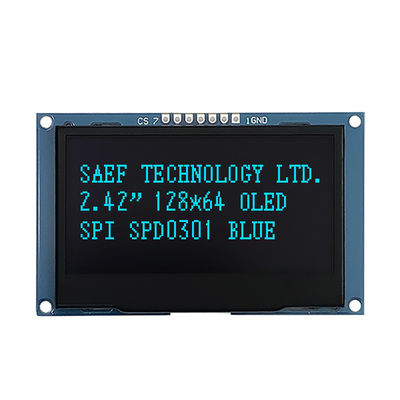

2.4" (2.42") inch OLED, OLED 2.4 inch 128x64 SPI I2C Screen Product Image
