Product Details:
|
| Product: | TFT 2.3" Inch QVGA | Resolution: | 320X240 Dots |
|---|---|---|---|
| Interface: | MCU 16 Bits | Touch Screen: | Without Touch (Resistive And PCAP Touch Optional) |
| Outline Dimension: | 50.80x45.6x2.35 Mm | Viewing Direction: | 12 O'clock |
| Pin Number: | 36 Pins | Connection: | Hotbar ( Customizable ) |
| Surface Luminance: | 250 Cd/m2 ( Customizable) | Operating Temp.: | -20℃ To +70℃ |
| Life Time: | 40000 Hrs | Compliance: | REACH & RoHS Compliant |
| Highlight: | 3.2V Industrial TFT Display,36 Pins Industrial TFT Display,2.3" ILI9342C |
||
SF-TC230T-8088A-N SPECIFICATION 2014-10-20.pdf
2.3" ILI9342C Industrial TFT Display 320x240 MCU Interface 36 Pins 3.2V 12 O'clock Product Introduction
SAEF TECHNOLOGY SF-TC230T-8088A-N TFT LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. PPI refers to Pixel Per Inch, the resolution of a 2.3” contains 320 (RGB)X 240 dots (320 horizontal by 240 vertical pixels array). and it can display up to 262k color. SF-TC230T-8088A-N TFT LCD model supports MCU interface; the supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.4V. Typical value is 3.2V.
SF-TC230T-8088A-N can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Itis great for automation, GPS, medical equipment, industrial device, security equipment white goods, smart home applications, IoT System, car equipment, car dashboard, car audio, car clock, car door display system, water ionizer, which requires TFT display in high quality and colorful image.
| Product: | TFT 2.3" Inch QVGA |
| Resolution: | 320X240 Dots |
| Interface: | MCU 16 Bits |
| Outline Dimension: | 50.80x45.6x2.35 Mm |
| Pin Number: | 36 Pins |
| Surface Luminance: | 250 Cd/m2 ( Customizable) |
| Life Time: | 40000 Hrs |
| Touch Screen: | Without Touch (Resistive And PCAP Touch Optional) |
| Viewing Direction: | 12 O'clock |
| Connection: | Hotbar ( Customizable ) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
2.3" ILI9342C Industrial TFT Display 320x240 MCU Interface 36 Pins 3.2V 12 O'clock Product Drawing

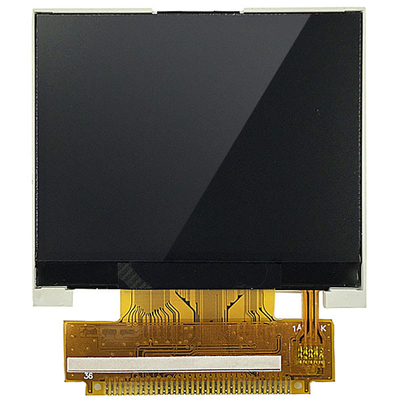

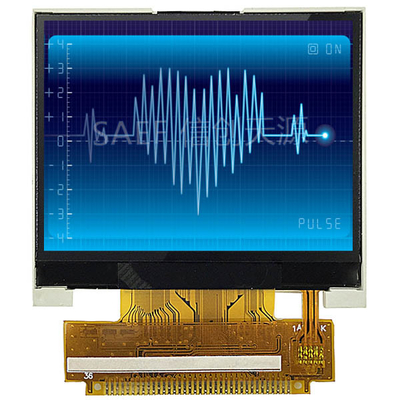

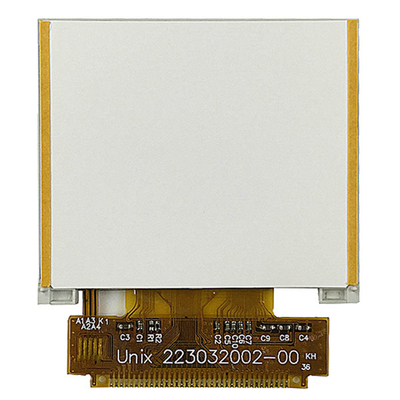

2.3" ILI9342C Industrial TFT Display 320x240 MCU Interface 36 Pins 3.2V 12 O'clock Product Image
