Product Details:
|
| Product: | HTN Meter LCD | Glass: | HTN, TRNSFLECTIVE, POSITIVE |
|---|---|---|---|
| Driving Condition: | 1/4 Duty, 1/3 Bias, 3.3 V | Optics: | 6:00 O'clock |
| Outline Dim.: | 59x25x2.85 Mm | Backlight: | Customizable |
| Operating Temp: | -40°C To +85°C | Response Time: | 100 Ms @ 25°C |
| Surface Printing: | None ( Customizable ) | Connector: | Metal Pin |
| Application: | Meter Front Screen | Compliance: | REACH & RoHS Compliant |
| Highlight: | Front Screen 7 Segment LCD Display,HTN 7 Segment LCD Display,Alphanumeric LCD display segment |
||
HTN Alphanumeric LCD Display 7 Segment Custom Size For Water Energy Electric Meter Front Screen
HTN Electric Meter LCD Description
Meter LCD are always adopted to display the Electrical parameter measurement functions like voltage, current, power, energy.
and it also has the Voltage alarm function (overvoltage alarm threshold, backlight and voltage flashing prompt).
Meter LCD requires extended wide operating temperature ranges from -40-85C due to its application evironment
JY4242HP-A features the key advantages for meter lcd as
| Product: | HTN Meter LCD | Glass: | HTN, TRNSFLECTIVE, POSITIVE |
|---|---|---|---|
| Driving Condition: | 1/4 Duty, 1/3 Bias, 3.3 V | Optics: | 6:00 O'clock |
| Outline Dim.: | 59x25x2.85 Mm | Backlight: | Customizable |
| Operating Temp: | -40°C To +85°C | Response Time: | 100 Ms @ 25°C |
| Surface Printing: | None ( Customizable ) | Connector: | Metal Pin |
| Application: | Meter Front Screen | Compliance: | REACH & RoHS Compliant |
Meter lcd applications are as
HTN Electric Meter LCD Drawing
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

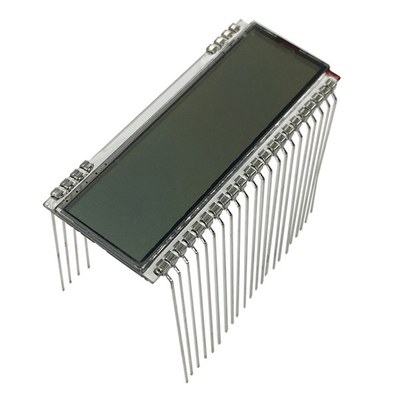

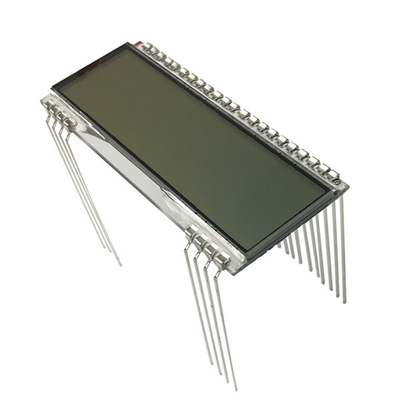

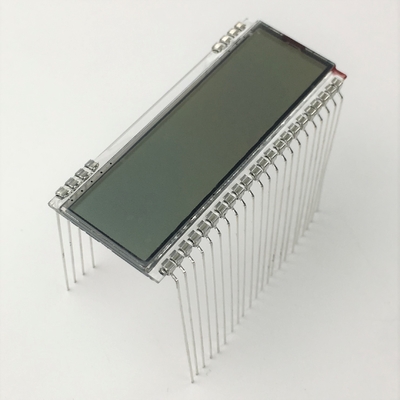

HTN Electric Meter LCD Product Image
