Product Details:
|
| Product: | 1.3 Inch 128x64 OLED Display | Graphics: | 128 X 64 Pixels |
|---|---|---|---|
| Optics: | All Viewing Angles 80/80/80/80 | Color: | White, Blue Optional |
| Module Size: | 34.5(L) X 23(W) X 1427(T) Mm | Active Area: | 29.42(L) X 14.7(W) |
| Controller: | SH1106G | Length Of FPC: | 12 Mm ( Customizable ) |
| Pin Number: | 30 Pins | Connection: | Soldering ( Can Be Customized ) |
| Interfaces: | 6800 / 8080 / 4-SPI / I2C | Contrast Ratio: | 2000 : 1 |
| Life Time: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | I2C OLED Display 8080 30 Pins,6800 128x64 I2C OLED Display,1.3 Inch OLED Display128x64 I2C |
||
1.3 Inch OLED 128x64 Monochrome Display 6800 8080 4-SPI I2C Interface SH1106G OLED Panel 30 Pins
128x64 SH1106G OLED, OLED 128x64 Display Descriptioin
SF-OS130HX-12864WB-01 is a 1.3" SH1106G COG graphic OLED display module; it's made of 128x64 dot matrix format. This 1.3 oled module is built in controller SH1106G oled IC; it supports 8-bit 6800 and 8080, 4-wire SPI and I2C interfaces. SAEF provides ZIF FPC and Hotbar versions for customers to choose the suitable module for your application. These SH1106 OLED COG modules are ultra thin, lightweight and low power consumption which is great for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, water ionizer, sewing machine, meter, ammeter, instrument tuner, external hard disk, printers...etc.
| Product: | 1.3 Inch 128x64 OLED Display | Graphics: | 128 X 64 Pixels |
|---|---|---|---|
| Optics: |
All Viewing Angles |
Color: | White, Blue Optional |
| Module Size: | 34.5(L) X 23(W) X 1427(T) mm | Active Area: | 29.42(L) X 14.7(W) |
| Controller: | SH1106G | Length Of FPC: | 12 Mm ( Customizable ) |
| Pin Number: | 30 Pins | Connection: |
Soldering/Hotbar |
| Interfaces: | 6800 / 8080 / 4-SPI / I2C | Contrast Ratio: | 2000 : 1 |
| Life Time: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. Winstar OLED modules are featured with all the important advantages:
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
128x64 SH1106G OLED, OLED 128x64 Display Drawing

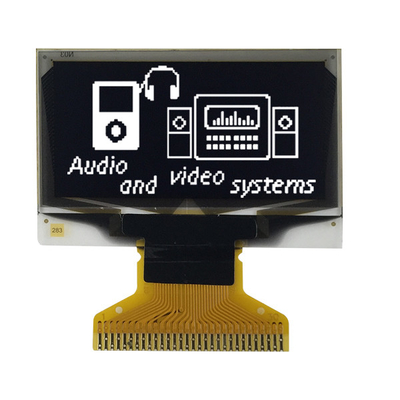

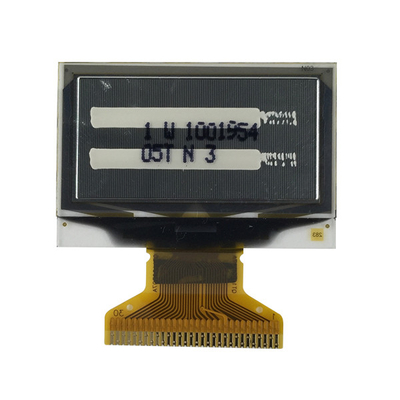

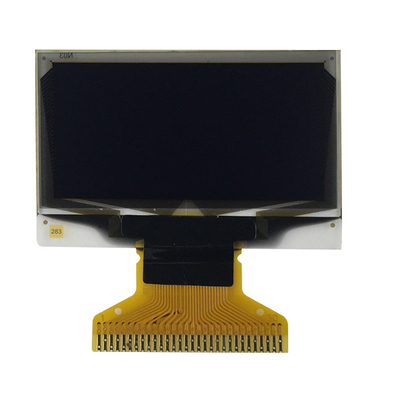

128x64 SH1106G OLED, OLED 128x64 Display Product Image
