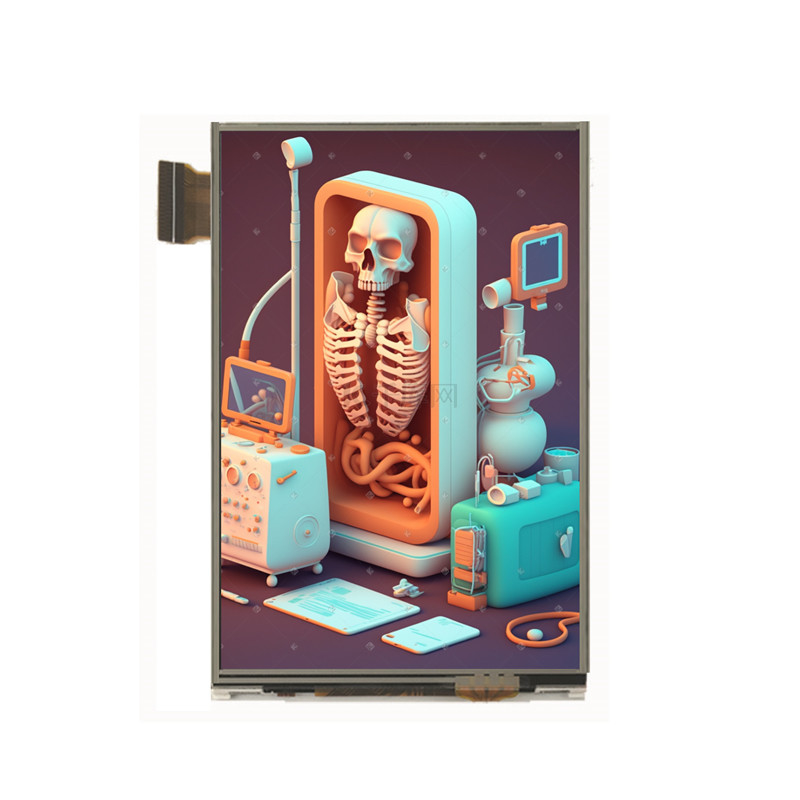

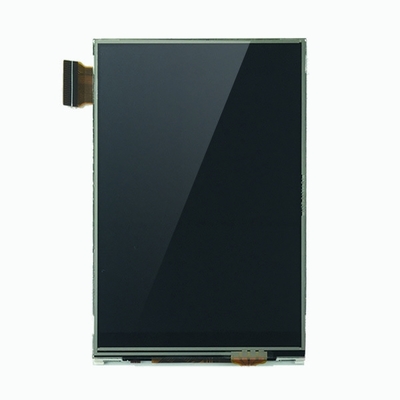

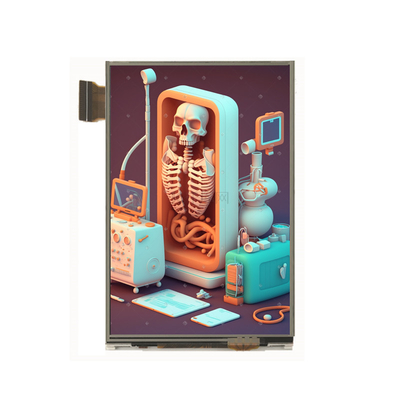

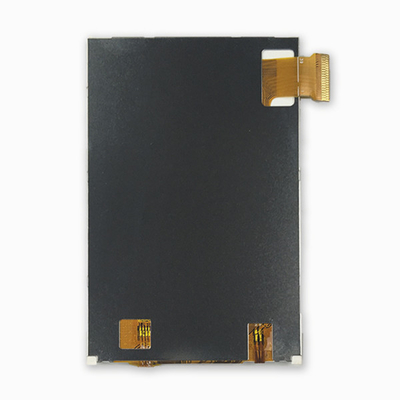

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface
3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface

Large Image :  3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC350H-9496G-T
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface

Description
Product: 3.5" TFT Touch Screen Resolution: 320x480 HVGA
Driver IC: ILI9488 Or Equivalent Outline Dim.: 53.76x84.18x3.35 Mm
Touch Screen: With Resistive Touch ( PCAP Optional) Cover Glass Dimension: Customizable
Viewing Direction: 12 O'clock Interface: MCU 18 / 16 Bits (customizable)
Connection: Plugging (can Be Customized) Pin Number: 39 Pins (can Be Customized)
Surface Luminance: 420 Cd/m2(nits) Backlight Type: White LED
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

HVGA LCD Touch Screen

,

MCU LCD Touch Screen

,

16bits 320x480 TFT

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface Product Introduction



The SF-TC350H-9496G-T LCD touch screen module is a 3.5 inch diagonal size HVGA portrait mode 320x480 full color display, this 3.5 inch LCD touch screen uses resistive touch screen and can be designed as PCAP, the part number is SF-TC350H-9496G-CT. This 3.5-inch TFT display module supports MCU 16-bit and 18-bit interfaces. The module size of the SF-TC350H-9496G-T LCD touch monitor is 53.76x84.18 mm, and the active area size is 48.96x73.44 mm.





The SF-TC350H-9496G-T LCD touch screen monitor integrates a ILI9488 controller on the module with a logic supply voltage range of 2.6V to 3.3V. The surface brightness of the SF-TC350H-9496G-T is 420 cd/m2 (nits). If you want to use it as a portrait mode or adjust the brightness, please contact us for more technical support. The surface brightness can reach 1000 cd/m2 (nits). This 3.5-inch medical/industrial grade LCD model has been widely used in embedded systems, automation, GPS, medical devices, industrial equipment, security equipment, which require TFT to display high-quality and color images.



Product: 3.5" TFT Touch Screen
Resolution: 320x480 HVGA
Touch Screen: With Resistive Touch ( PCAP Optional)
Driver IC: ILI9488 Or Equivalent
Active area: 48.96x73.44 (mm)
Outline Dim.: 53.76x84.18x3.35 (mm)
Cover Glass Dimension: Customizable
Interface: MCU 18 / 16 Bits (customizable)
Pin Number: 39 Pins (can Be Customized)
Backlight Type: White LED
Viewing Direction: 12 O'clock
Connection: Plugging (can Be Customized)
Surface Luminance: 420 Cd/m2(nits)
LED Lifetime: 40,000 Hours
Compliance: REACH & RoHS Compliant



3.5 Inch Medical/Industrial Grade LCD Touch Screen HVGA MCU Interface Product Drawing

(with RTP Version)

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 0

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 1



with PCAP Version ( SF-TC350H-9496G-CT )



3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 2



3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 3



3.5 Inch Medical/Industrial Grade LCD Touch Screen HVGA MCU Interface Product Image

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 43.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 53.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 6

Factory Facilities and Certificates

3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 73.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface 8



TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line



SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.4", 2.8", 3.2", 3.5", 4.3", 5" 5.6", 5.7", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.



SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.



Search keyword: tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5 inch, tft display 3.5", 3.5 inch tft lcd display, 3.5" tft screen, 3.5 inch tft screen, tft screen 3.5 inch, tft screen 3.5", 3.5 inch tft lcd screen, HVGA TFT, 3.5 inch HVGA, 3.5 inch 320x480, ILI9488 TFT.
