Product Details:
|
| Product: | 1602 COB OLED Character Display | Characters / Columns: | 16x2 |
|---|---|---|---|
| Optics: | All Viewing Angles | Color: | Blue, Green, White, Red, Yellow Optional |
| Module Size: | 80(W)mm×36(H)mm×9.7 Max(D)mm | Glass: | OLED |
| Controller: | SSD1311 | Pin Number: | 16 Pins |
| Interfaces: | I2C | Life Time: | 60,000 Hours |
| Brightness: | 120 Nits | Contrast Ratio: | 10,000 : 1 |
| Operating Temp: | -40°C To +85°C | Compliance: | REACH & RoHS Compliant |
| Highlight: | SAEF 16x2 OLED Display Module,Character OLED Display Module,Blue OLED 16x2 character display |
||
16x2 OLED Character Display I2C SSD1311 Blue Green White Red Color COB Module
16x2 1602 COB OLED Character I2C Display Product Introduction
SF1602DWIFF003 is a 16 characters 2 lines OLED display module that uses 5x8 dot matrix graphics to display characters.
The OLED SF1602DWIFF003 has the same outline size, VA size and pin out as Winstar LCD item no. SF-1602C. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. There are different interfaces optional for this model; its default 6800, available options 8080, SPI and IIC (I2C). All SAEF standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).
| Product: | 1602 COB OLED Character Display | Characters / Columns: | 16x2 |
|---|---|---|---|
| Optics: | All Viewing Angles | Color: | Blue, Green, White, Red, Yellow Optional |
| Module Size: | 80(W)mm×36(H)mm×9.7 Max(D)mm | Glass: | OLED |
| Controller: | SSD1311 | Pin Number: | 16 Pins |
| Interfaces: | I2C | Life Time: | 60,000 Hours |
| Brightness: | 120 Nits | Contrast Ratio: | 10,000 : 1 |
| Operating Temp: | -40°C To +85°C | Compliance: | REACH & RoHS Compliant |
16x2 1602 COB OLED Character I2C Display Product Drawing

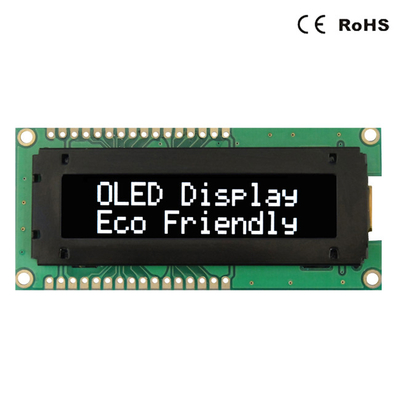

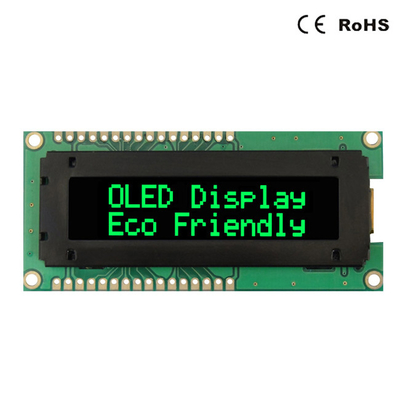

16x2 1602 COB OLED Character I2C Display Product Image
Factory Facilities and Certificates
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
