Product Details:
|
Screen Size: | 13.3-inch Diagonal | Resolution: | 1920×1080 Pixels (RGB Stripe) |
---|---|---|---|
Storage Temp.: | -20°C To +70°C | Operating Temp.: | -30°C To +80°C |
Brightness: | 1000 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) |
Interface: | 2-lane EDP 1.2 (2.7Gbps) | Power Supply: | 3.3V DC (Logic), 12V/24V (Backlight) |
Surface Treatment: | AG/AR/AF Coatings (Selectable) | Touch Technology: | Capacitive Touch Panel |
Cover Glass: | Gorilla Glass/Tempered Glass/PMMA | Touch Points: | 10-Point Multi-Touch |
Touch Interface: | I²C/USB/RS232 (Configurable) | IC Options: | EETI, ILITEK, Cypress, Goodix |
Customization: | Silk Printing, Logo, Cut-outs | Compliance: | REACH & RoHS Compliant |
Highlight: | 1080p Industrial LCD Display Module,Full HD TFT LCD Display Module,eDP Interface TFT LCD Display |
Ultra-Bright Industrial TFT Display for Demanding Environments
The SFTO1330SM-7208A3CT2 is a high-performance 13.3-inch Full HD TFT LCD module engineered for industrial applications requiring exceptional visibility, durability, and touch responsiveness. Featuring a dazzling 1000nits brightness and 72% NTSC color gamut, this display delivers crystal-clear visuals even in high-ambient-light conditions. Integrated capacitive touch technology with anti-glare coating (6H hardness) ensures reliable input in rugged settings like factories, outdoor kiosks, and medical equipment.
Key Features
Full HD Clarity: 1920×1080 resolution with 16.7 million colors for sharp text, graphics, and video.
High-Speed eDP Interface: 2-lane Embedded DisplayPort (2.7Gbps) guarantees seamless data transmission.
Wide Temperature Operation: Reliable performance from -20°C to +70°C (storage: -30°C to +80°C).
50,000-Hour LED Backlight: Energy-efficient design with extended lifespan for reduced maintenance.
Industrial-Grade Durability: Anti-glare surface, shock-resistant construction, and RoHS compliance.
Easy Integration: Supports PWM dimming, I²C/USB/UART touch interfaces, and DC power input (3.3V logic, 12V/24V backlight).
Technical Excellence
Optical Performance: 85° viewing angles, 800:1 contrast ratio, and 30ms response time.
Touch Sensitivity: Operates flawlessly with gloves, in fog/surface moisture, and supports multi-touch.
Robust Design: Slim profile (5.2mm depth), lightweight, and EMI-shielded connector (I-PEX 20455-030E).
Certified Reliability: ISO 9001/14001 certified, 72-hour humidity/thermal shock tested.
Ideal Applications
Industrial HMI Panels
POS/Retail Terminals
Medical Diagnostic Equipment
Video Conferencing Systems
Transportation Infotainment
Smart Vending Machines
Why Choose This Display?
Engineered by Saef Technology Limited (Shenzhen), the SFTO1330SM-7208A3CT2 combines cutting-edge optical technology with industrial ruggedness. Its eDP interface simplifies integration with embedded systems, while the capacitive touchscreen enhances user interaction. Backed by rigorous testing and global certifications, this module is optimized for 24/7 operation in Europe and North America’s toughest environments.
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
External Dimensions
Interface Pin Definition
Pin No. | Symbol | I/O | Function |
1 | CABC_ EN / NC | - | Reserved for CD |
2 | H_GND | P | High Speed round |
3 | Lane1_N | I | Complement Signal Link Lane 1 |
4 | Lane1_P | I | True Signal Link Lane 1 |
5 | H_GND | P | High Speed round |
6 | Lane0_N | I | Complement Signal Link Lane 0 |
7 | Lane0_P | I | True Signal Link Lane 0 |
8 | H_GND | P | High Speed round |
9 | AUX_CH_P | I | True Signal Auxiliary Channel |
10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
11 | H_GND | P | High Speed round |
12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
14 | NC | I | Reserved for LCD manufacturer’s use |
15 | LCD_GND | P | LCD logic and driver ground |
16 | LCD_GND | P | LCD logic and driver ground |
17 | HPD | O | HPD signal pin |
18 | LED-1 | P | Backlight ground |
19 | LED-2 | P | Backlight ground |
20 | LED-3 | P | Backlight ground |
21 | LED-4 | P | Backlight ground |
22 | BL_ ENABLE | I | Backlight on/off |
23 | BL_PWM_DIM | I | System PWM |
24 | SCL/NC | - | Reserved for LCD manufacturer’s use |
25 | SDA/NC | - | Reserved for LCD manufacturer’s use |
26 | BL_PWR | P | Backlight power |
27 | BL_PWR | P | Backlight power |
28 | BL_PWR | P | Backlight power |
29 | BL_PWR | P | Backlight power |
30 | NC | - | Reserved for LCD manufacturer’s use |
Optical Characteristics
Para meter | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) |
Horizontal | θL | - | 85 | - |
degree |
θ R | - | 85 | - | |||
Vertical | θT | - | 85 | - | ||
θB | - | 85 | - | |||
Contrast Ratio | Center | 600 | 800 | - | - | |
Response Time | Tr+Td | - | 30 | 35 | ms | |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.05 |
TBD |
Typ. +0.05 |
- | |
Red y | TBD | - | ||||
Green x | TBD | - | ||||
Green y | TBD | - | ||||
Blue x | TBD | - | ||||
Blue y | TBD | - | ||||
White x | (0.323) | - | ||||
White y | (0.379) | - | ||||
NTSC ratio | % | (72) | - | |||
Center Luminance of white |
YLI | 800 | 1000 | cd/m2 |
Backlight Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Supply voltage | VBL | 5 | 12.0 | 37 | V |
Power supply Current for Backlight |
ILED | 6 |
- |
25 | mA |
Power supply for Back light | PLED | 0.18 | - | 5.55 | W |
Modulated light signal voltage | VPWM H | 1.2 | - | 5.0 | V |
VPWM L | 0 | - | 0.6 | V | |
Brightness Control Duty Ratio | Duty | 1 | - | 100 | % |
Brightness Control frequency | fPWM | 100 | - | 1,600 | KHz |
LED-BL ON/OFF High voltage | VCNTH | 1.2 | 5.0 | V | |
LED-BL ON/OFF low voltage | VCNTL | 0 | - | 0.6 | V |
LED lifetime | - | 40,000 | 50,000 | - | h |
CTP Specification
Category | Parameter | Specification |
General | Structure | Cover Glass + DITO Glass |
Cover Lens Strengthening | Chemically Strengthened | |
Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
Light Transmission Rate | ≥85% | |
Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
Electrical | Interface | IIC / USB / UART |
Touch IC | IL12511 | |
Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
Host Resistance (SDA/SCL) | Configurable on Main-board | |
Environmental | Operating Conditions | Functional in fog/surface water |
Surface Properties | Surface Ink | Anti-UV |
Surface Treatment | Anti-Glare (Haze: 10%) | |
LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
Compliance | Material Standards | RoHS & Halogen-Free Compliant |

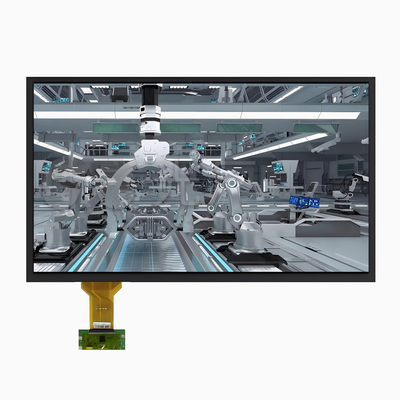

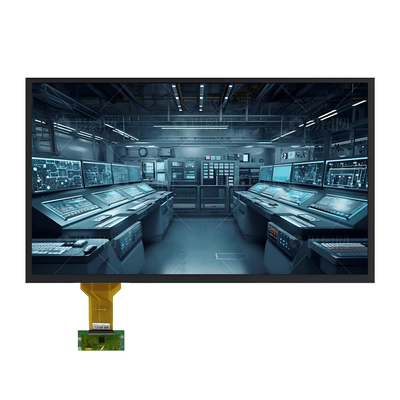

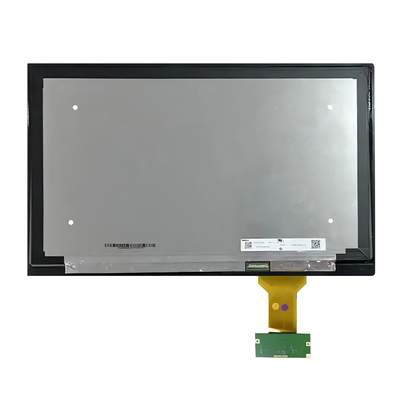

Product Image
