| Product: | 0.96 Inch OLED Display | Number Of Pixels: | 128x64 Pixels |
|---|---|---|---|
| Driver IC: | SSD1315 Or Equivalent | Display Mode: | Passive Matrix |
| Display Color: | White, Blue, Blue/Yellow Dual Color | Drive Duty: | 1/64 Duty |
| Panel Size: | 24.74 X 16.9 X 1.42 (mm) | Active Area: | 21.74 X 10.86 (mm) |
| Pixel Pitch: | 0.17 X 0.17 (mm) | Pixel Size: | 0.15 X 0.154 (mm) |
| Viewing Direction: | All Viewing Angles | Interface: | I2C, SPI Optional |
| Connection: | ZIF | Pin Number: | 30 Pins (Can Be Customized) |
| Operating Temp.: | -40C - +70C | Storage Temp.: | -40C - +85C |
| Life Time: | 50,000 Hours @60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | OLED Thin Display Panel,128x64 Dot OLED Display Panel,0.96 Inch OLED Display Panel |
||
0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C Interface Product Introduction
SFTOS096XY-7128AP is a dot matrix 128x64 COG graphic type micro OLED display module with a dimension of 0.96-inch diagonal. This 0.96 inch tiny OLED module panel size is 24.74 x 16.9 x 1.42 m. This 0.96" micro OLED display has built-in IC SSD1315, supports SPI and I2C interface and boasts high contrast ratio 10,000 : 1. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. The module operating temperature ranges from -40°C to +80°C; storage temperature covers from -40°C to +85℃. The available emitting colors are white, blue single color and blue/yellow dual colors.
Features and advantages
6. This 0.96-inch OLED display has a faster response time of "10 microseconds at +25 °C".
7.This 0.96 inch mono OLED product has high brightness and this product has a contrast ratio of up to 2000:1.
8. This low cost 0.96 inch OLED product has lower power consumption - reducing CO2 emissions.
9. This OLED 0.96-inch 128x64 screen is an ideal display for consumer and industrial applications such as audio, automotive control panels, medical devices, white goods, or home automation products, among others.
Product information
| Product: | 0.96 Inch OLED Display |
| Display Color: | White, Blue, Blue/Yellow Dual Color |
| Number Of Pixels: | 128x64 Pixels |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Drive Duty: | 1/64 Duty |
| Panel Size: | 24.74 X 16.9 X 1.42 (mm) |
| Active Area: | 21.74 X 10.86 (mm) |
| Pixel Pitch: | 0.17 X 0.17 (mm) |
| Pixel Size: | 0.15 X 0.154 (mm) |
| Interface: | I2C, SPI Optional |
| Pin Number: | 30 Pins (Can Be Customized) |
| Viewing Direction: | All Viewing Angles |
| Connection: | ZIF |
| Operating Temp.: | -40C - +70C |
| Storage Temp.: | -40C - +85C |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C Interface Product Drawing
![]()
Pin Definition
![]()
Absolute Maximum Rating
![]()
Optical Characteristics
![]()
* Optical measurement taken at VDD1 = 2.8V, VPP = 8.0V & 7.4V.Software configuration follows Section 4.4 Initialization.
Contents of Reliability Tests
![]()

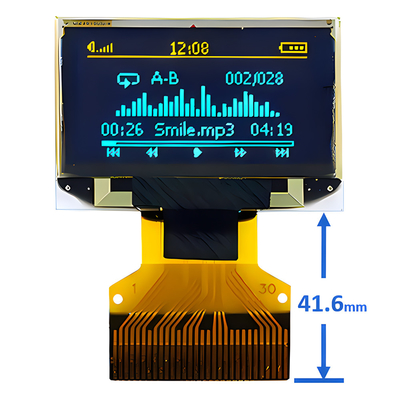

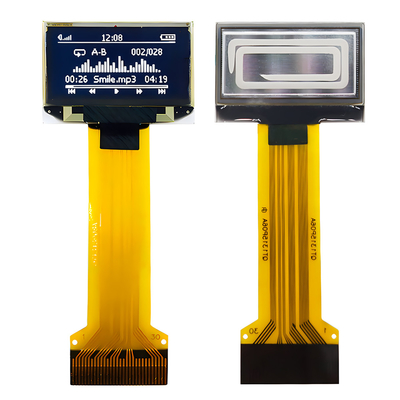

0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C Interface Product Image
![]()
![]()
![]()
