Monochrome PMOLED 2.42" Inch 128x64 White Blue Yellow Green Fonts SSD1309 I2C SPI 6800 8080 Interface
2.42" inch OLED Display, 2.42" OLED 128x64 Description
SAEF Technology SFOS242YZ-12864WBYG-01 is a 2.42" OLED display. It is made of 128x64 pixels with COG OLED structure. The SFOS242YZ-12864WBYG-01 2.42 inch OLED display is built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, IoT, etc.
The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Pin Definition:
- Power Supply
Pin5, VDD, Power Supply for Logic Circuit. This is a voltage supply pin. It must be connected to external source.
Pin3, VSS, Ground of Logic Circuit. This is a ground pin. It also acts as a reference for the logic pins. It must be connected to external ground.
Pin23, VCC, Power Supply for OEL Panel. This is the most positive voltage supply pin of the chip. It must be supplied externally.
Pin2, VLESS, Ground of Analog Circuit. This is an analog ground pin. It should be connected to VSS externally.
- Driver
Pin21, IREF, Current Reference for Brightness Adjustment. This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current at 10µA.
Pin22, VCOMH, Voltage Output High Level for COM Signal. This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
- Interface
Pin6, Pin7, BS1/BS2, Communicating Protocol Select. These pins are MCU interface selection input. See the following table:
I2C: BS1=1, BS2=0
4 wire serial: BS1=0, BS2=0
8bit 68xx Parallel: BS1=0, BS2=1
8bit 80xx Parallel: BS1=1, BS2=1
Pin9, RES#, Power Reset for Controller and Driver. This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
Pin8, CS#, Chip Select This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
Pin10, D/C#, Data/Command Control. This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 will be interpreted as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. When the pin is pulled high and serial interface mode is selected, the data at SDIN will be interpreted as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams.
Pin12, E/RD#, Read/Write Enable or Read This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low. When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low. When serial or I2C mode is selected, this pin must be connected to VSS.
Pin11, R/W#, Read/Write Select or Write. This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode. When 80XX interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low. When serial or I2C mode is selected, this pin must be connected to VSS.
Pin13~Pin20, D0~D7, D0 will be the serial clock input SCLK. When I2C mode is selected, D2, D1 should be tired together and serve as SDAOUT, SDAIN in application and D0 is the serial clock input, SCL. Unused pins must be connected to VSS except for D2 in serial mode.
-Reverse
Pin4, NC, Reserved Pin. The N.C. pin between function pins is reserved for compatible and flexible design.
Pin1, Pin24, N.C. (GND), Reserved Pin (Supporting Pin). The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground as the ESD protection circuit. Unvision technolog
| Product: |
2.42 Inch OLED |
Resolution: |
128 X 64 Dots Resolution |
| Glass Type: |
OLED (Organic Light Emitting Diode) |
Optics: |
All Viewing Angles
(80/80/80/80)
|
| Interface: |
I2C, SPI, 6800, 8080 Optional |
Outline Dim.: |
60.50 × 73.00 × 2.00 mm
(including Polarizer)
|
| Active Area: |
55.01 × 27.49 mm |
Pixel Pitch: |
0.43 × 0.43 mm |
| Operating Temp: |
-40°C To +70°C |
Storage Temp.: |
-40°C To +85°C |
| Pin Number: |
24 Pins |
Controller: |
SSD1309 Or Equivalent |
| Drive Mode: |
1/64 Duty Cycle |
Connector: |
COG+FPC |
| Contrast Ratio: |
2000 : 1
(Dark Room Contrast )
|
Compliance: |
REACH & RoHS Compliant |
SAEF Technology's graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED 128x128, and 256x64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
SAEF offers a wide range of OLED display modules in sizes from 0.49" to 5.5" OLED, such as 0.49" micro OLED Display, 0.66" mini OLED Display, 0.69" OLED, 0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED Display, 5.5" OLED Display, and custom design solutions.
2.42" inch OLED Display, 2.42" OLED 128x64 Drawing

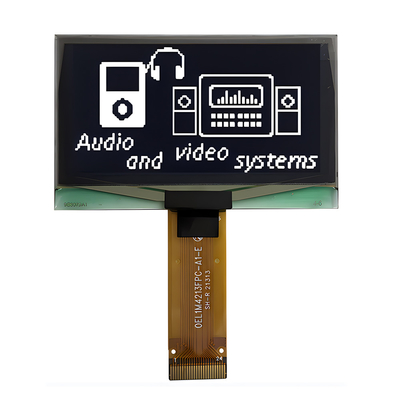

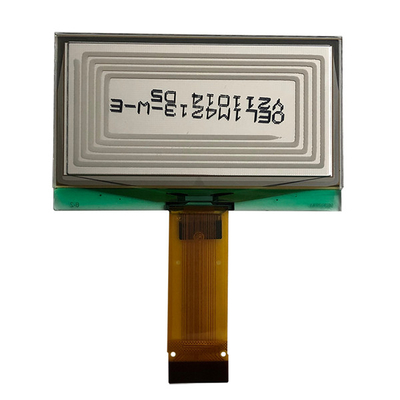

2.42" inch OLED Display, 2.42" OLED 128x64 Real Product Image
