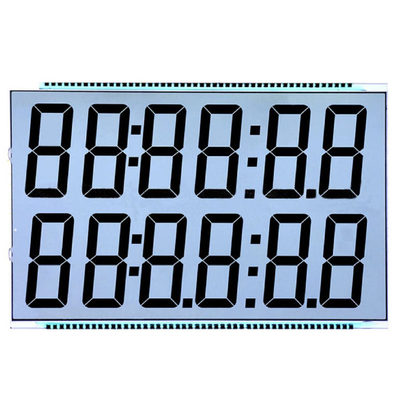

Product Details:
|
Display Type: | TN/Transmissive Positive | Viewing Direction: | 6:00 O'clock |
---|---|---|---|
Operating Voltage: | 4.8V–5.2V (Typ. 5.0V) | Operating Temp.: | -30°C To +80°C |
Storage Temp.: | -40°C To +90°C | Duty/Bias: | 1/4 Duty, 1/3 Bias |
Size: | ~7 Inch | Contrast Ratio: | Min. 2:1 (Typ. 5:1) |
Response Time: | Rise ≤100ms / Fall ≤150ms | Current Consumption: | Typ. 3.0μA |
Customization: | Fully Customizable Segments/Graphics | MOQ: | Sample Support & Volume Production |
Lifespan: | 50,000 Hours | Compliance: | RoHS/REACH |
Engineer-Backed Custom LCD Solutions for Harsh Environments
The JY7248TP-FM is a purpose-built 7.0-inch TN segment LCD display engineered for reliability in demanding industrial, automotive, and medical applications. With an extended operating temperature range (-30°C to +80°C) and ultra-low power consumption (3μA typical), it delivers consistent performance in extreme conditions where standard displays fail.
Key Features
High Visibility: 6:00 o'clock viewing direction optimizes readability in vertical panels.
Robust Design: Survives thermal shock (-40°C to +90°C storage) and humidity (48hrs @60°C/90%RH tested).
Energy Efficient: Ideal for battery-powered devices with 3μA typical current draw.
Rapid Prototyping: Fully customizable segments, icons, and FPC layouts – samples shipped in 2 weeks.
Customization
Every JY7248TP-FM is tailored to your specifications:
Design Collaboration: Submit your digit layout/icon concept for DFM analysis.
Prototype Validation: Test samples under real-world conditions.
Volume Manufacturing: ISO-certified production with 50,000-hour lifespan guarantee.
Request Your Custom LCD Quote Today – Send your schematic to cologne_ke@saef.com.cn for a free technical review. Global shipping from ISO 9001:2015 certified facility.
Absolute Maximum Rating
NO. | Item | Rating | Unit | Conditions |
1 |
Maximum AC applied voltage |
10 | V | 1 hour |
2 |
Limited DC applied voltage |
30 | Mv | 100hours |
3 |
Operating Temperature Range |
-30+80 | ℃ |
No condensation |
4 |
Storage Temperature Range |
-40+90 | ℃ |
No condensation |
Electro-Optic Characteristics
NO |
ITEM |
Symbol |
TEMP(℃) |
Rating |
Unit |
||||
Min |
Typ |
Max |
|||||||
1 |
Operating Voltage |
Vop | 25 | 4.8 | 5.0 | 5.2 | V | ||
2 |
Response Time |
Rise Time |
Tr | 25 | 100 | ms | |||
Fall Time |
Tf | 25 | 150 | ||||||
3 |
Operating Frequency |
fF | 25 | 75 | Hz | ||||
4 |
Contrast Rate |
Cr | 25 | 2 | 5 | ||||
5 |
Viewing Direction |
6:00 o’clock | |||||||
6 |
Viewing Angle Cr≥2 |
12H =90° | θup | 25 | 15 | Deg | |||
6H f =270° | θdown | 40 | |||||||
3H f =0° | θleft | 30 | |||||||
9H f =180° | θright | 30 | |||||||
7 |
Current Consumption |
Is | 25 | 3.0 | μA |
